1. บทนำ
This manual provides instructions for the safe and effective use of your new Generic 27V Vacuum Charger. This charger is designed as a replacement power adapter for specific cordless vacuum cleaner models. Please read this manual thoroughly before use and retain it for future reference.

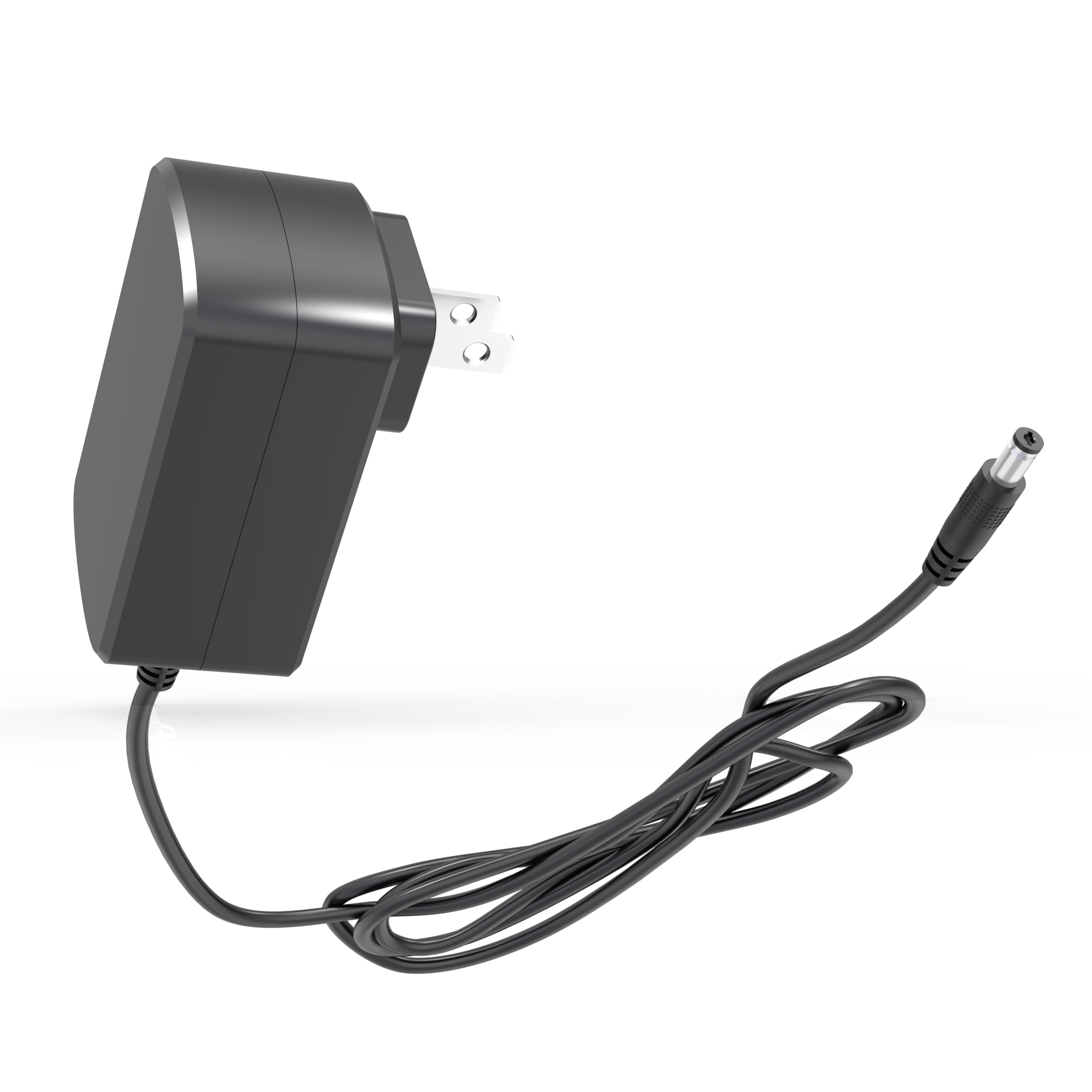

Image 1.1: The Generic 27V Vacuum Charger. This image displays the compact design of the charger unit with its power cord.
2. ข้อมูลด้านความปลอดภัยที่สำคัญ
- Use this charger only with compatible devices as specified in this manual. Using it with incompatible devices may cause damage or injury.
- Do not expose the charger to high temperatures, humidity, or direct sunlight.
- อย่าโยนเข้าไฟหรือน้ำ
- เก็บให้พ้นจากมือเด็ก
- Inspect the charger and cable for any damage before each use. Do not use if damaged.
- ถอดปลั๊กเครื่องชาร์จออกจากเต้าเสียบไฟฟ้าเมื่อไม่ได้ใช้งานหรือในช่วงที่มีพายุฝนฟ้าคะนอง
Image 2.1: Safety Protection Features. This graphic illustrates the built-in intelligent chip protections, including overcurrent, overvoltage, overcharge, overheating, short circuit, and overloading protection.
3. สินค้าหมดview และมีอะไรอยู่ในกล่องบ้าง
The package contains one AC/DC adapter. This charger features a durable construction designed for reliable performance.
3.1 Adapter Specifications
Image 3.1: Adapter Dimensions and Cable Length. This image shows the physical dimensions of the adapter (2.85 inches length, 1.77 inches width) and the 6-foot cable length with a 1.4-inch connector tip.
3.2 Cable Construction
Image 3.2: Premium Cable Construction. This graphic highlights the internal structure of the charging cable, featuring a flexible PVC jacket and copper wire for durability and efficient power transfer.
4. ความเข้ากันได้และการตั้งค่า
This charger is specifically designed for certain cordless vacuum cleaner models. Verify your vacuum's battery and original charger specifications before use.
4.1 รุ่นที่เข้ากันได้
- HOMPANY H18 cordless vacuum cleaner with 22.2V Li-ion battery
- Powerffy N10 cordless vacuum cleaner with 22.2V Li-ion battery
- RoneAir V200 cordless vacuum cleaner with 22.2V Li-ion battery
4.2 Incompatible Models
This charger is NOT compatible with:
- HOMPANY SmartVac series cordless vacuums with 25.9V / 29.6V battery & 31V / 36V charger
- Powerffy V8 A17 Hero 10 cordless vacuums with 25.9V / 29.6V battery & 31V / 36V charger
4.3 Verifying Power Specifications
Always check the power specifications on your original charger label to ensure compatibility. This charger provides an output of 27V (compatible with 26.5V, 26V).
Image 4.1: Compatible Power Output Specifications. This image details the compatible output voltages (27V, 26.5V, 26V at 0.5A) and highlights incompatible voltages (30/31V, 36V, 19V).
4.4 Verifying Battery Type
This charger is only compatible with cordless vacuums equipped with a 21.6V / 22.2V 6-cell Li-ion battery. It is NOT for vacuums with 25.2V / 25.9V / 29.6V Li-ion batteries. Check the battery details on your vacuum's battery label.
Image 4.2: Compatible Battery Type. This graphic clarifies that the charger is compatible only with 21.6V / 22.2V 6-cell Li-ion batteries and not with higher voltage batteries. It also shows an example of a battery label to check details.
4.5 ขั้นตอนการตั้งค่า
- Ensure your vacuum cleaner is turned off.
- Connect the charger's output plug into the charging port of your vacuum cleaner.
- Plug the charger's AC input plug into a standard 100-240V 50/60Hz wall outlet.
- The vacuum cleaner should indicate that it is charging (refer to your vacuum's manual for specific charging indicators).
5. คู่มือการใช้งาน
Once connected, the charger will begin to supply power to your vacuum's battery. Charging times may vary depending on the battery's current charge level and capacity. Always allow the battery to fully charge for optimal performance and battery longevity.
Image 5.1: Cordless Vacuum Cleaner Charging. This image shows a cordless vacuum cleaner connected to a power outlet, illustrating the typical charging setup.
6. Maintenance and Tips
- รักษาที่ชาร์จให้สะอาดและปราศจากฝุ่นและเศษซาก
- เก็บที่ชาร์จไว้ในที่เย็นและแห้งเมื่อไม่ได้ใช้งาน
- Avoid bending or crimping the power cord excessively to prevent internal damage.
- Rechargeable batteries typically last 1-3 years. Failure to hold a charge after this period often indicates natural battery depletion, not a charger malfunction.
- For accurate diagnosis of charging issues, consider using a voltage tester to determine if the issue is related to battery aging or a device failure.
7 การแก้ไขปัญหา
7.1 ที่ชาร์จใช้งานไม่ได้
- ตรวจสอบให้แน่ใจว่าได้เสียบที่ชาร์จเข้ากับเต้ารับที่ผนังและเครื่องดูดฝุ่นอย่างแน่นหนาแล้ว
- Check the wall outlet by plugging in another device to confirm it has power.
- Inspect the charger cable and connector for any visible damage. If damaged, discontinue use.
7.2 Vacuum Not Charging
- Verify that the charger's output voltage and the vacuum's battery voltage are compatible (27V charger for 22.2V Li-ion battery). Refer to Section 4.
- If the battery is old (1-3 years), it may have reached its end of life and require replacement.
- Consult your vacuum cleaner's manual for specific charging indicators and troubleshooting steps related to the vacuum itself.
8. ข้อมูลจำเพาะ
| คุณสมบัติ | ข้อมูลจำเพาะ |
|---|---|
| อินพุต Voltage | แรงดันไฟฟ้า 100-240 โวลต์ 50/60 เฮิรตซ์ |
| ปริมาณการส่งออกtage | 27V (Compatible with 26.5V, 26V) |
| กระแสไฟขาออก | 0.5เอ |
| ความยาวสายไฟ | 5.9 ฟุต (ประมาณ 1.8 เมตร) |
| ขนาดสินค้า | 2.8 x 1.8 x 2 นิ้ว (7.1 x 4.6 x 5.1 ซม.) |
| น้ำหนักสินค้า | 3.52 ออนซ์ (ประมาณ 100 กรัม) |
| สี | สีดำ |
9. การรับประกันและการสนับสนุน
For any questions or support regarding this product, please contact the seller or manufacturer through your purchase platform. Please retain your proof of purchase for warranty claims, if applicable.
