Wokyo LH-100 Electric Scooter LCD Display Throttle User Manual

การแนะนำ

This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your Wokyo LH-100 Electric Scooter LCD Display Throttle. Please read this manual carefully before use to ensure proper function, safety, and to maximize the lifespan of your device.

สินค้าเกินview

The Wokyo LH-100 Electric Scooter LCD Display Throttle is a versatile 2-in-1 unit that seamlessly integrates throttle control with an intuitive LCD display. It is specifically designed for electric scooters utilizing the LH-100 system, providing users with clear operational data and convenient speed management.

Figure 1: The Wokyo LH-100 Electric Scooter LCD Display Throttle, showcasing its compact design and integrated thumb control.

คุณสมบัติหลัก:

• ฟังก์ชั่น 2-in-1: Combines throttle control and LCD display into a single unit, simplifying scooter operation and monitoring.
• อินเทอร์เฟซกันน้ำ: Equipped with a robust waterproof plug, ensuring reliable performance even in rainy conditions.
• โครงสร้างทนทาน: Manufactured from high-quality ABS material, providing excellent wear resistance and a long service life.
• จอแสดงผล LCD ที่ชัดเจน: Features a bright and clear LCD screen with easy-to-read numbers and vibrant colors for quick data interpretation.
• ติดตั้งง่าย: Designed for straightforward setup, allowing for quick and hassle-free mounting and connection.

ข้อมูลจำเพาะ

การติดตั้งและการตั้งค่า

Before beginning the installation process, it is crucial to confirm that your electric scooter operates on the LH-100 system and possesses a compatible 6-pin connection interface. Incompatibility may lead to improper function or damage to the device.

ขั้นตอนการติดตั้ง:

1. เตรียมแฮนด์จักรยาน: Select an appropriate mounting position on your scooter's handlebar. This location should allow for comfortable thumb operation and sufficient space for the unit.
2. Mount the Display Throttle:


   รูปที่ 2: ระยะใกล้ view of the fixing screws used to secure the display throttle to the handlebar.

   Position the Wokyo LH-100 unit on the handlebar. Utilize the provided fixing screws to firmly secure the meter. Ensure the unit is tight enough to prevent any rotation during use, but avoid overtightening to prevent damage.

3. การเชื่อมต่อสายไฟ:

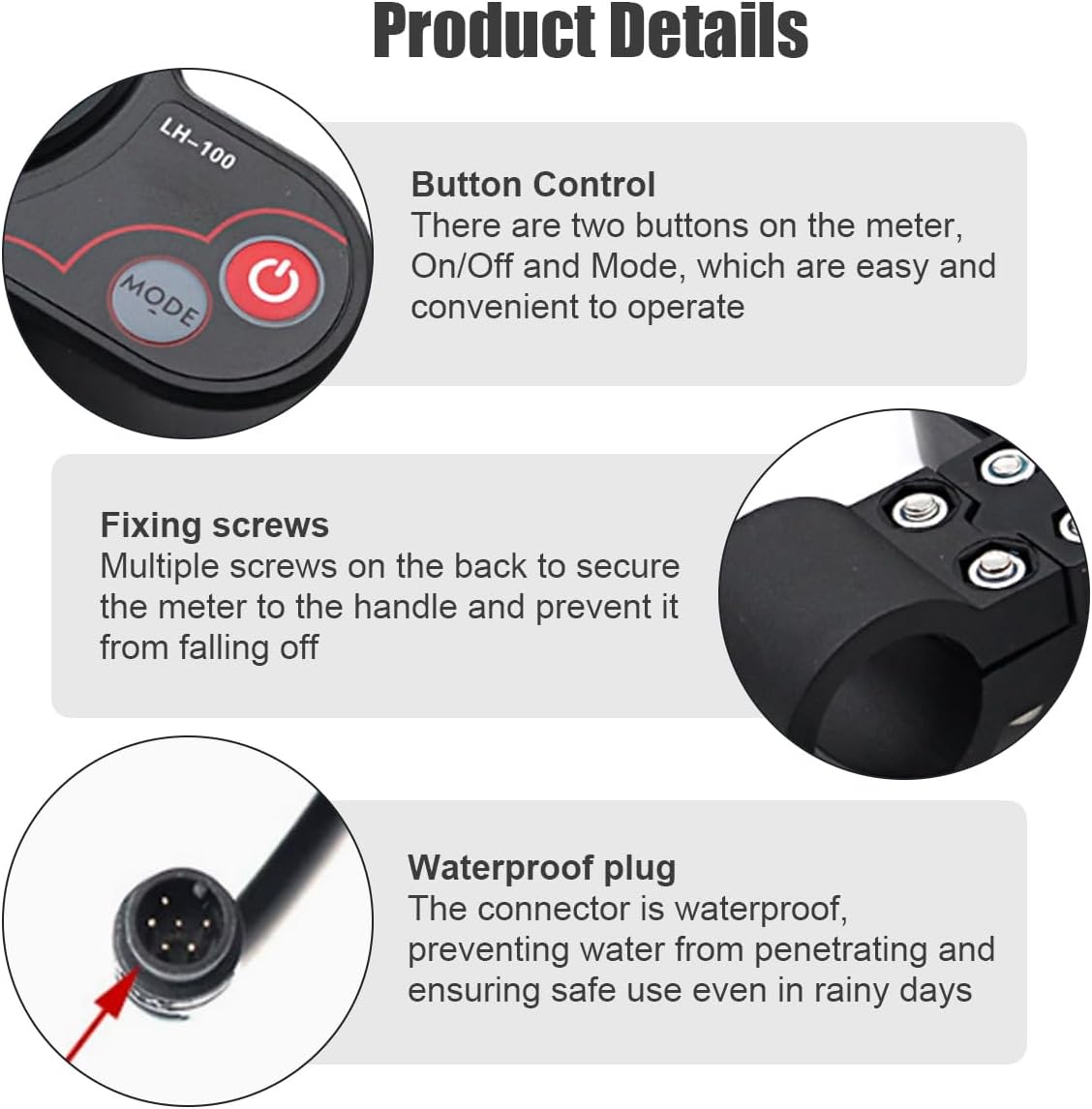

   Figure 3: The waterproof 6-pin connector, designed for a secure and moisture-resistant connection.

   Locate the 6-pin communication interface cable from your scooter. Carefully align the pins and securely connect it to the waterproof plug of the Wokyo LH-100 display throttle. A tight connection is essential to prevent water ingress and ensure proper communication.
4. ตรวจสอบความเข้ากันได้:


   Figure 4: Important warning label emphasizing the exclusive compatibility with the LH-100 system.

   Reconfirm that your scooter's system is indeed LH-100. This product is designed to function exclusively with the LH-100 system. Use with an incompatible system may result in damage to the unit or the scooter, and will void any warranty.

5. การทดสอบการเปิดเครื่อง: After all connections are made, power on your electric scooter. The LCD display should illuminate and begin showing operational information, indicating a successful installation.

คำแนะนำการใช้งาน

The Wokyo LH-100 display throttle is designed with user-friendly controls for intuitive and efficient operation of your electric scooter.

Figure 5: The Wokyo LH-100 display throttle shown in its operational context on an electric scooter.

ปุ่มฟังก์ชั่น:

• ปุ่มเพาเวอร์ (⏻): Press and hold this button to power the display on or off. A brief press may allow you to cycle through various display modes or settings, depending on the specific firmware of your scooter.
• ปุ่มโหมด: Press this button to navigate through different display parameters, such as current speed, battery level, total odometer, and trip distance. A long press may activate the settings menu; refer to your scooter's main user manual for detailed menu navigation instructions.

ควบคุมคันเร่ง:

The thumb lever, located on the right side of the unit, is used to control the scooter's acceleration. Apply gentle pressure downwards with your thumb to increase speed. Releasing the lever will cause the scooter to decelerate.

การซ่อมบำรุง

Consistent and proper maintenance is essential to ensure the longevity, optimal performance, and reliability of your Wokyo LH-100 display throttle.

• การทำความสะอาด: To clean the display screen and the unit's housing, use a soft, slightly damp cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the surface. Always ensure the unit is powered off before cleaning.
• ตรวจสอบการเชื่อมต่อ: Periodically inspect the 6-pin connector for any signs of wear, such as fraying or corrosion, and ensure it remains securely plugged into the scooter's wiring harness. A loose connection can lead to intermittent functionality.
• ความต้านทานน้ำ: While the unit is designed to be waterproof, it is not intended for submersion. After riding in wet conditions or rain, it is advisable to wipe the unit dry to prevent water spots or mineral buildup, which could affect visibility or material integrity over time.
• ความแน่นของสกรู: From time to time, check the tightness of the mounting screws that secure the unit to the handlebar. This ensures the display throttle remains firmly in place during operation and prevents accidental movement.

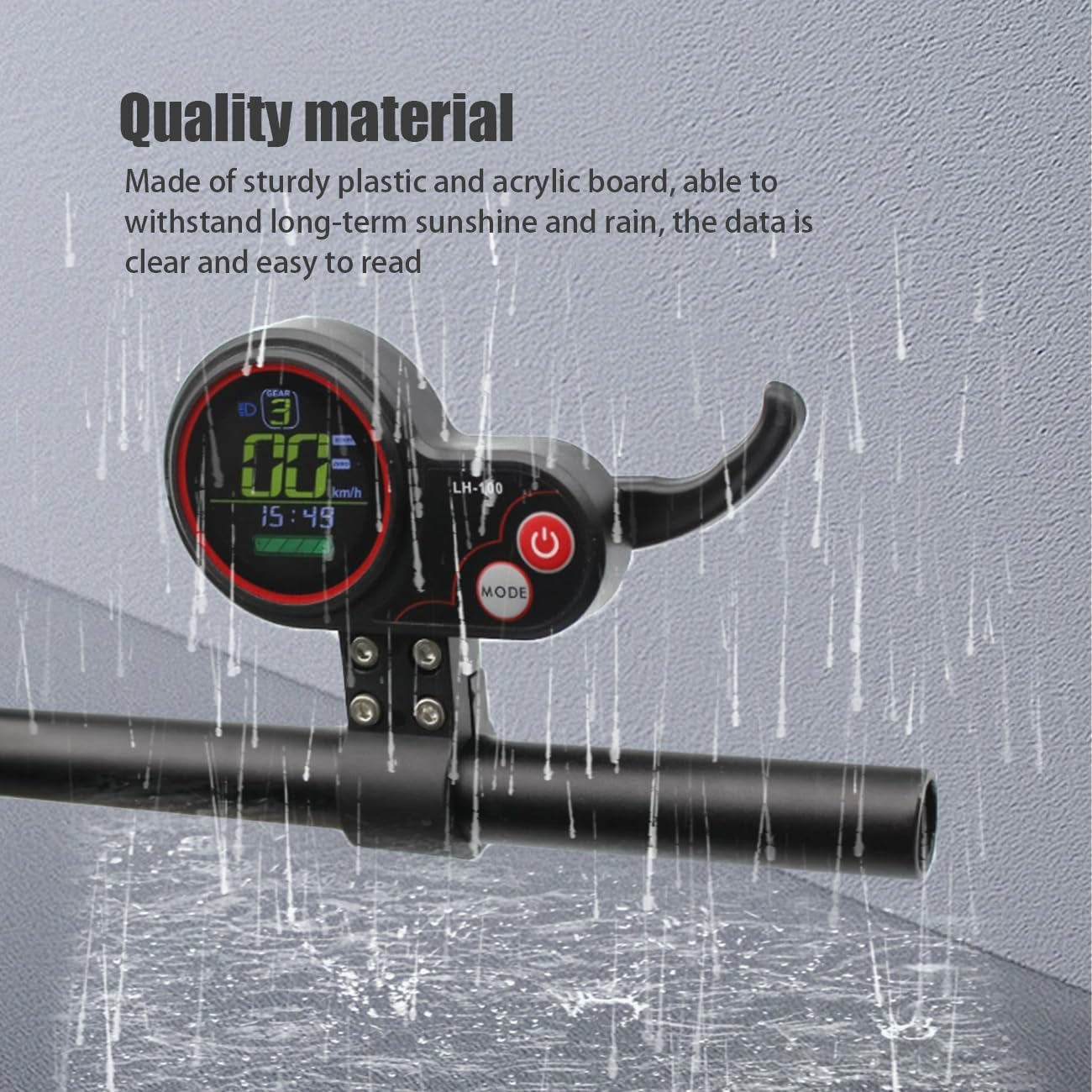

Figure 6: The display throttle is engineered to withstand exposure to rain, highlighting its robust design.

Back Charging Port (if applicable):

รูปที่ 7: ด้านหลัง view of the display throttle, illustrating the covered port designed to protect against moisture.

Certain models of the display throttle may include a covered port on the back. This port is primarily designed to prevent rainwater from entering the unit. Depending on your scooter's specific configuration, this port might also be used for connecting external cables, potentially for charging mobile devices or other accessories. Always ensure the cover is securely closed when the port is not in active use to maintain its waterproof integrity.

การแก้ไขปัญหา

If you encounter any issues with your Wokyo LH-100 display throttle, please refer to the following table for common problems and their potential solutions:

หากปัญหายังคงมีอยู่หลังจากพยายามแก้ไขปัญหาเหล่านี้แล้ว โปรดติดต่อฝ่ายสนับสนุนลูกค้าเพื่อขอความช่วยเหลือเพิ่มเติม

การรับประกันและการสนับสนุน

ข้อมูลการรับประกัน:

The Wokyo LH-100 Electric Scooter LCD Display Throttle is covered by a manufacturer's warranty. For precise details regarding the warranty terms and duration, please refer to the product packaging or your original purchase receipt. Typically, the warranty covers defects in materials and workmanship under normal use conditions.

หมายเหตุสำคัญ: The warranty may be rendered void by improper installation, unauthorized modifications, or any damage resulting from misuse, neglect, or accidental impact.

การสนับสนุนลูกค้า:

For technical assistance, to initiate a warranty claim, or for any other product-related inquiries, please contact Wokyo customer support. You can typically reach support through the retailer from whom you purchased the product, or by visiting the official Wokyo store on Amazon:

Visit the Wokyo Store on Amazon

When contacting support, please be prepared to provide your product model number (LH-100) and details of your purchase to facilitate a quicker resolution.
