การแนะนำ
This manual provides essential instructions for the installation, operation, maintenance, and troubleshooting of the Generic 6870C-0805A T-CON (Timing Controller) Board. This board is designed as a replacement component for specific LG 65-inch UHD television models. Please read this manual thoroughly before attempting any installation or repair to ensure proper function and safety.
The T-CON board is a critical component responsible for processing video signals from the main board and distributing them to the display panel, ensuring correct image timing and data transfer.
ข้อควรระวังเพื่อความปลอดภัย
- Always disconnect the television from the power source before beginning any repair or installation.
- Wear anti-static gloves or use an anti-static wrist strap to prevent electrostatic discharge (ESD), which can damage sensitive electronic components.
- Handle the T-CON board by its edges to avoid touching components or connectors.
- Ensure you have the correct tools for the job, including appropriate screwdrivers and prying tools.
- หากคุณไม่แน่ใจเกี่ยวกับขั้นตอนใด ๆ โปรดปรึกษาช่างเทคนิคที่มีคุณสมบัติ
การติดตั้งและการตั้งค่า
This T-CON board is intended as a direct replacement part. Verify that the model number on your existing board matches 6870C-0805A before proceeding.
- การตระเตรียม: Disconnect the television from all power sources and external devices. Place the TV face down on a soft, clean surface to protect the screen.
- Access the T-CON Board: Carefully remove the back cover of the television. The T-CON board is typically located at the top or bottom center of the display panel, often under a metal shield.
- ถอดสายเคเบิล: Gently disconnect the ribbon cables (LVDS cables) connecting the T-CON board to the main board and the display panel. Note their orientation for reinstallation.
- ลบบอร์ดเก่า: Unscrew any retaining screws holding the old T-CON board in place and carefully remove it.
- ติดตั้งบอร์ดใหม่: Position the new 6870C-0805A T-CON board in the same location. Secure it with the screws removed earlier.
- เชื่อมต่อสายเคเบิล: Reconnect all ribbon cables, ensuring they are fully seated and correctly oriented. Improper connection can cause display issues.
- การทดสอบเบื้องต้น: Before reattaching the back cover, temporarily connect the TV to power and turn it on to verify basic functionality. If the display appears normal, proceed to the next step.
- ประกอบกลับเข้าที่: Disconnect power again, then reattach the back cover of the television.
ภาพที่ 1: สูงสุด view of the 6870C-0805A T-CON board, illustrating the layout of the main LG Display chip, capacitors, resistors, and connectors. This view helps in identifying the board and its primary components during installation.

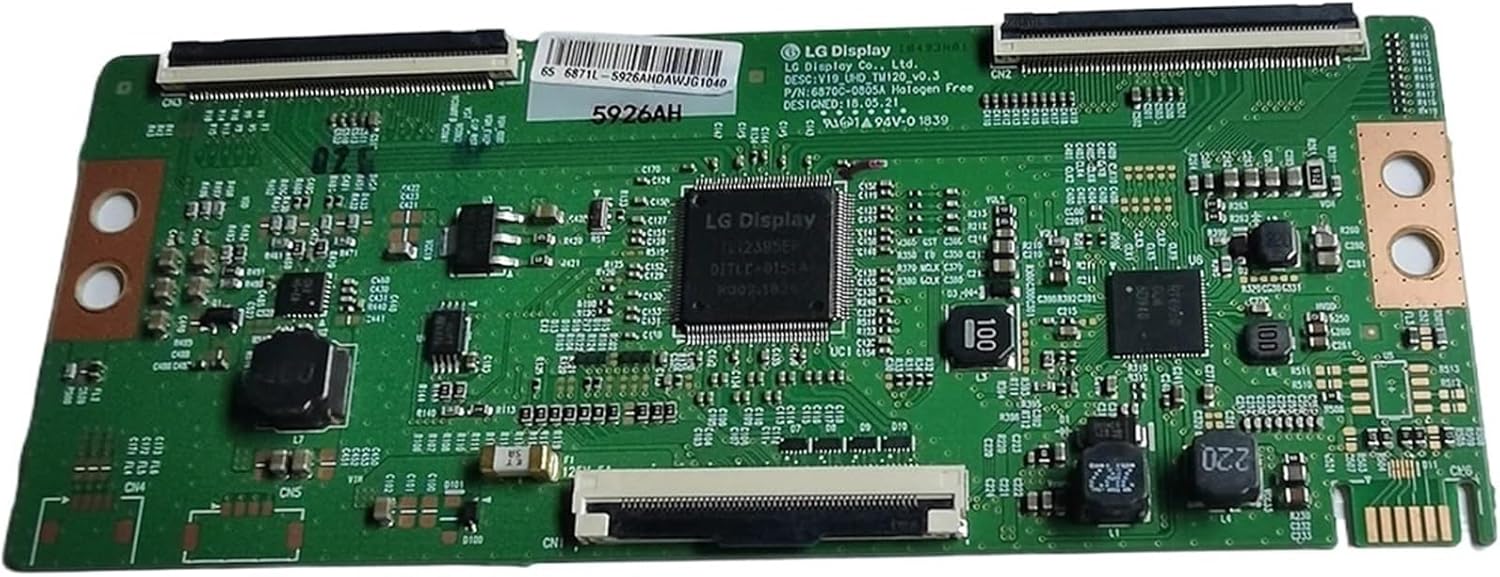

ภาพที่ 2: An angled perspective of the 6870C-0805A T-CON board, providing a clearer view of the various connectors for ribbon cables and the general arrangement of surface-mounted components. This angle can assist in proper cable alignment.
ภาพที่ 3: A detailed close-up of a section of the 6870C-0805A T-CON board, clearly showing the printed model number (P/N: 6870C-0805A) and other identifying marks. This image is crucial for verifying the correct board model before installation.
ภาพที่ 4: ภาพระยะใกล้ view centered on the main LG Display integrated circuit (IC) on the 6870C-0805A T-CON board. This IC is the primary processing unit for the display signals.

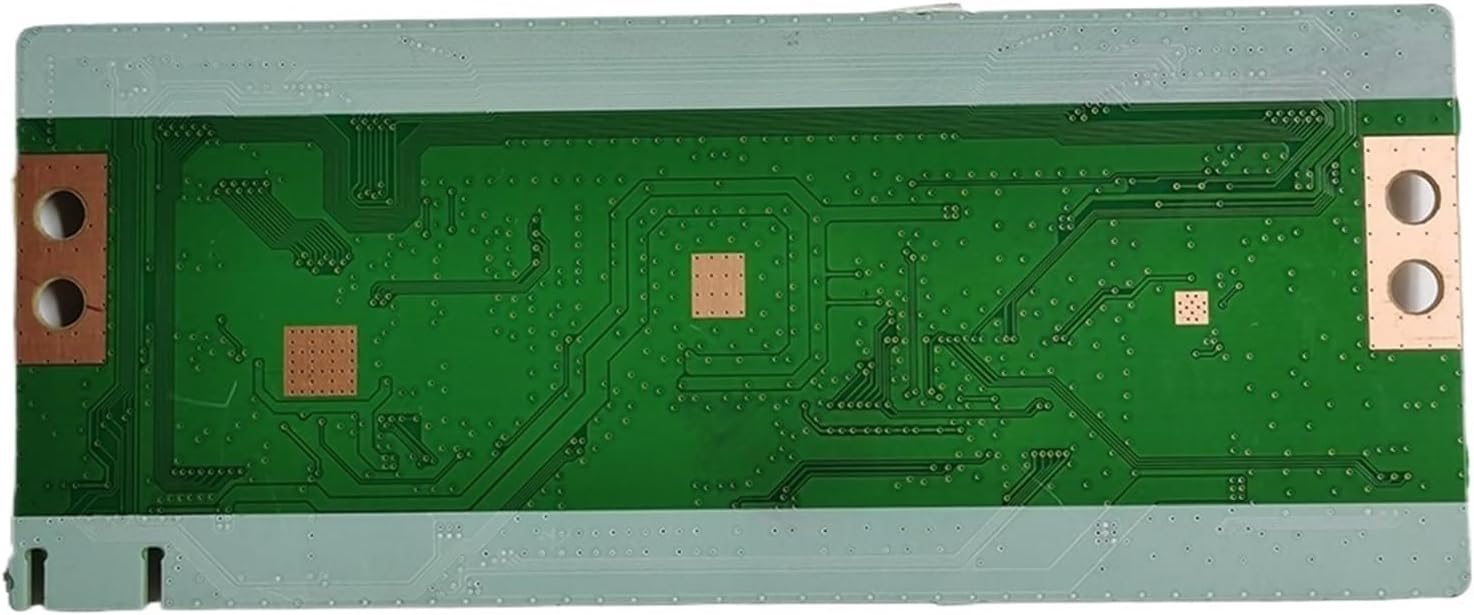

ภาพที่ 5: ส่วนล่าง view of the 6870C-0805A T-CON board, revealing the solder points, electrical traces, and mounting holes. This perspective is useful for understanding the board's physical dimensions and how it interfaces with the TV chassis.
การตรวจสอบการดำเนินงาน
After successful installation, perform the following checks to ensure the T-CON board is functioning correctly:
- เปิดเครื่อง: Connect the television to power and turn it on.
- ตรวจสอบการแสดงผล: Observe the screen for a clear, stable image. Look for any flickering, lines, color distortions, or areas of no display.
- Input Test: Connect a known working video source (e.g., a Blu-ray player, streaming device) to an input and verify that the image is displayed correctly.
- ตรวจสอบเสียง: Ensure audio is also functioning, as some display issues can indirectly affect sound synchronization.
If the display is clear and stable, the T-CON board is likely installed and operating correctly.
การซ่อมบำรุง
The T-CON board itself requires minimal maintenance once installed. However, general care for your television can prolong the life of all its components:
- การป้องกันฝุ่น: Keep the television's ventilation openings clear of dust and debris to ensure proper airflow and prevent overheating.
- สภาพแวดล้อม : Operate the television in a stable environment, avoiding extreme temperatures or high humidity.
- การทำความสะอาดแบบมืออาชีพ: If internal cleaning is required, it is recommended to consult a professional technician to avoid damaging sensitive components.
การแก้ไขปัญหา
If you encounter issues after installing the T-CON board, consider the following troubleshooting steps:
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| No display or black screen | Loose or improperly connected ribbon cables; faulty T-CON board; faulty main board. |
|
| Flickering, lines, or distorted image | Damaged ribbon cables; T-CON board issue; display panel issue. |
|
| สีไม่ถูกต้องหรือภาพซีดจาง | T-CON board issue; main board issue; display panel issue. |
|
หากขั้นตอนเหล่านี้ไม่สามารถแก้ไขปัญหาได้ อาจจำเป็นต้องขอความช่วยเหลือจากผู้เชี่ยวชาญ
ข้อมูลจำเพาะ
| คุณสมบัติ | รายละเอียด |
|---|---|
| หมายเลขรุ่น | 6870C-0805A V19_UHD_TM120_V0.3 |
| ความเข้ากันได้ | LG 65-inch UHD TVs (verify existing board model) |
| หมายเลขชิ้นส่วน | 6870C-0805A |
| น้ำหนักสินค้า | 1.76 ปอนด์ |
| ขนาดแพ็คเกจ | 7.87 x 7.87 x 3.94 นิ้ว |
| ผู้ผลิต | ทั่วไป |
การรับประกันและการสนับสนุน
Specific warranty information for this replacement part is not provided in this manual. Please refer to the original purchase documentation or contact the seller directly for details regarding warranty coverage and technical support.
For further assistance or inquiries, please reach out to the vendor from whom the product was purchased.
