LiftMaster K41-0219-000 Postal Lock Switch Instruction Manual

1. บทนำ

This manual provides essential information for the proper installation, operation, and maintenance of the LiftMaster K41-0219-000 Postal Lock Switch. This component is designed as a replacement kit for use with various LiftMaster Smart Video Intercom Medium and Large Access Control Systems, specifically models CAPXM, CAPXLV, and CAPXLV2. It enables postal service personnel to access the property via a dedicated lock mechanism integrated into the access control system.

Please read this manual thoroughly before proceeding with installation or use to ensure safe and correct functionality.

2. ข้อมูลด้านความปลอดภัย

คำเตือน: Improper installation or use of this product can result in serious injury or damage to property. Always adhere to the following safety guidelines:

• แนะนำการติดตั้งอย่างมืออาชีพ: Installation of this postal lock switch should only be performed by qualified personnel or a certified LiftMaster technician.
• ตัดการเชื่อมต่อไฟฟ้า: Always disconnect power to the access control system before performing any installation, maintenance, or repair procedures.
• Refer to System Manual: This postal lock switch is a component of a larger access control system. Always refer to the primary installation and safety manuals for your specific LiftMaster CAPXM, CAPXLV, or CAPXLV2 system for comprehensive instructions and warnings.
• ความปลอดภัยทางไฟฟ้า: Ensure all wiring is performed according to local electrical codes and manufacturer specifications.
• ให้ชัดเจน: During operation, keep hands and other objects clear of moving parts within the access control system.

3. เนื้อหาบรรจุภัณฑ์

ตรวจสอบว่ามีสินค้าทั้งหมดที่ระบุไว้ด้านล่างอยู่ในแพ็คเกจของคุณ:

• LiftMaster K41-0219-000 Postal Lock Switch (1 unit)

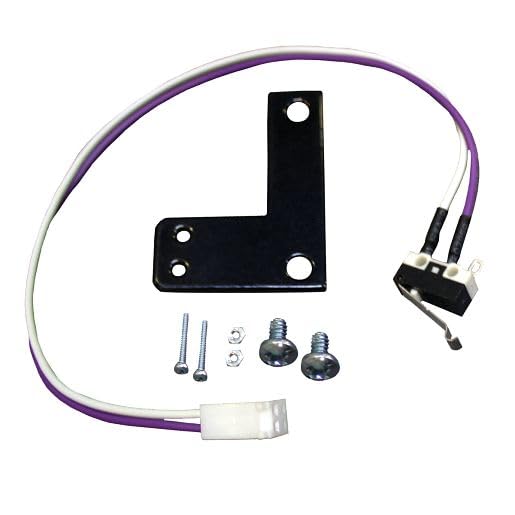

Image 1: LiftMaster K41-0219-000 Postal Lock Switch. This image shows the compact design of the postal lock switch, typically a small, rectangular electronic component with connection points.

4. การตั้งค่าและการติดตั้ง

The K41-0219-000 Postal Lock Switch is a replacement component for specific LiftMaster access control systems. Installation involves integrating this switch into the existing system's wiring and mounting points.

1. การตรวจสอบความเข้ากันได้: Before installation, confirm that your access control system is one of the compatible models: CAPXM, CAPXLV, or CAPXLV2. Refer to your system's documentation for verification.
2. การตัดการเชื่อมต่อไฟฟ้า: Ensure that all power to the LiftMaster access control system is completely disconnected at the circuit breaker or main power source before beginning any work.
3. Consult System Manual: Refer to the detailed installation manual for your specific LiftMaster CAPXM, CAPXLV, or CAPXLV2 access control system. This manual will provide precise instructions for locating the existing postal lock switch (if replacing) and the correct wiring and mounting procedures for the K41-0219-000 replacement.
4. การเดินสายไฟ: Carefully follow the wiring diagrams provided in your main system's installation manual. Ensure all connections are secure and correctly polarized.
5. การติดตั้ง: Secure the postal lock switch in its designated location within the access control system enclosure using appropriate fasteners.
6. Power Restoration & Testing: Once installation is complete and all connections are verified, restore power to the system. Test the functionality of the postal lock switch according to the procedures outlined in your main system manual to ensure proper operation.

บันทึก: This component is designed for integration into complex access control systems. If you are unsure about any step, contact a qualified technician.

5. การดำเนินการ

The LiftMaster K41-0219-000 Postal Lock Switch functions as an integral part of your LiftMaster CAPXM, CAPXLV, or CAPXLV2 access control system. Its primary purpose is to provide a secure, key-operated entry point for authorized postal service personnel.

• When a postal service key is inserted into the corresponding lock cylinder (not included with this switch, but part of the overall system) and turned, the postal lock switch sends a signal to the access control system.
• This signal instructs the system to temporarily unlock the gate or door, allowing postal personnel to enter the property.
• The system typically re-locks automatically after a preset delay or once the gate/door closes, ensuring continued security.

The operation is entirely dependent on the configuration and programming of the main access control unit. Refer to your CAPXM, CAPXLV, or CAPXLV2 system's user manual for specific operational details and programming options related to the postal lock function.

6. การบำรุงรักษา

The LiftMaster K41-0219-000 Postal Lock Switch is designed for durability and requires minimal maintenance. However, periodic inspection and cleaning can help ensure its longevity and reliable operation.

• การตรวจสอบภาพ: Periodically inspect the switch and its connections for any signs of wear, corrosion, or damage. Ensure all wiring is intact and secure.
• การทำความสะอาด: If necessary, gently clean the exterior of the switch with a soft, dry cloth. Avoid using harsh chemicals, abrasives, or excessive moisture, as these can damage the electronic components.
• การปกป้องสิ่งแวดล้อม: Ensure the access control system enclosure remains sealed and protected from moisture, dust, and extreme temperatures, which can affect the switch's performance.

If any damage is observed or if the switch is not functioning correctly, refer to the troubleshooting section or contact LiftMaster support.

7 การแก้ไขปัญหา

If the postal lock function of your access control system is not operating as expected, consider the following troubleshooting steps:

• พลังของระบบ: Verify that the main LiftMaster access control system (CAPXM, CAPXLV, or CAPXLV2) has power and is operating correctly.
• การดำเนินการที่สำคัญ: Ensure the postal service key is fully inserted and turned correctly in the lock cylinder. Test with a known working key if possible.
• การเชื่อมต่อสายไฟ: With power disconnected, visually inspect all wiring connections to the K41-0219-000 switch. Ensure they are tight and correctly connected according to the system's wiring diagram.
• ความเสียหายทางกายภาพ: Check the switch for any visible signs of physical damage, such as cracks, bent pins, or corrosion.
• การวินิจฉัยระบบ: Consult the diagnostic features or error codes of your main CAPXM, CAPXLV, or CAPXLV2 system. These may provide specific information regarding the postal lock input.

If the issue persists after performing these checks, it may indicate a fault with the postal lock switch itself, the lock cylinder, or the main access control unit. In such cases, it is recommended to contact LiftMaster technical support or a qualified service technician.

8. ข้อมูลจำเพาะ

9. การรับประกันและการสนับสนุน

ข้อมูลการรับประกัน:

This LiftMaster K41-0219-000 Postal Lock Switch is covered by LiftMaster's standard manufacturer's warranty. For specific details regarding warranty duration, coverage, and terms, please refer to the warranty documentation included with your original LiftMaster access control system or visit the official LiftMaster webไซต์นี้ โปรดเก็บหลักฐานการซื้อไว้เพื่อใช้ยืนยันการรับประกัน

การสนับสนุนด้านเทคนิค:

Should you require technical assistance, have questions about installation, or need to report a malfunction, please contact LiftMaster Customer Support. Have your product model number (K41-0219-000) and your main access control system model (CAPXM, CAPXLV, or CAPXLV2) readily available when contacting support.

ลิฟต์มาสเตอร์อย่างเป็นทางการ Webเว็บไซต์: www.liftmaster.com

Please note that warranty and support policies are subject to change by the manufacturer.
