วอนโซย

VONZOY 3-Piece Outdoor Wicker Patio Set User Manual

Model: B0DSVTV1ZP

การแนะนำ

Thank you for choosing the VONZOY 3-Piece Outdoor Wicker Patio Set. This manual provides essential information for the safe assembly, operation, and maintenance of your new patio furniture. Please read these instructions carefully before assembly and retain this manual for future reference.

VONZOY 3-Piece Outdoor Wicker Patio Set with two blue-cushioned swivel chairs and a small wicker table on a patio.

The VONZOY 3-Piece Outdoor Wicker Patio Set, featuring two 360° swivel chairs and a matching wicker table.

ข้อมูลด้านความปลอดภัย

เพื่อให้แน่ใจว่าใช้งานได้อย่างปลอดภัยและป้องกันการบาดเจ็บหรือความเสียหาย โปรดปฏิบัติตามหลักเกณฑ์ด้านความปลอดภัยต่อไปนี้:

  • Always assemble the product on a soft, non-abrasive surface to prevent scratches.
  • ตรวจสอบให้แน่ใจว่าน็อตและสกรูทั้งหมดขันแน่นดีแล้วก่อนใช้งาน ตรวจสอบและขันให้แน่นอีกครั้งเป็นระยะๆ ตามความจำเป็น
  • ห้ามรับน้ำหนักเกิน 400 ปอนด์ต่อเก้าอี้หนึ่งตัว
  • เก็บชิ้นส่วนขนาดเล็กและวัสดุบรรจุภัณฑ์ให้ห่างจากเด็กเพื่อป้องกันอันตรายจากการสำลัก
  • Avoid placing hot items directly on the tempered glass table surface without protection.
  • Do not stand on the chairs or table.
  • Use caution when rocking or swiveling to avoid collisions with surrounding objects or people.

เนื้อหาแพ็คเกจ

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer service immediately.

  • 2 x Swivel Chairs (unassembled)
  • 1 x Wicker Table (unassembled)
  • 2 x Seat Cushions (Blue)
  • 2 x Back Cushions (Blue)
  • 1 x Hardware Pack (bolts, washers, nuts, Allen wrench)
  • 1 x คู่มือการประกอบ

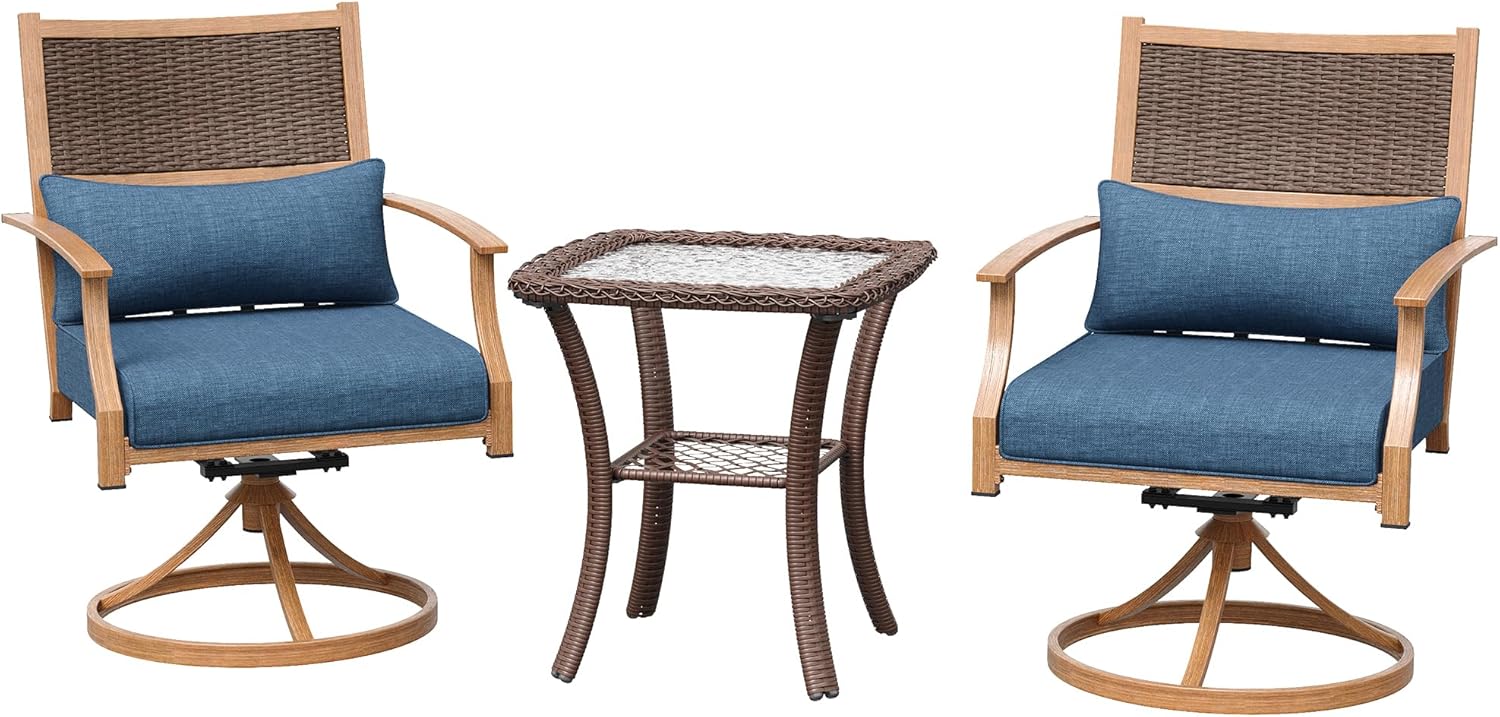

All components of the VONZOY 3-Piece Outdoor Wicker Patio Set laid out, including two chairs, a table, and cushions.

All components included in the VONZOY 3-Piece Outdoor Wicker Patio Set.

การติดตั้งและการประกอบ

Follow these steps to assemble your VONZOY patio set. It is recommended to have two people for assembly.

การประกอบเก้าอี้:

  1. Carefully unpack all chair components and lay them on a soft, flat surface.
  2. Attach the chair backrest to the seat frame using the provided bolts and Allen wrench. Do not fully tighten yet.
  3. Connect the armrests to both the backrest and seat frame. Ensure all holes align before inserting bolts.
  4. Attach the swivel base to the assembled chair frame. Ensure the base is oriented correctly for smooth rotation.
  5. Once all components are loosely assembled, gradually tighten all bolts evenly until secure. Do not overtighten.
  6. Place the seat and back cushions onto the assembled chair.

การประกอบโต๊ะ:

  1. Unpack the table components.
  2. ติดขาโต๊ะเข้ากับโครงโต๊ะ
  3. Secure the lower shelf to the table legs.
  4. ขันสลักเกลียวทั้งหมดให้เท่ากัน
  5. Carefully place the tempered glass top into the table frame.
Diagram showing the step-by-step assembly of the swivel chair, from frame to base and cushions.

คู่มือภาพประกอบสำหรับขั้นตอนการประกอบเก้าอี้

Four sequential images illustrating the assembly process of the patio chair, from base to full chair.

Detailed assembly sequence for the patio chair.

คำแนะนำการใช้งาน

Your VONZOY patio chairs are designed for comfort and versatility, featuring both 360° swivel and 15° gentle rocking motions.

ฟังก์ชั่นหมุนได้ 360°:

The chairs are equipped with a smooth 360° swivel mechanism. To rotate, simply apply gentle pressure with your feet or body in the desired direction. The swivel function allows for easy conversation and viewing in any direction without needing to reposition the entire chair.

15° Gentle Rocking Motion:

In addition to swiveling, the chairs offer a slight 15° rocking motion for added relaxation. Lean back gently to engage the rocking feature. This motion is designed to be subtle and comfortable, enhancing your lounging experience.

Diagram illustrating the 360-degree swivel and 15-degree rocking motion of the patio chair.

Illustration of the chair's swivel and rocking capabilities.

Animated sequence showing the chair swiveling and rocking, highlighting its flexibility.

Visual demonstration of the chair's swivel and gentle rocking motion.

การบำรุงรักษาและการดูแล

Proper care will extend the life and appearance of your patio set.

การดูแลเฟรม:

  • เช็ดกรอบอะลูมิเนียมด้วยผ้าเนื้อนุ่มและแห้งamp cloth and mild soap. Rinse thoroughly and dry completely to prevent water spots.
  • Avoid using harsh chemicals, abrasive cleaners, or wire brushes, as these can damage the wood-grain finish and powder coating.
  • Periodically check all bolts and connections and tighten if necessary to maintain stability.

การดูแลเบาะ:

  • The cushions are made with water-resistant fabric. For light cleaning, wipe with a damp ผ้า.
  • For deeper cleaning, the cushion covers feature hidden zippers for easy removal. Hand wash with mild soap and cold water, or machine wash on a gentle cycle. Air dry only; do not tumble dry.
  • Store cushions indoors during prolonged periods of rain or extreme weather to maintain their quality and extend their lifespan.
Close-up image of a cushion with a hidden zipper, indicating easy removal for cleaning.

Hidden zipper for easy cushion cover removal and cleaning.

Close-up of the water-resistant fabric with water droplets beading on the surface.

The water-resistant fabric of the cushions repels moisture.

การแก้ไขปัญหา

If you encounter any issues with your patio set, refer to the table below for common problems and solutions.

ปัญหาสาเหตุที่เป็นไปได้สารละลาย
เก้าอี้โยกเยกหรือรู้สึกไม่มั่นคงน็อตหลวม พื้นผิวไม่เรียบEnsure all assembly bolts are securely tightened. Move the chair to a flat, even surface.
กลไกการหมุนฝืดหรือมีเสียงดังขาดการหล่อลื่น; มีเศษสิ่งสกปรกติดอยู่ในกลไกApply a silicone-based lubricant to the swivel mechanism. Clean any visible debris from the base.
เบาะรองนั่งดูแบนหรือเสียรูปทรงProlonged compression; exposure to moisture.Fluff cushions regularly. Ensure cushions are dry before storing. High-density foam should regain shape over time.
Table glass top shifts.Missing or worn suction cups/spacers.Ensure the glass top is properly seated. Check if any rubber spacers or suction cups (if included) are missing or need replacement.

ข้อมูลจำเพาะ

Detailed specifications for the VONZOY 3-Piece Outdoor Wicker Patio Set.

คุณสมบัติรายละเอียด
ขนาดสินค้า (กว้าง x ยาว x สูง)20.08 x 22.84 x 33.86 inches (per chair)
น้ำหนักสินค้า59.5 ปอนด์ (ทั้งชุด)
วัสดุPowder-coated Metal Frame, Handwoven Wicker, High-Density Foam Cushions, Tempered Glass Tabletop
สีBlue Cushions, Wood-grain Frame, Brown Wicker
ความสามารถในการรับน้ำหนักของเก้าอี้Up to 400 pounds per chair
มุมหมุน360°
มุมโยก15°
Diagram showing the dimensions of the chair and table in inches, and the 400 lbs weight capacity.

Detailed dimensions of the chair and table, along with chair weight capacity.

การรับประกันและการสนับสนุน

VONZOY stands behind the quality of its products. This product comes with a standard manufacturer's warranty covering defects in materials and workmanship from the date of purchase. For specific warranty terms and conditions, please refer to the warranty card included in your package or visit the official VONZOY webเว็บไซต์.

การสนับสนุนลูกค้า:

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact our customer service team. Our dedicated support staff is available to help resolve any concerns promptly.

  • อีเมล: support@vonzoy.com
  • โทรศัพท์: Please refer to the contact information provided on the product packaging or warranty card.
  • ออนไลน์: เยี่ยมชม VONZOY Store on Amazon สำหรับคำถามที่พบบ่อยและข้อมูลผลิตภัณฑ์เพิ่มเติม

© 2025 VONZOY. All rights reserved.
