Stainless Steel Top-Entry Grease Trap Filter User Manual

1. บทนำ

This manual provides comprehensive instructions for the installation, operation, and maintenance of your new Stainless Steel Top-Entry Grease Trap Filter. Designed for efficient oily water treatment, this separator is ideal for various commercial and industrial applications, including restaurant kitchens and hotels. Proper use and maintenance will ensure optimal performance and longevity of the unit.

2. สินค้าหมดview

The Grease Trap Filter is a compact, gravity-based mechanical oil-water separator constructed from durable stainless steel. It is designed to prevent clogs by effectively separating fats, oils, greases (FOG), and solid particles from wastewater before it enters the drainage system.

2.1 คุณสมบัติหลัก

• โครงสร้างทนทาน: Made from high-quality stainless steel, resistant to rust and corrosion.
• Efficient Separation: Effectively separates FOG and solid particles from wastewater.
• ตะกร้ากรองแบบถอดได้: Facilitates easy collection and disposal of waste.
• Sealed Lid: Ensures secure containment and efficient filtration.
• ติดตั้งง่าย: Simple interface connection for quick setup in various environments.
• การบำรุงรักษาต่ำ: Designed for easy cleaning and upkeep.
• การใช้งานที่หลากหลาย: Suitable for kitchens, restaurants, factories, schools, and small sink/dishwasher applications.

2.2 ส่วนประกอบผลิตภัณฑ์

The unit consists of the main stainless steel body, a removable filter basket, a sealed lid, an inlet, an outlet, and a drain valve.

Figure 2.2.1: Top-Entry Grease Trap Filter with its lid open, showcasing the internal filter basket and the overall stainless steel construction. The unit features an inlet pipe on one side and a drain valve on the other.

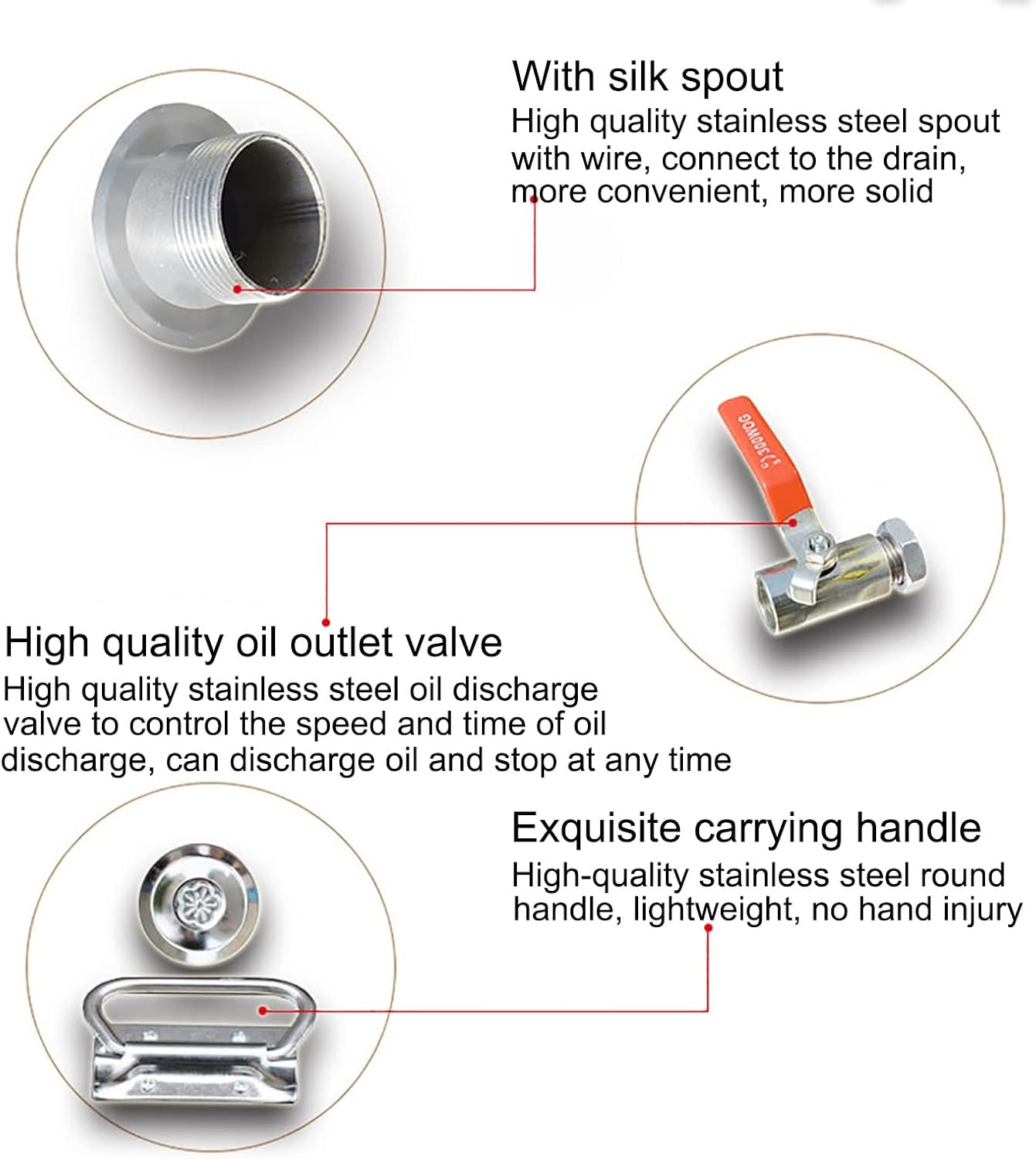

รูปที่ 2.2.2: ระยะใกล้ view of key components including the high-quality stainless steel spout for drainage, the oil outlet valve for controlled discharge, and the exquisite carrying handle designed for comfortable handling.

Figure 2.2.3: Diagram highlighting design features: a filter basket for easy extraction, double wrapping for safety, high-quality stainless steel for durability, and a water inlet hole with deodorant design to prevent odors.

3. หลักการทำงาน

The grease trap operates on the principle of gravity separation, leveraging the density difference between water, oils, and solid particles. When wastewater enters the unit, fats, oils, and greases (FOG) float to the surface due to their lower density, while heavier solid particles sink to the bottom.

1. Wastewater containing FOG and solids enters the unit through the inlet.
2. The removable fine mesh filter basket captures larger solid debris such as food scraps and leaves.
3. Within the main chamber, FOG rises to the surface and is trapped by internal baffles, preventing it from flowing out.
4. Cleaned water, now free of most FOG and large solids, flows under the baffles and exits through the outlet.
5. Accumulated FOG and settled solids are retained within the unit for periodic removal.

Figure 3.1: Schematic diagram showing the flow of water and separation of waste. Water enters, solids are caught in the residue basket, low-density oil rises to the surface, and clean water exits after passing under baffles. A drain valve is present for maintenance.

4. การตั้งค่าและการติดตั้ง

The grease trap is designed for straightforward installation. It should be installed under a sink or dishwasher, ensuring easy access for maintenance.

4.1 รายการตรวจสอบก่อนการติดตั้ง

• Ensure adequate space for the unit, considering its dimensions (refer to Specifications section).
• Verify that the floor is level and capable of supporting the weight of the unit when full.
• Gather necessary plumbing tools and fittings for connecting to your sink or dishwasher drain.

4.2 ขั้นตอนการติดตั้ง

1. Position the grease trap on a stable, level surface directly beneath the wastewater source (sink or dishwasher).
2. Connect the wastewater inlet pipe from your sink/dishwasher to the inlet port of the grease trap. Ensure a secure, leak-proof connection.
3. Connect the outlet port of the grease trap to your main drainage system. Again, ensure a secure and leak-proof connection.
4. If applicable, install the deodorant plugs into the water inlet holes to prevent odors.
5. Test the connections by running water through the sink/dishwasher to check for any leaks.

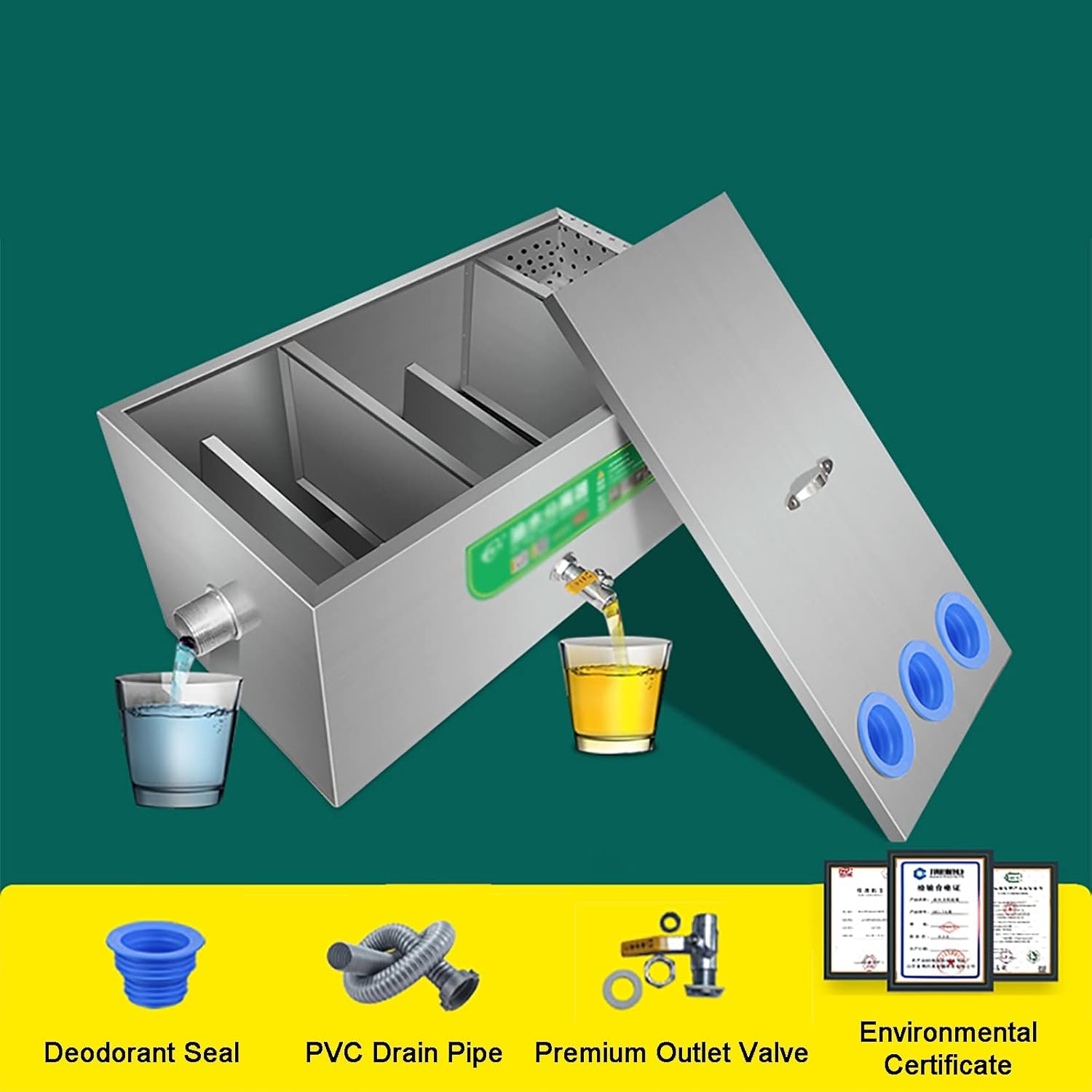

Figure 4.2.1: Visual representation of the grease trap in operation, showing water and oil separation, along with included accessories like the deodorant seal, PVC drain pipe, and premium outlet valve.

5. การดำเนินการ

Once installed, the grease trap operates automatically as wastewater flows through it. No manual intervention is required during normal operation.

5.1 การใช้ชีวิตประจำวัน

• Ensure the lid is securely closed to maintain an airtight seal and prevent odors.
• Avoid pouring excessive amounts of hot grease directly into the sink, as this can overwhelm the unit and potentially cause issues. Allow grease to cool and solidify before scraping it into the trash.

6. การบำรุงรักษาและการทำความสะอาด

Regular maintenance is crucial for the efficient operation and longevity of your grease trap. The frequency of cleaning depends on the volume and type of wastewater processed.

6.1 ความถี่ในการทำความสะอาด

• For commercial kitchens, daily or weekly cleaning of the filter basket and FOG removal is recommended.
• For lighter use, inspect the unit weekly and clean as needed.

6.2 ขั้นตอนการทำความสะอาด

1. Ensure no water is flowing into the grease trap.
2. Open the lid of the grease trap.
3. Carefully remove the fine mesh filter basket. Empty any collected solid debris into a waste bin. Rinse the basket thoroughly with warm water.
4. Skim off any accumulated fats, oils, and greases from the surface of the water inside the trap. Dispose of FOG in an appropriate waste container (do not pour down the drain).
5. Use the drain valve to empty the remaining water and any settled sludge from the bottom of the trap.
6. Wipe down the interior surfaces of the grease trap with a cloth and mild detergent, if necessary.
7. Replace the filter basket and securely close the lid.

7 การแก้ไขปัญหา

This section addresses common issues you might encounter with your grease trap.

8. ข้อมูลจำเพาะ

Detailed technical specifications for the Stainless Steel Top-Entry Grease Trap Filter.

• ยี่ห้อ: ทั่วไป
• หมายเลขรุ่น: YYSY-PUCC-TT32239_2
• วัสดุ: สแตนเลส
• สี: เงิน
• ขนาด (ยาว x กว้าง x สูง): 40 x 25 x 23 ซม. (15.7 x 9.8 x 9.1 นิ้ว)
• Wastewater Inlet Diameter: 5 ซม. (ประมาณ 2 นิ้ว)
• ASIN: B0DSSSTJ3P
• วันที่พร้อมใช้งานครั้งแรก: 11 มกราคม 2025

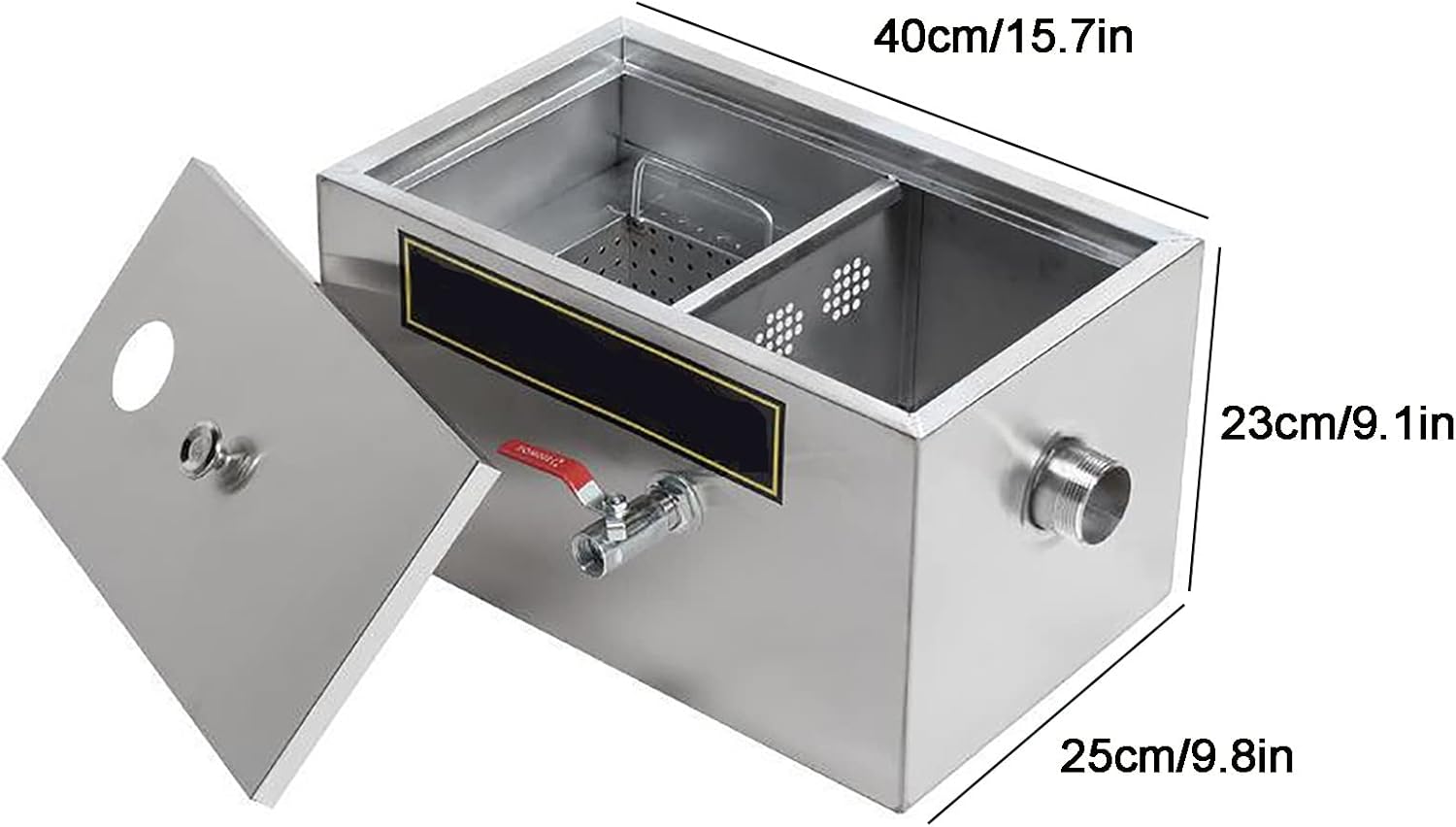

Figure 8.1: Diagram illustrating the dimensions of the grease trap: 40cm (15.7in) length, 25cm (9.8in) width, and 23cm (9.1in) height.

9. การสมัคร

This grease trap is versatile and suitable for a wide range of environments where oily wastewater treatment is required.

• Restaurant Kitchens
• Hotels and Catering Facilities
• Canteens and Dining Rooms
• Factories and Industrial Settings
• โรงเรียนและสถาบันการศึกษา
• Any small sink or dishwasher application requiring FOG separation.

รูปที่ 9.1: อดีตamples of typical application environments including dining rooms, kitchens, restaurants, canteens, and buffets, demonstrating the versatility of the grease trap.

10. การรับประกันและการสนับสนุน

Information regarding warranty coverage and customer support is typically provided by the seller or manufacturer at the time of purchase. Please refer to your purchase documentation for specific details on warranty periods and how to obtain support for your product.

For technical assistance or inquiries, please contact the seller directly through the platform where the product was purchased.
