Generic Washer Dispenser Drawer Replacement Manual

การแนะนำ

This manual provides comprehensive instructions for the installation, operation, and maintenance of your new Generic replacement dispenser drawer. This part is designed to restore the proper dispensing function of your washing machine. Please read all instructions carefully before proceeding with installation or use.

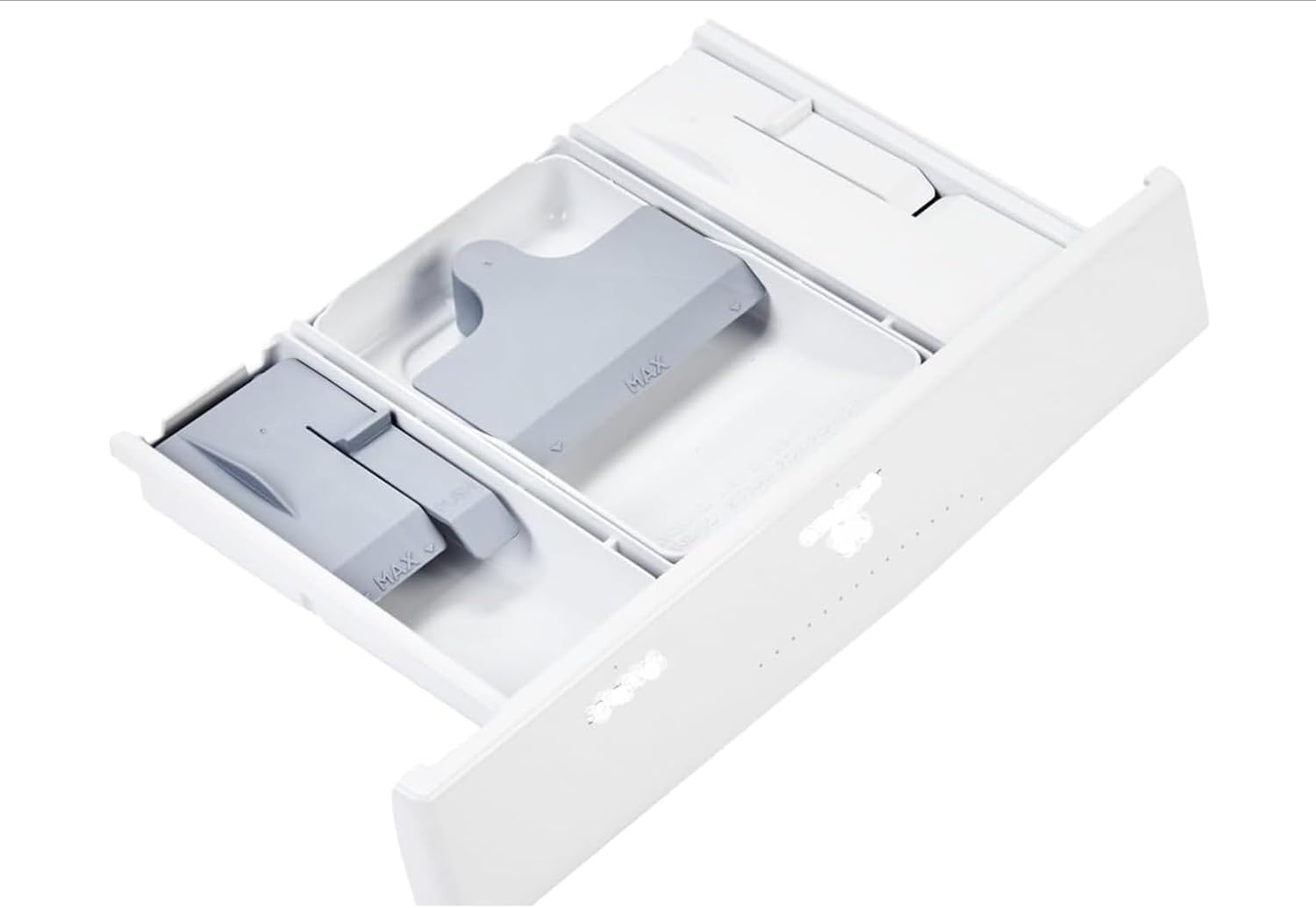

Image: The replacement dispenser drawer, featuring compartments for detergent and fabric softener, with 'MAX' fill lines visible on the gray inserts.

ความเข้ากันได้

This replacement dispenser drawer is compatible with a range of washing machine models. Please verify your washer's model number to ensure proper fit before installation. Compatible models include, but are not limited to:

• อาจtag: MVW6200KW0, MVW6200KW1, MVW6200KW2
• วังน้ำวน: 7MWTW7000EW0, 7MWTW7000EW1, 7MWTW7300EW0, 7MWTW7300EW1
• Admiral: MVW6230HC0, MVW6230HC1, MVW6230HC2, MVW6230HC3, MVW6230HW0, MVW6230HW1, MVW6230HW2, MVW6230HW3, MVW6230RHW0, MVW6230RHW1, MVW6230RHW2, WTW500CMW0, WTW6150PW0, WTW6157PW0, WTW7000DW0, WTW7000DW1, WTW7000DW2, WTW7000DW3, WTW7000DW4, WTW7040DW0, WTW7040DW1, WTW7040DW2, WTW7300DC0, WTW7300DW0, WTW7300DW1, WTW7300DW2, WTW8000DW0, WTW8000DW1, WTW8000DW2, WTW8000DW3, WTW8000DW4, WTW8000DW5, WTW8040DW0, WTW8040DW1, WTW8040DW2, WTW8040DW3, WTW8040DW4

If your model is not listed or you are unsure about compatibility, please contact customer support for assistance.

ข้อมูลด้านความปลอดภัย

• ตัดการเชื่อมต่อไฟฟ้า: Always unplug the washing machine from the power outlet before attempting any installation, removal, or maintenance.
• สวมอุปกรณ์ป้องกัน: Use gloves if necessary to protect your hands.
• จัดการด้วยความระมัดระวัง: Avoid dropping the part, as it may cause damage.
• เก็บให้ห่างจากเด็ก: เก็บชิ้นส่วนทดแทนให้พ้นมือเด็ก

คำแนะนำในการติดตั้ง

Follow these steps to replace your washer's dispenser drawer:

1. เตรียมเครื่องซักผ้า: Ensure the washing machine is unplugged from the electrical outlet. Close the water supply valves.
2. Remove the Old Dispenser Drawer:
   • Pull the existing dispenser drawer out until it stops.
   • Locate the release tab or button, usually found in the center or on the side of the drawer. Press or lift this tab.
   • While holding the tab, pull the drawer completely out of its housing.
3. Clean the Housing (Optional but Recommended): ใช้โฆษณาamp cloth to wipe away any detergent residue or mold from the dispenser drawer housing before installing the new drawer.
4. Install the New Dispenser Drawer:
   • Align the new dispenser drawer with the tracks in the washer's housing.
   • Gently push the drawer into the housing until it clicks into place. Ensure it slides in smoothly and is securely seated.
5. ทดสอบการติดตั้ง: Plug the washing machine back into the power outlet and open the water supply valves. Run a short cycle without laundry to check for proper water flow and dispensing.

การดำเนินการ

The dispenser drawer is designed for specific laundry additives. Refer to your washing machine's main user manual for detailed instructions on detergent and additive usage. Generally, the compartments are used as follows:

• Main Wash Detergent Compartment: For liquid or powder detergent for the main wash cycle. Fill up to the 'MAX' line.
• Fabric Softener Compartment: For liquid fabric softener. Fill up to the 'MAX' line. Do not overfill.
• Pre-Wash/Bleach Compartment (if applicable): For pre-wash detergent or liquid bleach.

Always close the dispenser drawer completely before starting a wash cycle.

การบำรุงรักษาและการทำความสะอาด

Regular cleaning of the dispenser drawer is essential to prevent residue buildup and ensure proper dispensing.

1. Remove the Drawer: Follow the steps in the 'Installation Instructions' to remove the dispenser drawer from the washer.
2. Disassemble (if applicable): Some dispenser drawers have removable inserts. Carefully detach any removable parts for thorough cleaning.
3. ทำความสะอาดส่วนประกอบ: Wash the drawer and its inserts under warm running water. Use a soft brush or cloth to remove any detergent or fabric softener residue. A mild detergent can be used if needed.
4. ทำความสะอาดที่อยู่อาศัย: Wipe the inside of the dispenser drawer housing in the washer with a damp ผ้าเพื่อขจัดสิ่งสะสมใด ๆ
5. ประกอบและติดตั้งใหม่: Ensure all parts are dry before reassembling the drawer and sliding it back into the washer.

Perform this cleaning process monthly or as needed, especially if you notice residue buildup or dispensing issues.

การแก้ไขปัญหา

If you encounter issues with your new dispenser drawer, consider the following:

• Drawer Not Closing Properly: Ensure the drawer is correctly aligned with the tracks and that no obstructions are preventing it from fully closing. Check if any internal components are misaligned.
• Detergent/Softener Not Dispensing:
  • Check for clogs: Residue buildup can block the dispensing channels. Clean the drawer and its housing thoroughly as described in the 'Maintenance' section.
  • Ensure water pressure is adequate: Low water pressure can affect dispensing.
  • Verify correct compartment usage: Make sure additives are placed in the correct compartments and not overfilled.
• Water Leaking from Drawer:
  • Check for overfilling: Do not exceed the 'MAX' fill lines.
  • Ensure the drawer is fully closed and seated correctly.
  • Inspect for cracks or damage: Although new, inspect the drawer for any manufacturing defects.

หากปัญหายังคงอยู่หลังจากแก้ไขปัญหาเบื้องต้นแล้ว โปรดติดต่อฝ่ายบริการลูกค้า

ข้อมูลจำเพาะ

ข้อมูลการรับประกัน

ผลิตภัณฑ์นี้มาพร้อมกับ รับประกัน 90 วัน from the date of purchase. This warranty covers manufacturing defects. If you experience any issues within this period, please contact the seller for support, replacement, or refund.

การสนับสนุนลูกค้า

For any questions, concerns, or assistance with installation or troubleshooting, please contact the seller directly. Provide your purchase details and model number for faster service. We are committed to resolving your issues within 24 hours.
