VEVOR 59-inch Felled Cant Hook Logging Tool Instruction Manual

1. บทนำ

This manual provides essential instructions for the safe and effective use of your VEVOR 59-inch Felled Cant Hook Logging Tool. Designed for leverage, this tool assists in lifting, rolling, and positioning logs, making log handling tasks more manageable. Please read this manual thoroughly before assembly or operation to ensure proper use and to prevent injury or damage.

2. คำแนะนำด้านความปลอดภัย

Always prioritize safety when working with logging tools. Failure to follow these instructions may result in serious injury.

• สวมใส่อุปกรณ์ป้องกันส่วนบุคคล (PPE): Always wear safety glasses, heavy-duty gloves, steel-toed boots, and appropriate clothing to protect against falling logs, splinters, and other hazards.
• ตรวจสอบเครื่องมือ: Before each use, check the cant hook for any signs of damage, loose bolts, or wear. Do not use a damaged tool.
• เคลียร์พื้นที่ทำงาน: Ensure the area around the log is clear of obstructions, debris, and other personnel. Plan your log movement path in advance.
• Maintain a Secure Stance: Always maintain a balanced and stable footing. Avoid overreaching or working on unstable ground.
• ใช้เทคนิคที่เหมาะสม: Use leverage, not brute force. Position the hook securely on the log before applying pressure to roll or lift.
• Be Aware of Rolling Logs: Logs can roll unexpectedly. Stand clear of the log's path and anticipate its movement.
• หลีกเลี่ยงการโอเวอร์โหลด: Do not attempt to move logs that exceed the tool's capacity (up to 32 inches in diameter).
• เก็บรักษาอย่างปลอดภัย: When not in use, store the cant hook in a secure location, away from children and unauthorized users.

3. ส่วนประกอบผลิตภัณฑ์

The VEVOR 59-inch Felled Cant Hook (Model LH59) package includes the following components:

• 1 x Handle (Main Shaft)
• 1 x Hook (Cant Hook Arm)
• 1 x M10 Screw + Nut
• 2 x M8 Screws + Nuts
• 1 x Rubber Grip (Pre-installed on handle)
• 1 x คู่มือผู้ใช้ (เอกสารนี้)

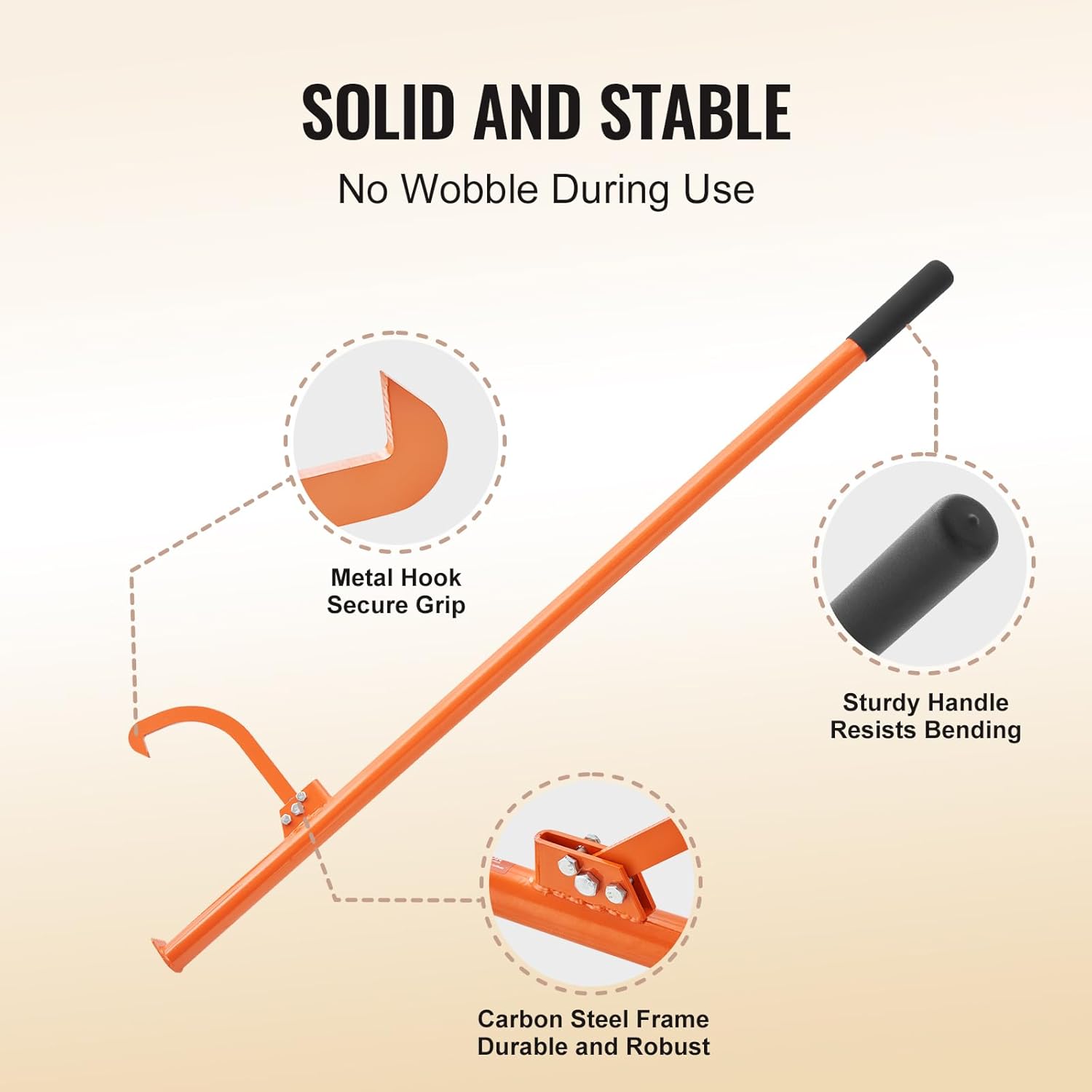

Image: Key components of the VEVOR Cant Hook, highlighting the metal hook, handle, and carbon steel frame.

4. การติดตั้งและการประกอบ

The VEVOR Cant Hook is designed for simple and effortless assembly. No additional power tools are required.

1. ระบุส่วนประกอบ: Lay out all components from the package. You should have the main handle, the hook arm, and the necessary screws and nuts.
2. ติดตะขอ: Align the pivot point of the hook arm with the corresponding holes on the main handle.
3. ยึดด้วยสกรู: Insert the M10 screw through the main pivot hole and secure it with its nut. Then, insert the two M8 screws through the smaller holes to fix the hook's base to the handle, securing them with their respective nuts. Ensure all screws are tightened firmly but do not overtighten.
4. ตรวจสอบความเสถียร: Once assembled, check that the hook pivots smoothly and that all connections are secure and stable.

Image: Visual guide for assembling the cant hook using screws and nuts.

5. คู่มือการใช้งาน

The VEVOR Cant Hook utilizes leverage to simplify log handling. Follow these steps for effective and safe operation:

1. วางตำแหน่งเครื่องมือ: Place the cant hook next to the log you intend to move. Ensure the fixed toe of the tool is firmly on the ground or against the log.
2. Engage the Hook: Adjust the metal hook opening to fit the log's diameter. The hook is designed to accommodate logs up to 32 inches in diameter. Lower the handle so the hook engages the log securely.
3. ใช้ประโยชน์จากจุดแข็ง: Hold the rubber-gripped handle firmly. Apply downward pressure on the handle, using your body weight to leverage the log. The hook will bite into the log, allowing you to roll or lift it.
4. Roll or Lift:
   • To Roll: Continue applying downward pressure and walk alongside the log, guiding its rotation.
   • วิธียก: For slight adjustments or to lift one end of a log off the ground, apply controlled downward pressure on the handle.
5. เปลี่ยนตำแหน่งตามความจำเป็น: For longer logs or significant movements, you may need to reposition the cant hook multiple times.

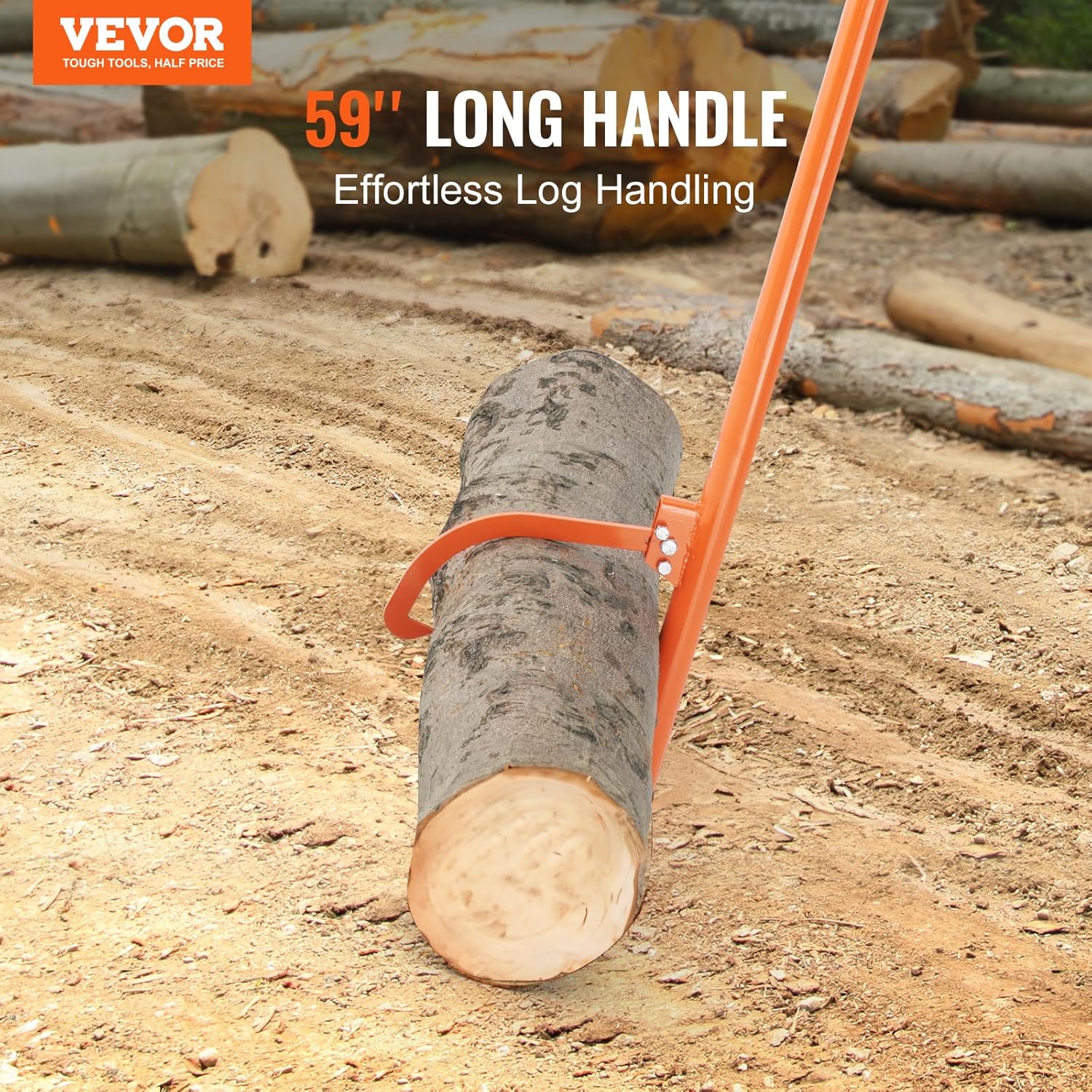

Image: The VEVOR cant hook in action, showing its long handle for efficient log manipulation.

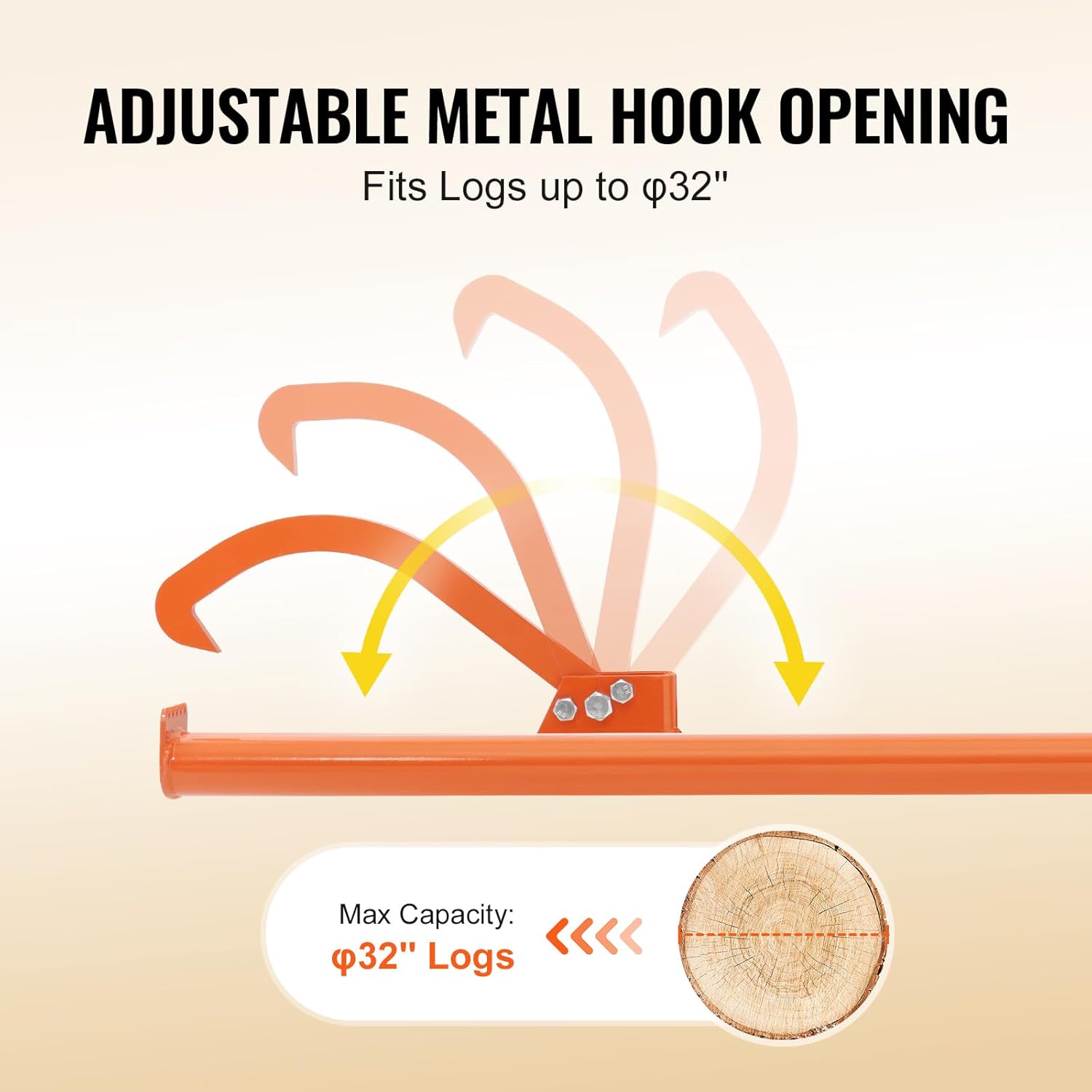

Image: The adjustable hook mechanism, capable of gripping logs up to 32 inches in diameter.

Image: The ergonomic rubber grip on the handle, designed for comfort and secure hold.

6. การบำรุงรักษา

Regular maintenance will extend the life of your VEVOR Cant Hook and ensure its continued safe operation.

• การทำความสะอาด: After each use, clean off any dirt, sap, or debris from the tool, especially around the hook and pivot points.
• การหล่อลื่น: Periodically apply a light lubricant to the pivot points of the hook to ensure smooth operation.
• การตรวจสอบ: Regularly inspect the entire tool for signs of wear, cracks, bends, or loose fasteners. Pay close attention to the hook's tip and the handle's integrity.
• การป้องกันสนิม: The tool features an orange powder-coated surface for rust and corrosion protection. If the coating is scratched or damaged, clean the area and apply a rust-inhibiting paint or coating to prevent corrosion. Store the tool in a dry environment.
• ขันสกรูให้แน่น: Check and tighten all screws and nuts periodically to ensure they remain secure.

7 การแก้ไขปัญหา

If you encounter issues with your VEVOR Cant Hook, consider the following:

• Hook Not Gripping Log:
  • Ensure the log diameter is within the 32-inch capacity.
  • Verify the hook is properly positioned and biting into the log.
  • Check if the hook tip is dull or damaged; sharpening may be required (consult a professional if unsure).
• Difficulty Rolling Log:
  • Ensure the ground is clear of obstacles.
  • Apply sufficient leverage by pressing down firmly on the handle.
  • For very heavy logs, consider using additional tools or assistance.
• Tool Feels Unstable:
  • Check all assembly screws and nuts for tightness.
  • Inspect the handle and hook for any signs of bending or structural damage. Discontinue use if damage is found.

8. ข้อมูลจำเพาะ

Detailed specifications for the VEVOR 59-inch Felled Cant Hook (Model LH59):

Image: Product specifications and dimensions diagram.

9. การรับประกันและการสนับสนุน

For warranty information, technical support, or any inquiries regarding your VEVOR product, please refer to the official VEVOR webไซต์หรือติดต่อฝ่ายบริการลูกค้าของ VEVOR โดยตรง
