GarveeLife 8-Hole Chicken Nesting Box

การแนะนำ

This manual provides detailed instructions for the assembly, operation, and maintenance of your GarveeLife 8-Hole Chicken Nesting Box, Model LQ007. This product is designed to offer a clean, comfortable, and secure environment for hens to lay eggs, featuring an innovative egg collection system and durable construction.

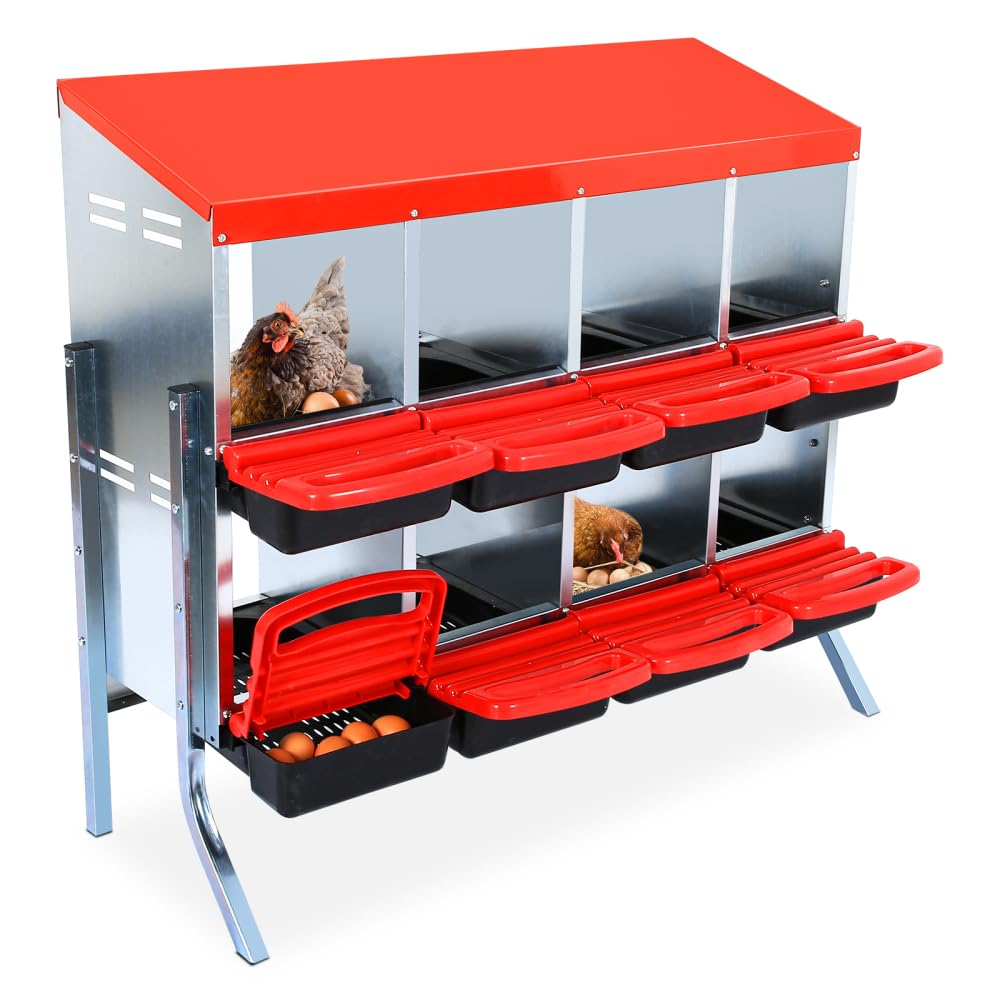

Image: The GarveeLife 8-Hole Chicken Nesting Box, Model LQ007, in red, showcasing การออกแบบและโครงสร้างโดยรวม

Key features of your GarveeLife Nesting Box include:

ภาพ: รายละเอียด view of product features, including the egg collection device, strong galvanized steel material, pitched roof for weather protection, and ventilation holes for air circulation.

• Innovative Egg Collection System: Eggs roll safely into a collection tray, preventing breakage and keeping them clean.
• โครงสร้างทนทาน: Made with galvanized steel sides and roof for longevity and resistance to outdoor elements.
• การระบายอากาศ : Integrated holes ensure fresh air circulation, maintaining a dry and cool environment.
• ง่ายต่อการทำความสะอาด: Features rust-resistant plastic trays that are simple to remove and rinse.
• การติดตั้งแบบยืดหยุ่น: Can be used as a floor-standing unit or wall-mounted.

ข้อมูลด้านความปลอดภัย

• Always wear appropriate safety gear, such as gloves, during assembly to prevent cuts or pinches from metal edges.
• Ensure all screws and nuts are securely tightened to maintain structural integrity and prevent collapse.
• Place the nesting box on a stable, level surface if using the floor-standing mode.
• If wall-mounting, ensure the wall structure can safely support the weight of the nesting box and its contents (including chickens).
• โปรดกันเด็กเล็กและสัตว์เลี้ยงให้อยู่ห่างจากบริเวณที่ชุมนุม

เนื้อหาแพ็คเกจ

Before beginning assembly, verify that all components are present and undamaged. Refer to the diagram below for identification of parts.

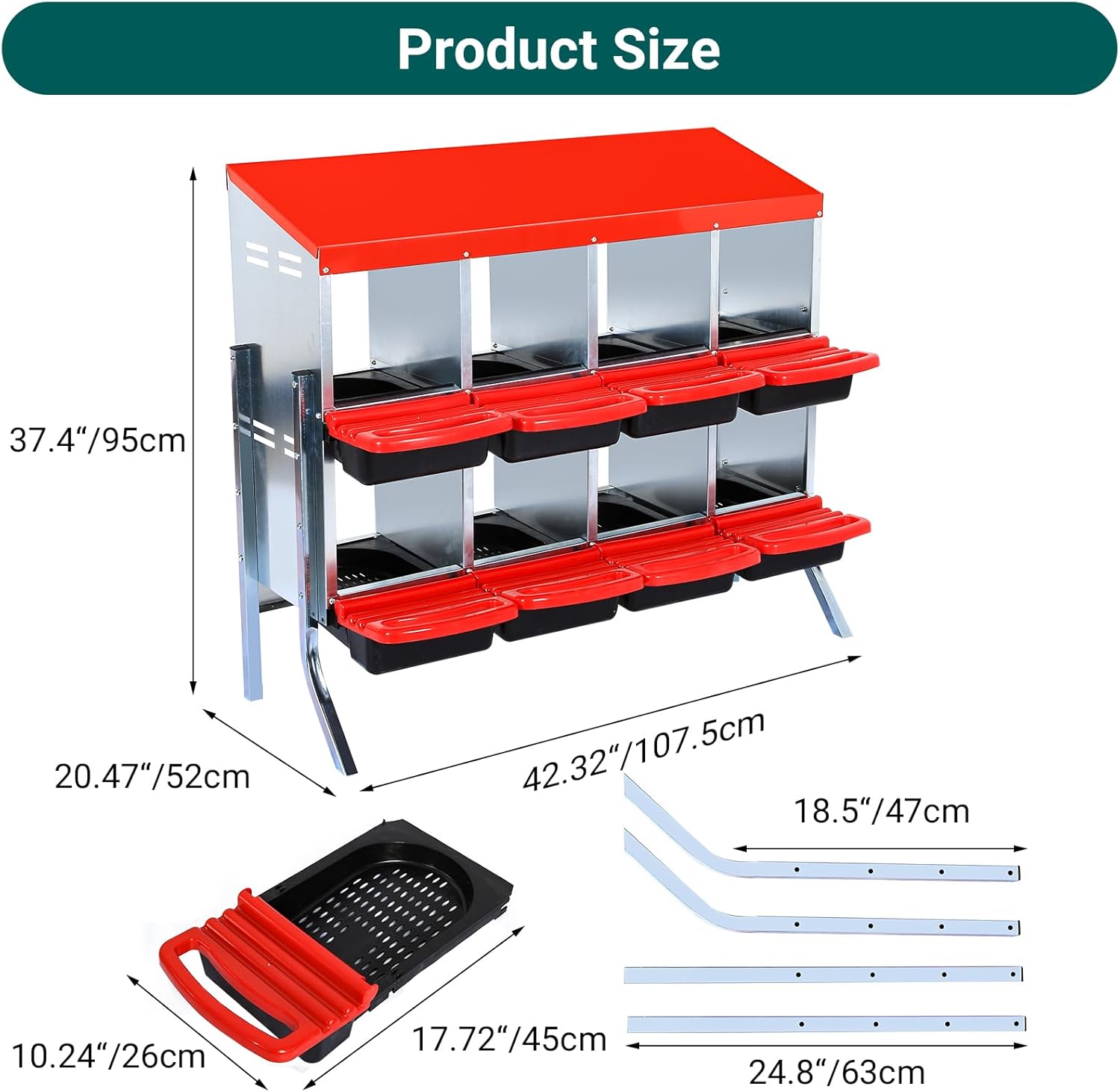

Image: Diagram illustrating the dimensions of the nesting box and its individual components, including the main body, roof, and egg collection trays.

แพ็คเกจควรประกอบด้วย:

• Galvanized steel panels (sides, back, dividers, roof)
• Plastic egg collection trays with handles (8 units)
• Support legs (if applicable for floor-standing mode)
• All necessary screws, nuts, and fasteners
• คำแนะนำในการประกอบ (คู่มือเล่มนี้)

การติดตั้งและการประกอบ

Follow these steps carefully for proper assembly and installation of your nesting box.

1. แกะส่วนประกอบ: นำชิ้นส่วนทั้งหมดออกจากบรรจุภัณฑ์อย่างระมัดระวัง และวางเรียงบนพื้นผิวเรียบและสะอาด ตรวจสอบว่าชิ้นส่วนทั้งหมดครบถ้วนตามรายการที่ระบุไว้บนบรรจุภัณฑ์
2. ประกอบเฟรม: Connect the galvanized steel side panels, back panel, and internal dividers using the provided screws and nuts. Ensure all connections are snug but do not overtighten until the entire frame is assembled.
3. ติดตั้งหลังคา: Secure the pitched roof panel to the top of the assembled frame using the designated fasteners.
4. Install Egg Collection Trays: Slide each plastic egg collection tray into its respective slot. Ensure the trays are properly seated and can slide smoothly. The unique incline design allows eggs to roll into the tray.
5. Choose Installation Mode: The nesting box supports two modes of use:


   Image: Illustration of the two installation options: placing the nesting box on the floor with its legs, or mounting it to a wall using the keyhole design.
   • ตั้งพื้น: Attach the provided support legs to the base of the nesting box. Place the assembled unit on a stable, level surface in your chicken coop or farm yard.
   • ติดผนัง: Utilize the key-shaped hanging holes on the back of the nesting box. Mount the box at a height of approximately 18-20 inches (45-50 cm) from the ground to accommodate your hens comfortably. Ensure the mounting hardware (not included) is appropriate for your wall type and can support the weight.
6. การขันขั้นสุดท้าย: Once the unit is in its desired location and mode, go back and securely tighten all screws and nuts.

คำแนะนำการใช้งาน

The GarveeLife nesting box is designed for ease of use and optimal egg collection.

Image: A visual comparison showing the benefits of the GarveeLife nesting box, highlighting clean, complete, and centrally collected eggs compared to dirty, broken, and scattered eggs from traditional methods.

1. Introducing Hens: Encourage your hens to use the nesting boxes by placing a few ceramic or wooden eggs inside initially. Ensure the boxes are in a quiet, dimly lit area of the coop, which hens prefer for laying.
2. Egg Collection: Due to the unique inclined design, eggs will gently roll into the collection tray after being laid. This protects eggs from being stepped on or pecked by chickens. Simply pull out the plastic tray to retrieve fresh eggs.
3. การระบายอากาศ : The nesting box features ventilation holes to ensure a constant flow of fresh air, keeping the environment dry and cool for your hens.

Image: Multiple chickens comfortably utilizing the GarveeLife 8-Hole Nesting Box in an outdoor coop setting, demonstrating its practical application.

การซ่อมบำรุง

Regular cleaning and maintenance will ensure the longevity of your nesting box and the health of your flock.

Image: A two-step guide demonstrating how to clean the nesting box: first, lifting the steel crosspiece to remove the plastic tray, and second, rinsing the tray with a garden hose.

1. การตรวจสอบรายวัน: Check the egg collection trays daily for eggs and any debris.
2. การทำความสะอาดถาด: The plastic egg collection trays are designed for easy cleaning.
   • Lift the steel crosspiece upward manually to a height above the non-slip clips.
   • Pull out the plastic tray.
   • Rinse the tray with water, such as a garden hose. The bottom of the tray has small holes to prevent water accumulation and aid in drainage.
   • Allow the tray to dry completely before reinserting.
3. การทำความสะอาดทั่วไป: Periodically wipe down the galvanized steel surfaces with a damp ผ้าสำหรับเช็ดฝุ่นละอองและสิ่งสกปรก
4. การป้องกันสนิม: The galvanized steel and plastic components are designed to resist rust. However, ensure the nesting box is not exposed to prolonged standing water.

การแก้ไขปัญหา

If you encounter issues with your GarveeLife nesting box, consider the following solutions:

• Nesting Box Feels Flimsy:

  Ensure all screws and nuts are fully tightened. If wall-mounted, verify the mounting points are secure and the wall can adequately support the unit. Adding additional bracing or mounting points may be necessary for increased stability.
• Egg Trays Not Staying in Place or Lids Falling:

  Check that the plastic trays are correctly inserted and seated within their designated slots. Inspect the steel crosspieces and non-slip clips for any bending or damage that might prevent proper retention. Gently adjust or straighten any bent components if possible.

• Hens Not Using Nesting Boxes:

  Chickens prefer quiet, private, and slightly darker areas for laying. Ensure the nesting box is located in such an area. Place a few ceramic or wooden eggs in the trays to encourage use. Verify the height is appropriate (18-20 inches from the ground if wall-mounted) and easily accessible for your flock.

• Eggs Not Rolling into Collection Tray:

  Ensure the nesting box is installed on a level surface or mounted straight. Any tilt in the wrong direction could prevent eggs from rolling. Check for any debris or nesting material obstructing the roll-away mechanism within the tray.

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

This product does not come with a manufacturer's warranty as per the product information. For any questions regarding assembly, operation, or maintenance, please contact the seller or GarveeLife customer support through the platform where the product was purchased.
