GIVI SR6122 Top Box Luggage Rack Motorcycle Instruction Manual

รุ่น: SR6122

สินค้าเกินview

The GIVI SR6122 is a specific fitment kit designed to allow the installation of a GIVI Monokey or Monolock top case (sold separately) onto compatible motorcycles. This rack provides a secure and stable platform for carrying additional luggage.

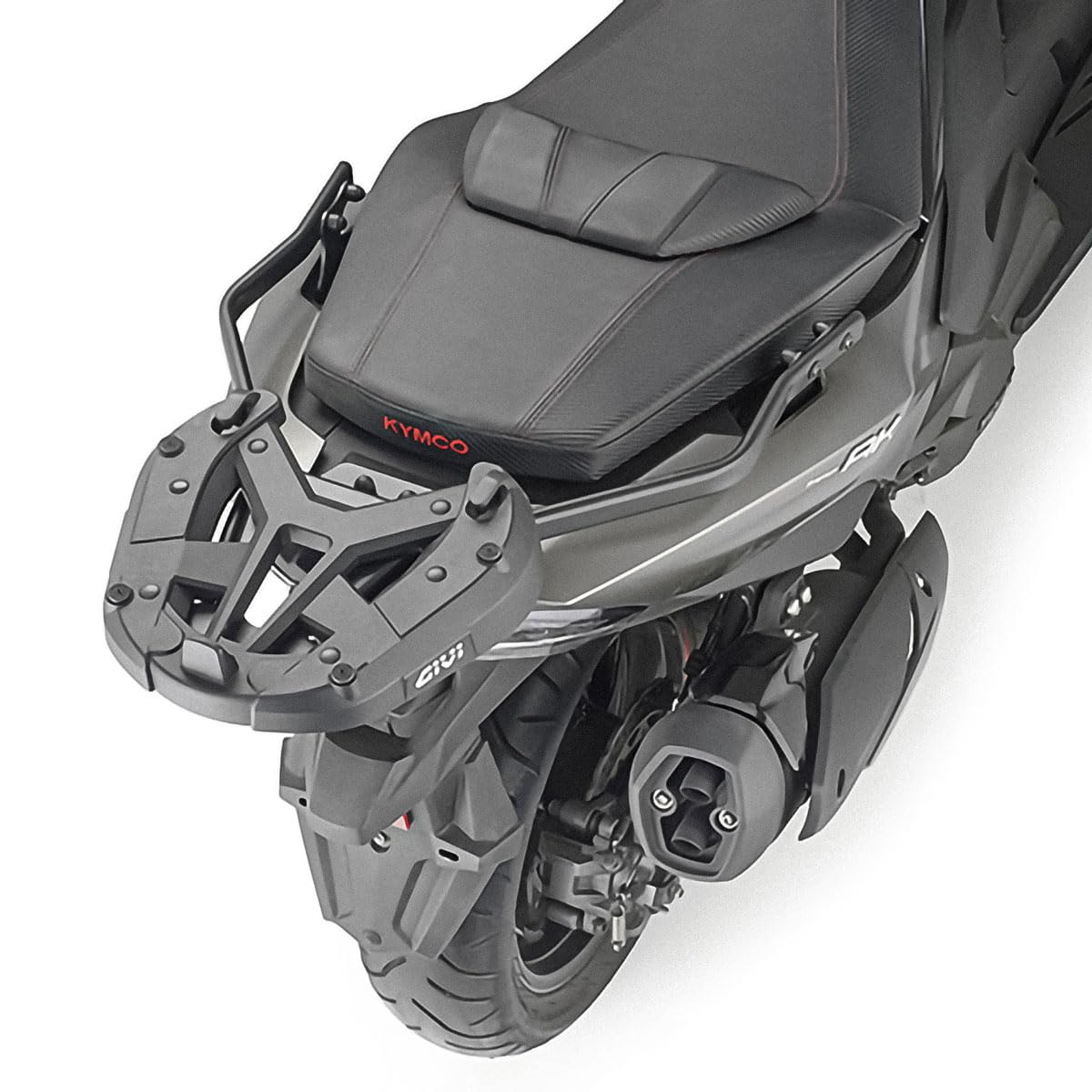

GIVI SR6122 Top Box Luggage Rack installed on a motorcycle, showing a black and silver GIVI top box mounted securely.

Image: The GIVI SR6122 luggage rack with a GIVI top box mounted on the rear of a motorcycle. The rack provides a stable base for the top box, which features a black and silver design with red accents.

การติดตั้งและการตั้งค่า

เนื้อหาแพ็คเกจ

  • GIVI SR6122 Specific Rear Rack Kit
  • Mounting hardware (bolts, washers, spacers)
  • Installation instructions (refer to this manual)

เครื่องมือที่จำเป็น

  • ชุดประแจเมตริก
  • ชุดกุญแจอัลเลน
  • Torque wrench (recommended for proper fastener tightening)
  • Screwdriver (Phillips and/or flathead, depending on motorcycle model)

ขั้นตอนการติดตั้ง

บันทึก: Always refer to your motorcycle's service manual for specific instructions on removing and reattaching components. Ensure the motorcycle is stable on a center stand or paddock stand before beginning installation.

  1. Prepare Motorcycle: Remove any existing rear rack, passenger grab handles, or body panels as required to access the mounting points. Store removed parts safely.
  2. ระบุจุดติดตั้ง: Locate the designated mounting points on your motorcycle's rear frame or subframe. These are typically where the original grab handles or a factory rack would attach.
  3. ติดวงเล็บ: Secure the GIVI SR6122 support brackets to the motorcycle's mounting points using the provided hardware. Do not fully tighten bolts at this stage.
  4. Position Rack Plate: Place the GIVI rack plate onto the support brackets. Align the holes on the rack plate with the corresponding holes on the brackets.
  5. Secure Rack Plate: Attach the rack plate to the support brackets using the remaining hardware. Ensure all components are correctly aligned.
  6. ขันสกรูยึดทั้งหมดให้แน่น: Once all components are in place and aligned, progressively tighten all bolts to the manufacturer's specified torque settings. Start from the center and work outwards.
  7. ประกอบรถจักรยานยนต์ใหม่: Reinstall any removed body panels or components. Ensure all parts are securely fastened.
  8. การตรวจสอบขั้นสุดท้าย: Verify that the rack is securely mounted and does not wobble. Check for any loose bolts or interference with other motorcycle components.

การดำเนินการ

Attaching a GIVI Top Box (Monokey/Monolock)

  1. Ensure the top box is unlocked.
  2. Align the front hooks of the top box with the corresponding slots on the front of the GIVI rack plate.
  3. Lower the rear of the top box onto the rack plate until the rear locking mechanism engages with the plate.
  4. Press down firmly on the top box until you hear a "click," indicating it is securely locked.
  5. Verify the top box is securely attached by gently pulling upwards on it.

Detaching a GIVI Top Box (Monokey/Monolock)

  1. Insert the key into the top box lock and turn it to the unlock position.
  2. Press the release button (typically located near the lock mechanism).
  3. While holding the release button, lift the rear of the top box and slide it backward to disengage the front hooks.
  4. Carefully remove the top box from the rack.

ความจุน้ำหนัก

Always adhere to the maximum weight capacity specified by GIVI for the SR6122 rack and your specific top box. Overloading can affect motorcycle handling and stability. Consult your motorcycle's owner's manual for its maximum load capacity.

การซ่อมบำรุง

การทำความสะอาด

  • Clean the rack regularly with mild soap and water.
  • หลีกเลี่ยงสารทำความสะอาดที่มีฤทธิ์กัดกร่อนหรือตัวทำละลายที่อาจทำลายพื้นผิวได้
  • ล้างออกให้สะอาดและเช็ดให้แห้งด้วยผ้านุ่ม

การตรวจสอบ

  • Periodically inspect all mounting bolts for tightness. Re-tighten to specified torque if necessary.
  • Check the rack for any signs of damage, cracks, or corrosion.
  • Ensure the top box locking mechanism operates smoothly.

การแก้ไขปัญหา

ปัญหาทั่วไปและแนวทางแก้ไข

ปัญหา สาเหตุที่เป็นไปได้ สารละลาย
Rack feels loose or wobbly. น็อตยึดไม่ได้ขันแน่นเพียงพอ Check and re-tighten all mounting bolts to the specified torque.
Top box does not attach securely. Misalignment or obstruction in the locking mechanism. Ensure the top box is correctly aligned with the rack plate. Check for debris in the locking mechanism.
Difficulty detaching top box. Lock mechanism stiff or jammed. Apply a small amount of lubricant to the lock mechanism. Ensure the key is fully turned and the release button is pressed correctly.

ข้อมูลจำเพาะ

คุณสมบัติ รายละเอียด
หมายเลขรุ่น เอสอาร์6122
ยี่ห้อ กีวี่
ความเข้ากันได้ Specific motorcycle models (check GIVI fitment guide)
Top Box System Designed for GIVI Monokey or Monolock top cases
วัสดุ Typically steel or aluminum (specifics may vary)
สี Multicolor (as per product listing, typically black)
ขนาดพัสดุ 40 x 40 x 40 ซม.
น้ำหนักสินค้า 3 กก.

การรับประกันและการสนับสนุน

For warranty information, technical support, or replacement parts, please contact GIVI directly or refer to their official webไซต์ โปรดเก็บใบเสร็จรับเงินไว้เป็นหลักฐานการซื้อ
