Wokyo P13 Hearing Aid Battery Charger Station User Manual

1. บทนำ

Thank you for choosing the Wokyo P13 Hearing Aid Battery Charger Station. This compact and convenient charger is designed to provide reliable power for your size 13 rechargeable hearing aid batteries, offering an environmentally friendly and economical alternative to disposable batteries. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your device.

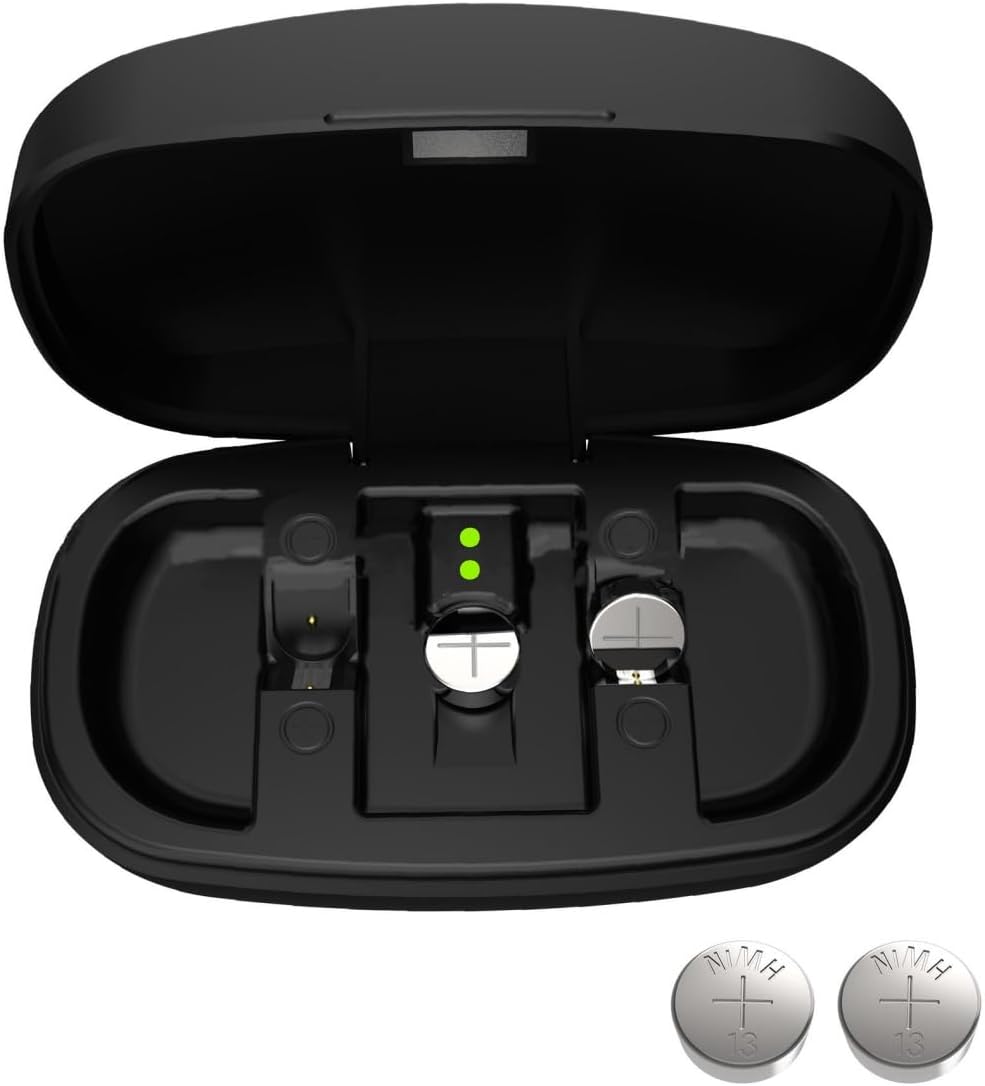

Figure 1: Wokyo P13 Hearing Aid Battery Charger Station with two size 13 rechargeable batteries.

2. ข้อมูลด้านความปลอดภัย

• Keep the charger and batteries away from water and moisture.
• Do not attempt to disassemble or modify the charger or batteries.
• Use only the specified Type-C charging cable and a compatible power source (5V).
• เก็บให้พ้นจากมือเด็กและสัตว์เลี้ยง
• กำจัดแบตเตอรี่เก่าตามข้อบังคับท้องถิ่น
• หลีกเลี่ยงอุณหภูมิที่สูงหรือต่ำเกินไป

3. เนื้อหาบรรจุภัณฑ์

• 1 x Wokyo P13 Hearing Aid Battery Charger Station
• 2 x 28maH Rechargeable Silver-Zinc Batteries (Size 13)
• สายชาร์จ 1 x USB Type-C

4. สินค้าหมดview

The Wokyo P13 charger station is designed for ease of use and portability. It features two charging slots for size 13 batteries and indicator lights to show charging status.

Figure 2: Key features of the Wokyo P13 Rechargeable Hearing Aid Batteries and Charger.

5. การตั้งค่าและการชาร์จครั้งแรก

5.1 การเชื่อมต่อเครื่องชาร์จ

To begin, connect the provided USB Type-C charging cable to the charging port on the back of the charger station. Plug the other end of the USB cable into a compatible 5V power source (e.g., a USB wall adapter, computer USB port, or power bank).

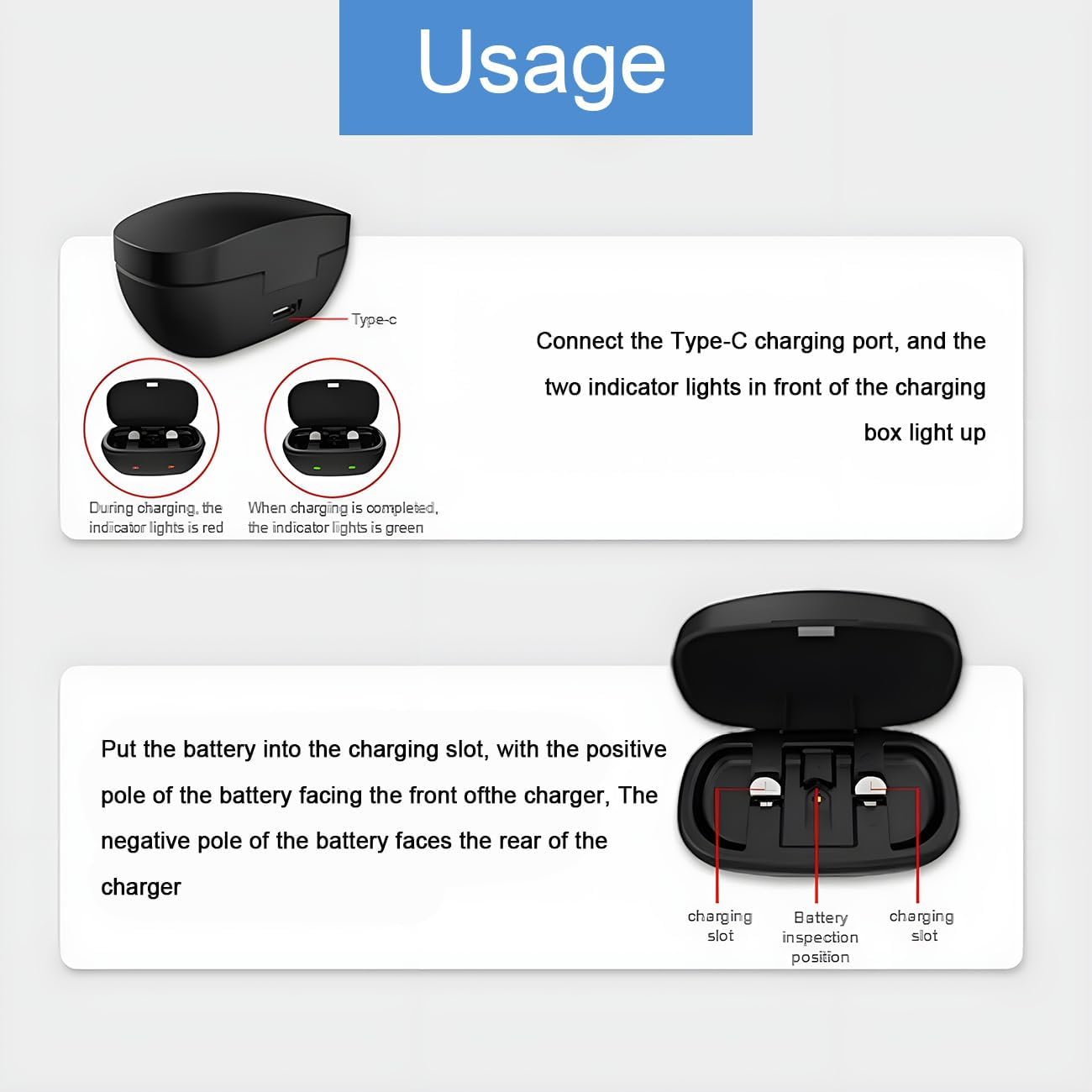

Figure 3: Location of the Type-C charging port and indicator light states.

5.2 การใส่แบตเตอรี่

Carefully place the size 13 rechargeable batteries into the charging slots. Ensure the positive pole of the battery (marked with a '+' or flat side) faces the front of the charger, and the negative pole faces the rear. The two indicator lights on the front of the charging box will illuminate.

6. การดำเนินการ

6.1 กระบวนการชาร์จ

When the batteries are correctly inserted and the charger is connected to power, the indicator light for each battery will turn สีแดง, indicating that the battery is charging. A full charge typically takes approximately 6 hours. After 8 hours of full charge, the indicator lights will become สีเขียว, signifying that the batteries are fully charged and ready for use.

Figure 4: Battery insertion and indicator light status.

6.2 อายุการใช้งานแบตเตอรี่

Each 28maH battery provides up to 25 hours of use for non-Bluetooth hearing aids on a 6-hour charge. For Bluetooth hearing aids, the battery life may be reduced to approximately 4 hours after a full charge.

7. การบำรุงรักษาและการดูแล

7.1 การทำความสะอาด

Wipe the charger station and batteries with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.

7.2 พื้นที่จัดเก็บ

Store the charger and batteries in a cool, dry place when not in use. Avoid prolonged exposure to direct sunlight or extreme temperatures.

7.3 Environmental Benefits and Longevity

One Wokyo rechargeable battery can be used for 300-500 charging cycles, which is equivalent to 2-3 years of disposable battery usage. By using rechargeable batteries, you can significantly reduce environmental pollution by avoiding the disposal of 50-200 single-use batteries per year.

Figure 5: Environmental and economic advantages of Wokyo rechargeable batteries.

8 การแก้ไขปัญหา

8.1 Battery Not Charging / Indicator Light Issues

If the battery does not appear to be charging (indicator light remains green when it should be red, or no light), it may be due to poor contact between the battery and the charger interface. In this case, please rotate or gently adjust the battery within the charging slot until the indicator light turns สีแดง.

If the indicator light is สีเขียว when you just put a partially charged battery on the charger, it means that the battery may be poorly exposed or not making proper contact. Re-adjust the battery.

8.2 อายุการใช้งานแบตเตอรี่ลดลง

If you experience significantly reduced battery life, ensure the batteries are fully charged (green indicator light). Battery performance can vary based on hearing aid model, usage patterns (e.g., Bluetooth streaming), and battery age. If issues persist, consider replacing the batteries after 300-500 cycles.

9. ข้อมูลจำเพาะ

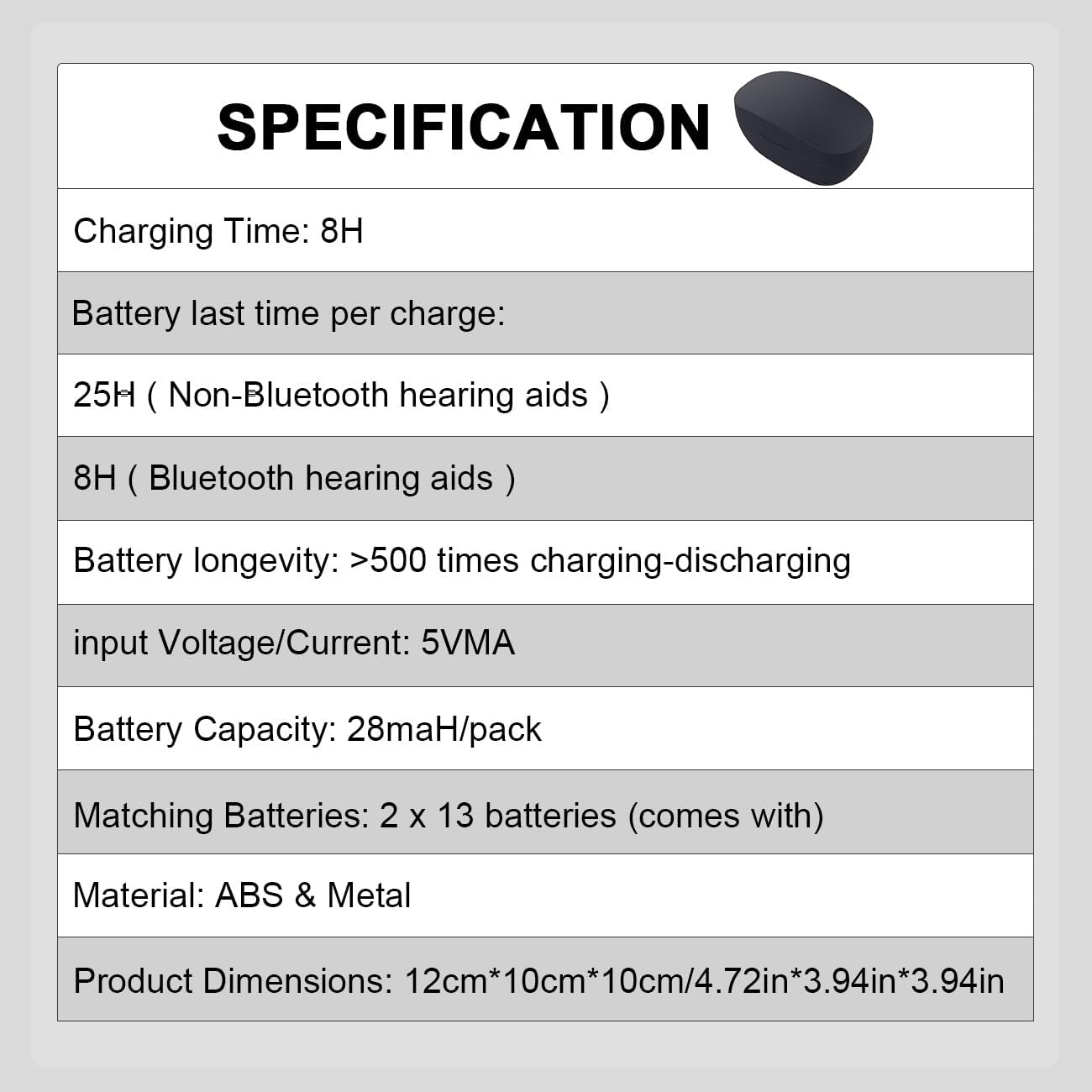

รูปที่ 6: ข้อมูลจำเพาะทางเทคนิคโดยละเอียด

10. การรับประกันและการสนับสนุน

For warranty information and customer support, please refer to the product packaging or contact Wokyo customer service through the retailer's platform where the product was purchased. Please retain your proof of purchase for any warranty claims.
