VLAND LED Tail Lights Instruction Manual

1. บทนำ

This manual provides detailed instructions for the installation, operation, and maintenance of your new VLAND LED Tail Lights. These tail light assemblies are designed to enhance the rear lighting of your vehicle with advanced LED technology and dynamic features. Please read this manual thoroughly before installation and operation to ensure proper function and safety.

2. คุณสมบัติของผลิตภัณฑ์

• Dynamic Animation DRL: Features a breathing light and choreographed sequence upon vehicle lock/unlock.
• Amber Switchback Turn Signals: Full LED turn signals with amber illumination.
• Full LED Output: No additional bulbs required for running, brake, reverse, or turn signal functions.
• โครงสร้างทนฝนและแดด: Designed to withstand rigorous weather conditions, sealed against moisture and dust (IP67 rated).
• ติดตั้งง่าย: Plug-and-play design with direct replacement for factory units. Professional installation is recommended.

3. ความเข้ากันได้ของยานพาหนะ

These VLAND LED Tail Lights are compatible with the following models:

• Fourth Generation Dodge Ram 1500: 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
• Ram 1500 Classic: 2019, 2020, 2021, 2022, 2023, 2024
• Ram 2500/3500: 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018

Note: Fits all models (Factory Halogen & LED).

4. เนื้อหาบรรจุภัณฑ์

โดยทั่วไปแพ็คเกจจะประกอบด้วย:

• VLAND LED Tail Light Assemblies (Left and Right)
• Necessary Wiring Harnesses
• คำแนะนำในการติดตั้ง

5. คำแนะนำในการติดตั้ง

Professional installation is recommended for optimal results. Follow these general steps for installation:

5.1. ก่อนการติดตั้ง

• ตรวจสอบให้แน่ใจว่ารถดับเครื่องแล้วและดึงเบรกมือเรียบร้อยแล้ว
• Gather necessary tools (e.g., screwdriver, wrench).

5.2. Step-by-Step Guide

1. Remove the existing tail light assembly by unscrewing the retaining bolts.
2. Carefully disconnect the factory wiring harness from the old tail light.
3. Connect the new VLAND LED Tail Light assembly to the vehicle's wiring harness. Ensure all connections are secure.
4. Mount the new tail light assembly into position and secure it with the retaining bolts.
5. ทำซ้ำขั้นตอนสำหรับอีกด้านหนึ่ง
6. Test all light functions (running lights, brake lights, turn signals, reverse lights) before final use.

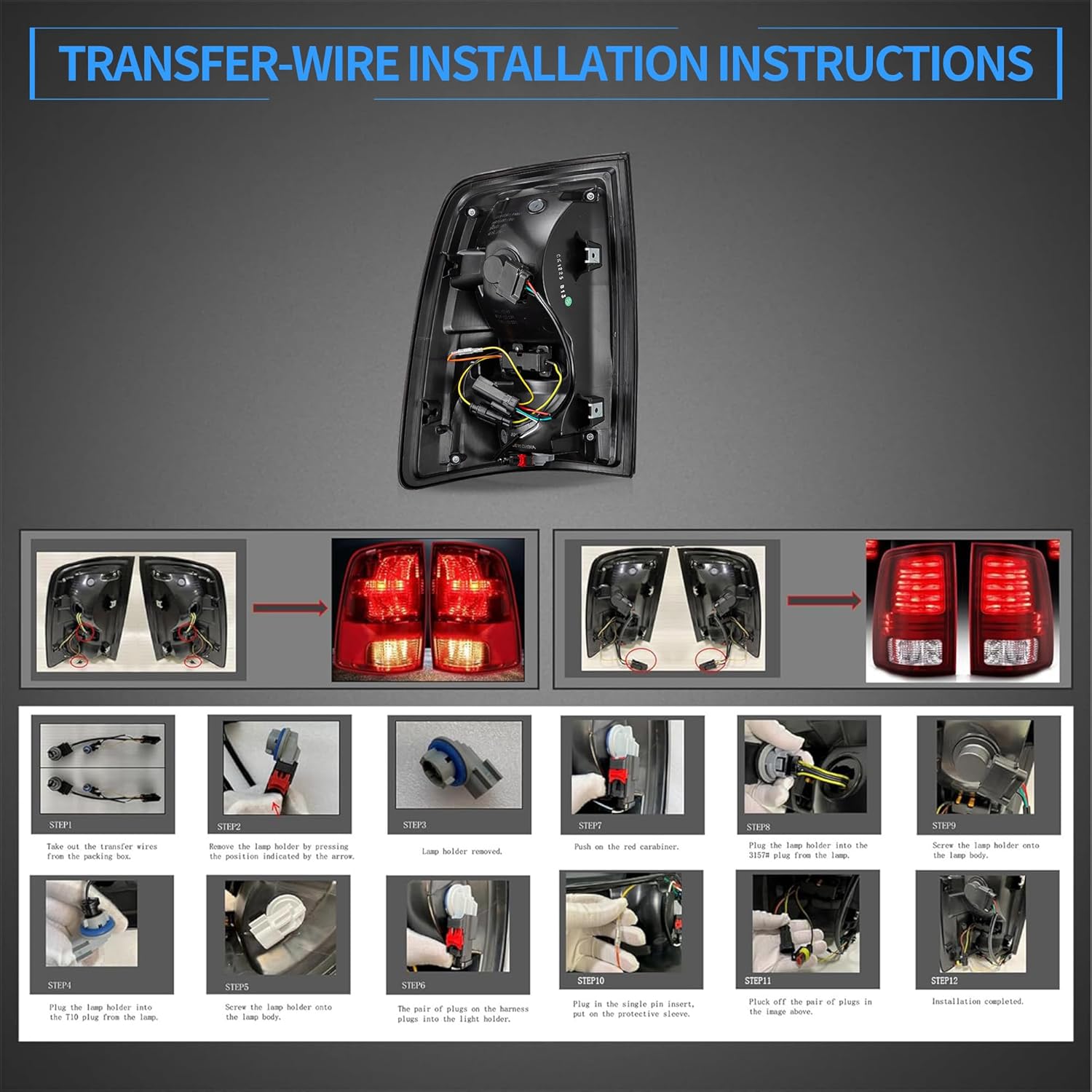

Image: VLAND LED Tail Light with sequential turn signal indicator.

Image: VLAND LED Tail Lights installed on a Dodge Ram truck.

5.3. วิดีโอการติดตั้ง

6. คู่มือการใช้งาน

The VLAND LED Tail Lights operate automatically with your vehicle's existing lighting controls. Here's how the different functions appear:

• ไฟวิ่ง: Illuminate with a dynamic animation sequence when activated.
• ไฟเบรก: Bright red illumination when the brake pedal is pressed.
• สัญญาณไฟเลี้ยว: Amber sequential illumination indicating turns.
• ไฟถอยหลัง: Bright white illumination when the vehicle is in reverse.

Image: Illustration of various light functions: Running Light (with Dynamic Animation), Brake Light, Light Off, Reverse Light, and Turn Signal with Sequential animation.

6.1. Operation Videos

7. การบำรุงรักษา

To ensure the longevity and optimal performance of your VLAND LED Tail Lights, follow these maintenance guidelines:

• Regularly clean the tail light lenses with a soft cloth and mild automotive cleaner to remove dirt and debris.
• Avoid using abrasive cleaners or harsh chemicals that could damage the lens or housing.
• ตรวจสอบสายไฟและจุดเชื่อมต่อเป็นระยะๆ เพื่อดูว่ามีร่องรอยการสึกหรอหรือความเสียหายหรือไม่

7.1. Addressing Moisture/Fogging

Moisture or fogging inside the tail light assembly can occur due to temperature changes or environmental factors. Here are some tips:

• ใช้ความร้อน: Gently apply heat to the lenses using a hairdryer or heat gun to help dry out condensation.
• การได้รับแสงแดด: Park your vehicle in direct sunlight to naturally dry out the moisture.
• ให้แห้ง: If condensation persists, ensure the vehicle is kept away from excessive water exposure, such as during heavy rain or car washes. Allow the lights to dry out naturally over time.

Image: Explanation of moisture ingress in lights.

Image: Solutions for clearing foggy lights.

8 การแก้ไขปัญหา

If you encounter any issues with your VLAND LED Tail Lights, consider the following:

• ไฟไม่ทำงาน: Double-check all wiring connections to ensure they are secure and properly seated. Verify that the vehicle's fuses related to the tail lights are intact.
• ข้อความแสดงข้อผิดพลาด: Some vehicles may display error messages if the new LED lights draw different power than the original halogen bulbs. This may require additional resistors (if not already integrated) or specific vehicle programming. Consult a professional if issues persist.
• ผลิตภัณฑ์ที่บกพร่อง: In the event merchandise is damaged or becomes defective, please refer to the Warranty and Support section.

9. ข้อมูลจำเพาะ

10. การรับประกันและการสนับสนุน

Please retain all packaging, labels, and user manuals upon receipt of your product. In the event that merchandise is damaged, becomes defective, or needs to be returned, please contact VLAND customer support. Be prepared to provide the product label, video, and picture proof that clearly shows the defect to facilitate the support process.

หากต้องการความช่วยเหลือเพิ่มเติม โปรดไปที่ VLAND Store on Amazon.
