Ogdni GMC89 Guitar Humbucker Pickups Set Instruction Manual

การแนะนำ

This manual provides detailed instructions for the installation, operation, and maintenance of your Ogdni GMC89 Guitar Humbucker Pickups Set. This set includes both neck and bridge double-coil humbucker pickups, designed for 6-string electric guitars that accommodate humbucker installations. Please read this manual thoroughly before proceeding with installation to ensure proper function and longevity of your product.

สินค้าเกินview

The Ogdni GMC89 Humbucker Pickups Set features Alnico 5 magnets, 6 non-adjustable slug pole pieces, and 6 adjustable screw pole pieces. The pickups are encased in a durable rosewood cover, providing both aesthetic appeal and protection. This set is engineered to deliver a high-output, clean tone for your electric guitar.

ภาพ: ด้านบน view of the Ogdni GMC89 Humbucker Pickups Set, showing the gold-colored rosewood covers and mounting screws.

ภาพ: มุมเอียง view of the Ogdni GMC89 Humbucker Pickups Set, highlighting the gold finish and construction.

เนื้อหาแพ็คเกจ

เมื่อเปิดบรรจุภัณฑ์ ตรวจสอบว่าส่วนประกอบทั้งหมดอยู่ครบและไม่ได้รับความเสียหาย:

• 2 x Humbucker Pickups (one neck, one bridge)
• สกรูยึด 8 ตัว
• Springs (pre-installed or separate for mounting)

Image: The Ogdni GMC89 Humbucker Pickups Set, showing one pickup with its wiring and the included mounting screws.

การติดตั้งและการตั้งค่า

Installation of humbucker pickups requires basic soldering skills and familiarity with guitar electronics. If you are unsure about any step, it is recommended to seek assistance from a qualified guitar technician.

1. การตระเตรียม: Ensure your guitar is unplugged and strings are removed or loosened to access the pickup cavities.
2. Remove Old Pickups: Carefully desolder and remove the existing pickups from your guitar. Note the wiring configuration for reference.
3. Mount New Pickups: Place the new Ogdni humbucker pickups into the appropriate neck and bridge positions. Use the provided screws and springs to secure them. The springs provide tension for height adjustment.
4. การเดินสายไฟ: Connect the pickup wires to your guitar's electronics (potentiometers, switch, output jack) according to your guitar's wiring diagram or a standard humbucker wiring scheme. The pickups feature multi-conductor wiring for various coil-splitting or phase options. Refer to the wiring diagram provided below for standard connections.
5. ทดสอบ: Before reassembling your guitar, temporarily plug it into an amplifier and test the functionality of both pickups and controls. Adjust pickup height as needed for optimal tone and output.
6. ประกอบกลับเข้าที่: Once satisfied with the sound, reassemble your guitar, ensuring all connections are secure and no wires are pinched.

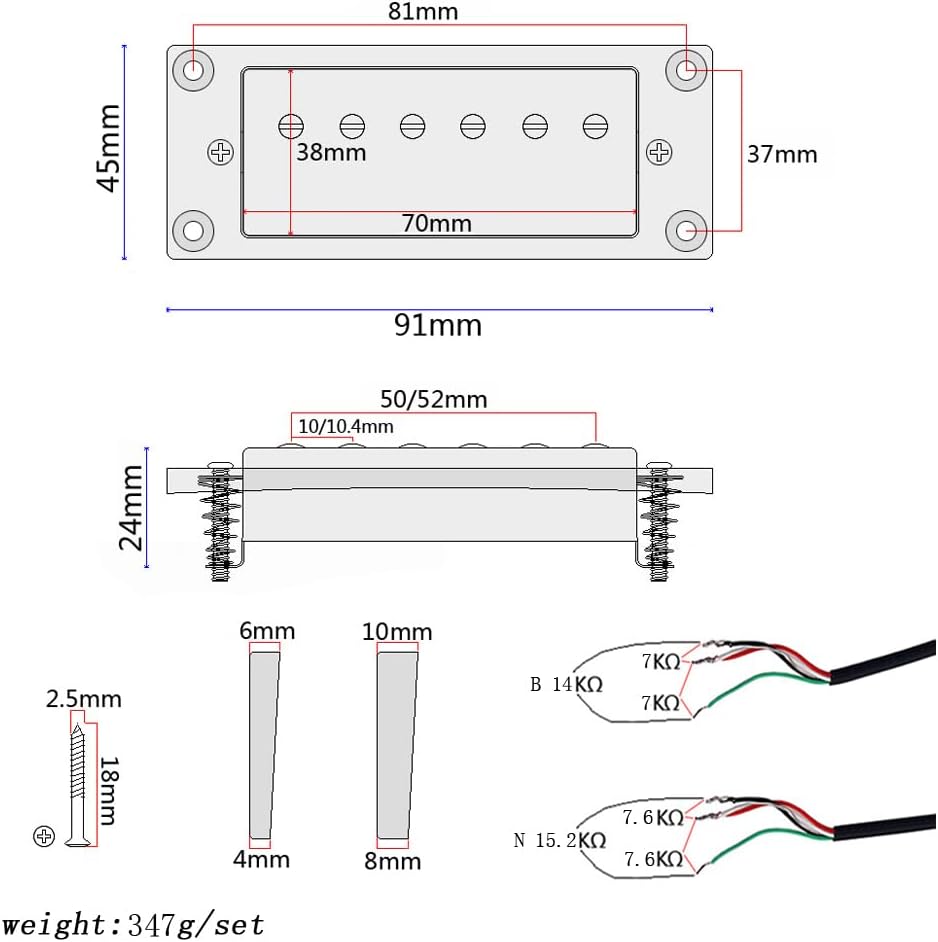

Image: Detailed dimensions of the Ogdni GMC89 Humbucker Pickups and a basic wiring color code diagram for installation.

Operating and Tone Characteristics

The Ogdni GMC89 Humbucker Pickups are designed to provide a powerful and clear tone, characteristic of Alnico 5 magnets. Humbuckers are known for their noise-canceling properties, reducing unwanted hum and interference, making them suitable for various musical genres.

• Neck Pickup (HS-2(N)): With a resistance of approximately 17K, the neck pickup typically produces warmer, smoother tones, ideal for rhythm playing, blues, and jazz.
• Bridge Pickup (HS-2(B)): With a resistance of approximately 18.6K, the bridge pickup offers a brighter, more aggressive tone with higher output, suitable for lead playing, rock, and heavier genres.

Adjusting the pickup height relative to the strings can significantly impact the output and tone. Experiment with different heights to find your preferred sound. Lowering the pickups can result in a cleaner, more articulate sound, while raising them increases output and sustain.

การซ่อมบำรุง

Proper maintenance will ensure the longevity and optimal performance of your humbucker pickups.

• การทำความสะอาด: Gently wipe the pickup covers with a soft, dry cloth to remove dust and fingerprints. Avoid using abrasive cleaners or solvents, as these can damage the finish.
• การตรวจสอบ: Periodically check the wiring connections for any signs of corrosion or loose solder joints. Ensure the mounting screws are snug but not overtightened.
• การป้องกัน: While the rosewood cover is durable, avoid exposing the pickups to extreme temperatures or excessive moisture.

การแก้ไขปัญหา

If you encounter issues with your pickups, consider the following common troubleshooting steps:

• No Sound or Weak Output:
  • Check all wiring connections for proper soldering and continuity.
  • Ensure the pickup selector switch is functioning correctly.
  • Verify that volume and tone potentiometers are working.
  • ตรวจสอบขั้วต่อเอาต์พุตว่ามีการเชื่อมต่อหลวมหรือไม่
• ฮัมหรือเสียงรบกวนมากเกินไป:
  • While humbuckers are designed to reduce noise, ensure proper grounding throughout the guitar's electronics.
  • Check for any unshielded wires or interference from external electronic devices.
  • Verify that the pickup is correctly wired in humbucking mode (if applicable).
• น้ำเสียงไม่สอดคล้องกัน:
  • Check pickup height adjustments. Uneven height can affect string balance.
  • Ensure pole pieces are correctly aligned with the strings.

If problems persist after these checks, it is advisable to consult a professional guitar technician.

ข้อมูลจำเพาะ

ข้อมูลการรับประกัน

Specific warranty details for the Ogdni GMC89 Humbucker Pickups Set are not provided in this manual. For information regarding warranty coverage, terms, and conditions, please refer to the product packaging or contact the seller directly through your purchase platform.

สนับสนุน

For technical assistance, installation queries, or any other support needs related to your Ogdni GMC89 Humbucker Pickups Set, please contact the seller or manufacturer. You can typically find contact information on your purchase receipt or the product listing page.
