Sunrosa Frameless Double Sliding Tub Shower Door

1. บทนำ

Thank you for choosing the Sunrosa Frameless Double Sliding Tub Shower Door. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new shower door. Please read all instructions carefully before beginning installation and keep this manual for future reference.

This product is designed to provide a modern and functional enclosure for your tub or shower area, featuring durable tempered glass and a smooth soft-close sliding system.

2. ข้อมูลด้านความปลอดภัย

Your safety is paramount. Please adhere to the following safety guidelines during installation and use:

• สวมใส่อุปกรณ์ป้องกันส่วนบุคคลที่เหมาะสมเสมอ รวมถึงแว่นตานิรภัยและถุงมือ ระหว่างการติดตั้ง
• This product contains heavy glass panels. A minimum of two people is required for safe handling and installation.
• Ensure the installation surface (walls, tub rim) is structurally sound and capable of supporting the weight of the shower door.
• Do not use power tools near water or in damp conditions without proper safety precautions.
• Handle glass panels with extreme care. Avoid striking edges or corners, as this can cause the glass to shatter.
• ให้เด็กและสัตว์เลี้ยงอยู่ห่างจากบริเวณการติดตั้ง
• After installation, ensure all screws and fasteners are securely tightened.

3. สินค้าหมดview

3.1 ขนาดและส่วนประกอบ

The Sunrosa Frameless Double Sliding Tub Shower Door is designed for adjustable installation. Please verify your measurements before purchase and installation.

Figure 3.1: Shower Door Dimensions. Note: C indicates the height from the bottom of the top track to the floor.

• ปรับความกว้างได้: 56 1/8" - 60" (1424-1524 mm)
• ความสูง: 60 นิ้ว (1524 มม.)
• เปิดรับผู้สมัครแบบไม่ต้องนัดหมายล่วงหน้า: 24" - 28"
• ความหนาของกระจก: 5/16 นิ้ว (8 มม.)

3.2 คุณสมบัติหลัก

• วัสดุพรีเมี่ยม: Shower door frame and handle are crafted from high-quality stainless steel, ensuring resistance to corrosion and rust in humid environments. This provides a stable and durable structure.
• Safety Tempered Glass: Constructed with 5/16" (8mm) SGCC certified clear tempered glass, offering strength and resistance against breakage. The design is reversible for left or right-side installation.

Figure 3.2: 5/16" (8mm) Clear Tempered Glass.

• Soft-Close System: Features robust stainless steel buffer pulleys that glide smoothly along the tracks. An anti-jumping design ensures effortless and quiet sliding operation.

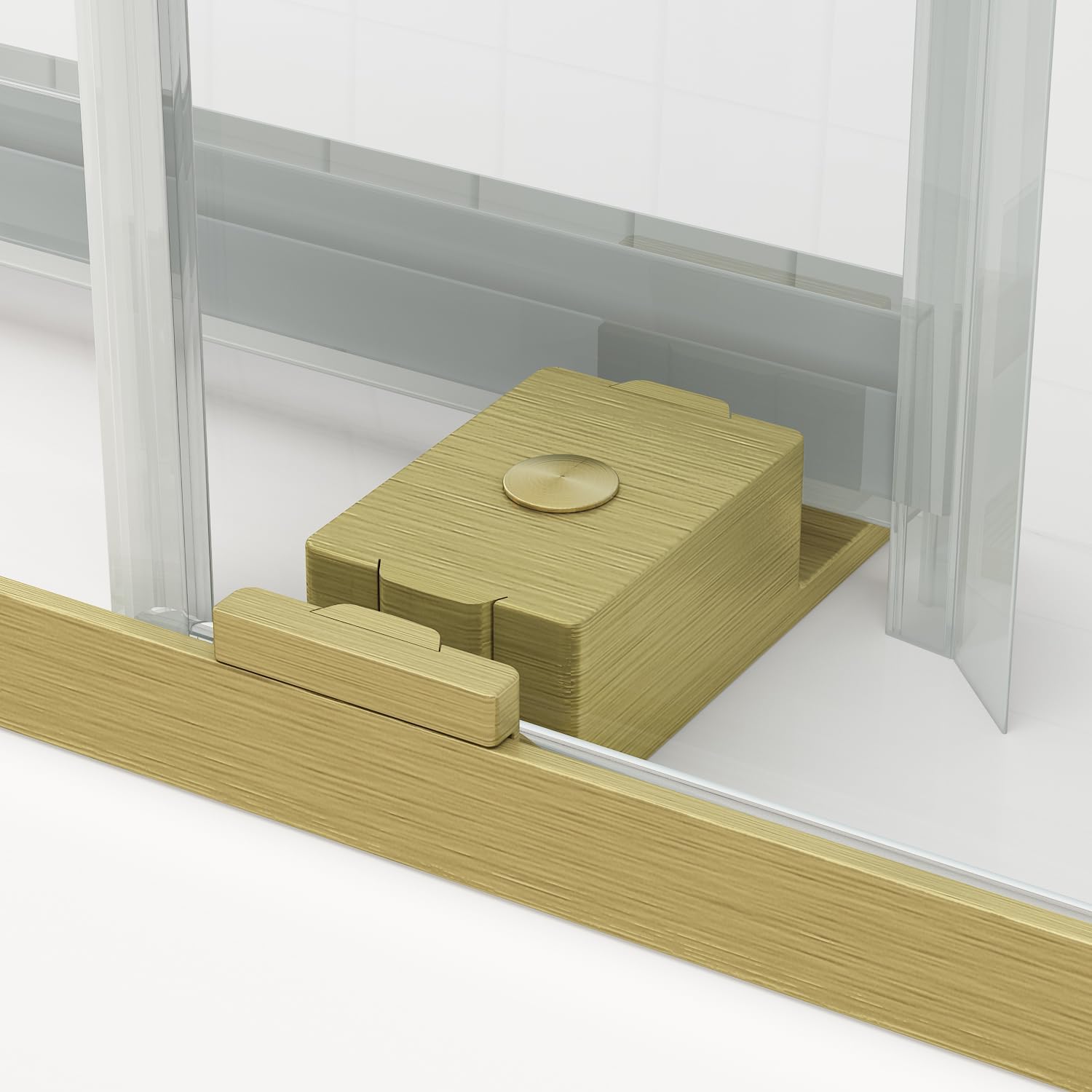

Figure 3.3: Soft-Close System Mechanism.

• การกักเก็บน้ำ: A double sliding seal strip runs along the entire length of the glass panels, effectively keeping bathwater within the enclosure and ensuring your bathroom floor remains dry.
• Easy-Clean Nano Coating: The glass is treated with a generous nano-coating, which helps repel water and soap scum, making cleaning easier and reducing stain buildup.

Figure 3.4: Generous Nano Coating Benefits.

4. การตั้งค่าและการติดตั้ง

4.1 ก่อนที่คุณจะเริ่มต้น

Ensure you have all necessary parts and tools before starting the installation. Refer to the packing list for included components.

เครื่องมือที่คุณอาจต้องการ:

• สายวัด
• ระดับ
• เจาะ
• Drill Bits (appropriate for wall material)
• ไขควง (ปากแฉกและปากแบน)
• ปืนยิงซิลิโคนและซิลิโคนยาแนว (กันเชื้อรา)
• ดินสอ
• มีดอเนกประสงค์

4.2 Step-by-Step Installation Guide

While detailed steps are provided in the separate installation manual included with your product, here is a general overview ของกระบวนการ:

1. การวัดและเตรียมการ: Carefully measure your tub or shower opening to confirm compatibility. Ensure the walls are plumb and the tub rim is level.
2. ติดตั้ง Wall Profiles: Secure the vertical wall profiles to the bathroom walls using appropriate fasteners. Use a level to ensure they are perfectly vertical.
3. Install Top and Bottom Tracks: Attach the top and bottom tracks to the wall profiles. Ensure the bottom track is properly aligned with the tub rim and the top track is level.
4. Install Fixed Glass Panel: Carefully place the fixed glass panel into its designated position within the tracks and secure it according to the instructions.
5. ติดตั้งแผงกระจกเลื่อน: Attach the rollers to the sliding glass panel and then carefully hang the panel onto the top track. Guide the bottom of the panel into the bottom track.
6. ติดตั้งที่จับ: Attach the handles to the glass panels.
7. Install Soft-Close Mechanism: Integrate the soft-close components into the track system as per the specific instructions to ensure smooth operation.
8. การใช้ยาแนว: Apply a continuous bead of mildew-resistant silicone sealant along the exterior joints of the shower door frame where it meets the walls and tub rim to ensure water containment. Allow adequate drying time before use.
9. การดำเนินการทดสอบ: Gently slide the doors back and forth to ensure smooth operation and proper engagement of the soft-close system. Check for any obstructions.

Note: The reversible design allows for installation on either the left or right side, depending on your bathroom layout.

5. Operating the Shower Door

The Sunrosa Frameless Double Sliding Tub Shower Door is designed for ease of use. To open or close the door, gently grasp the handle and slide the glass panel along the top and bottom tracks. The integrated soft-close system will engage as the door approaches its closed position, providing a smooth and quiet finish.

Figure 5.1: Shower Door Handle.

Avoid forcing the door or applying excessive pressure, as this can damage the rollers or tracks. If the door does not slide smoothly, refer to the troubleshooting section.

6. การบำรุงรักษา

Regular cleaning and maintenance will ensure the longevity and pristine appearance of your Sunrosa shower door.

6.1 การทำความสะอาดกระจก

Due to the easy-clean nano coating, maintaining the glass is simple:

• After each use, rinse the glass with clean water to remove soap residue.
• For routine cleaning, use a soft cloth or sponge with a mild, non-abrasive glass cleaner.
• Avoid using abrasive cleaners, scouring pads, or harsh chemicals (e.g., ammonia-based cleaners, bleach) as they can damage the nano coating and the glass surface.
• Wipe dry with a clean, lint-free cloth or squeegee to prevent water spots.

6.2 Cleaning the Metal Components

• Clean the brushed gold finish and other metal parts with a soft, damp ผ้าและสบู่ชนิดอ่อน
• Do not use abrasive cleaners, steel wool, or harsh chemicals, as these can scratch or damage the finish.
• Dry thoroughly after cleaning to prevent water spots and maintain the finish.

6.3 Track and Roller Maintenance

• Periodically inspect the top and bottom tracks for any debris, soap scum, or hair that might impede smooth operation. Clean as necessary.
• Check the rollers for smooth movement. If they become stiff, clean them and apply a small amount of silicone-based lubricant (do not use oil-based lubricants).

7 การแก้ไขปัญหา

If you encounter any issues with your shower door, refer to the table below for common problems and their solutions.

หากปัญหายังคงมีอยู่หลังจากพยายามแก้ไขปัญหาเหล่านี้แล้ว โปรดติดต่อฝ่ายสนับสนุนลูกค้า

8. ข้อมูลจำเพาะ

9. การรับประกันและการสนับสนุน

Sunrosa stands behind the quality of its products. This shower door comes with a standard manufacturer's warranty covering defects in materials and workmanship under normal use and service. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.

For technical assistance, replacement parts, or warranty claims, please contact Sunrosa Customer Support:

• Webเว็บไซต์: Visit the official Sunrosa website (if available, link not provided in source data)
• อีเมล: support@sunrosa.com (exampอีเมล)
• โทรศัพท์: 1-800-XXX-XXXX (เช่นample phone number)

Please have your model number (B0CQJ782NL) and proof of purchase ready when contacting support.
