Sunrosa Semi-Frameless Glass Shower Door

1. บทนำ

Thank you for choosing the Sunrosa Semi-Frameless Glass Shower Door. This manual provides essential information for the safe and proper installation, operation, and maintenance of your new shower door. Please read all instructions carefully before beginning installation or use.

คำอธิบายสินค้า

The Sunrosa Semi-Frameless Glass Shower Door is designed to enhance your bathroom with its elegant brushed gold finish and durable tempered glass. It features a single sliding door mechanism, offering a sleek and functional solution for your shower enclosure.

• Adjustable Dimensions: The shower door is adjustable from 47 2/8" to 48" in width and stands 76" high, accommodating various shower stall sizes.
• Safety Tempered Glass: Constructed with 5/16" (8 mm) SGCC certified clear tempered glass for enhanced safety and durability.
• วัสดุพรีเมี่ยม: Frame and handle are crafted from high-quality stainless steel, ensuring corrosion resistance and stability.
• Effective Water Containment: Features a sliding door seal strip to prevent water from escaping the shower area.
• การออกแบบแบบพลิกกลับได้: Can be installed for either left or right-side opening to suit your bathroom layout.

Image: The Sunrosa Semi-Frameless Glass Shower Door with brushed gold accents installed in a contemporary bathroom setting.

2. ข้อมูลด้านความปลอดภัย

Always prioritize safety during installation and use. Failure to follow these safety guidelines may result in injury or damage to the product.

• กระจกนิรภัย: The glass is tempered for safety. While highly durable, it can shatter into small, blunt pieces if impacted forcefully at the edges. Handle with extreme care.
• การติดตั้งโดยมืออาชีพ: Due to the weight and nature of glass, professional installation is highly recommended. If installing yourself, ensure you have adequate assistance.
• อุปกรณ์ป้องกัน: Always wear safety glasses, gloves, and appropriate footwear during installation.
• ความสมบูรณ์ของโครงสร้าง: Ensure the wall structure where the shower door will be mounted is sound and capable of supporting the weight of the door. Consult a professional if unsure.
• การปิดผนึกที่เหมาะสม: Ensure all seals are correctly installed to prevent water leakage, which can lead to slip hazards and water damage.
• เด็กและสัตว์เลี้ยง: Keep children and pets away from the installation area. Do not allow children to play with or near the shower door.

3. สินค้าหมดview

ขนาด

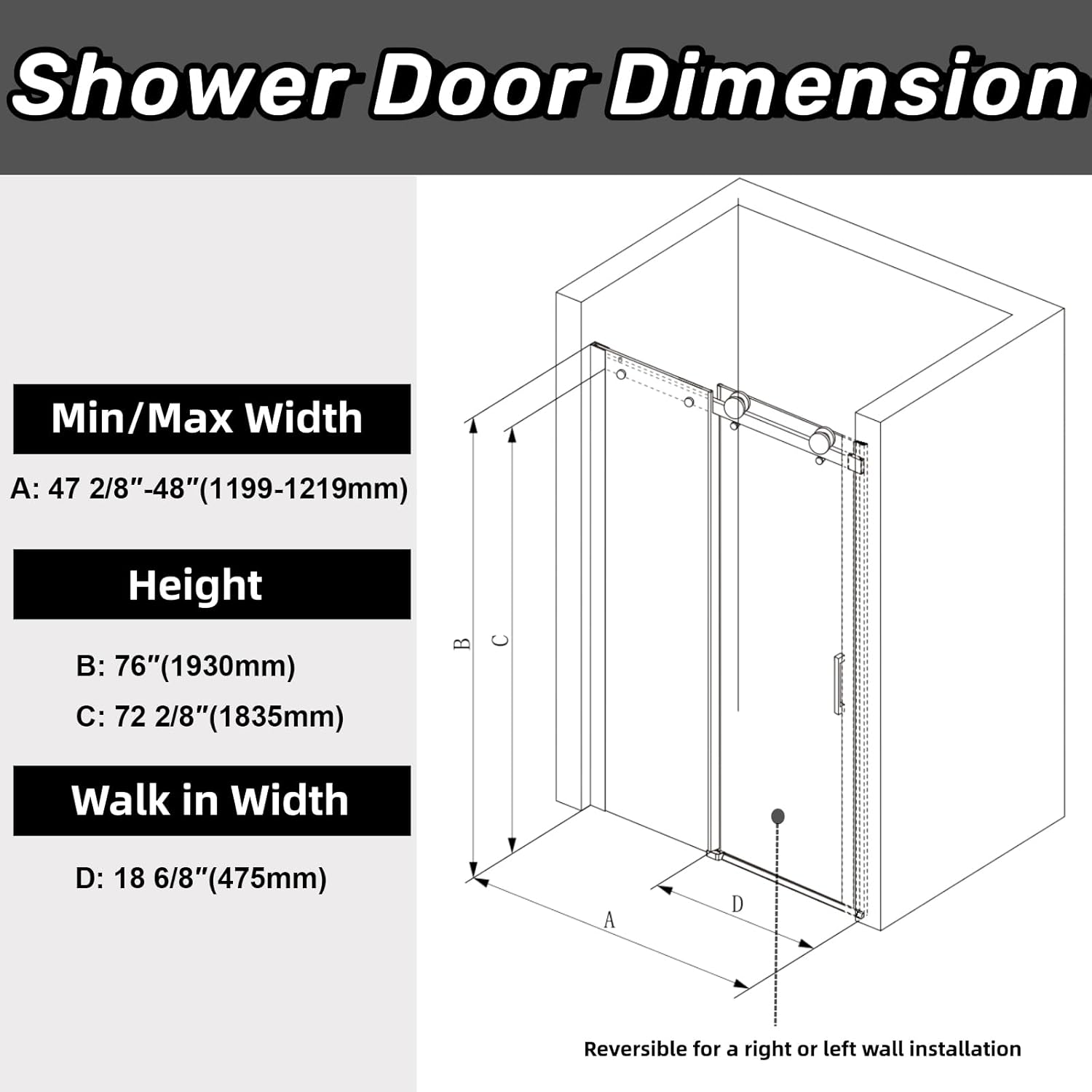

The following diagram illustrates the key dimensions of the Sunrosa Semi-Frameless Glass Shower Door. Please measure your shower space accurately before installation.

Image: Detailed dimension diagram for the shower door, indicating adjustable width, height, and walk-in opening.

• Min/Max Width (A): 47 2/8" - 48" (1199-1219mm)
• ความสูง (B): 76 นิ้ว (1930 มม.)
• Walk-in Width (D): 18 6/8 นิ้ว (475 มม.)

วัสดุ

The shower door is constructed from high-quality materials designed for durability and longevity in a bathroom environment.

• กระจก: 5/16" (8mm) SGCC Certified Clear Tempered Glass
• Frame & Handle: Premium Stainless Steel with Brushed Gold finish

Key Features in Detail

การติดตั้งแบบย้อนกลับ

The shower door is designed for reversible installation, allowing you to configure it for either a right or left-hand opening to best suit your bathroom layout and personal preference.

Image: Illustration demonstrating the flexibility of installing the door to open from either the right or left side.

Effective Water Containment

A specially designed sliding shower door seal strip is installed along the entire length of the glass. This feature effectively contains bathwater within the enclosure, ensuring the rest of your bathroom floor remains dry and safe.

ภาพ: ภาพระยะใกล้ view of the bottom seal strip effectively preventing water from splashing out of the shower enclosure.

Easy Cleaning Glass

The tempered glass is treated to be resistant to water staining and soap scum buildup, making cleaning and maintenance significantly easier. This helps maintain the pristine appearance of your shower door with minimal effort.

Image: A visual comparison illustrating how the easy-cleaning glass repels water droplets, reducing stains compared to untreated glass.

Smooth Sliding Rollers

The top-mounted rollers are designed for smooth and quiet operation, allowing the door to glide effortlessly along the track. Made from durable materials, they ensure long-lasting performance.

ภาพ: รายละเอียด view of the brushed gold rollers and the top track, highlighting the smooth sliding mechanism.

ด้ามจับออกแบบตามหลักสรีรศาสตร์

The shower door features a robust and ergonomically designed handle, providing a comfortable and secure grip for opening and closing the door. Its brushed gold finish complements the overall aesthetic.

Image: A close-up shot of the brushed gold handle, showcasing ดีไซน์และงานตกแต่ง

Stable Bottom Track

The bottom track provides additional stability and guidance for the sliding door, ensuring smooth movement and secure closure. It is designed to integrate seamlessly with the shower base.

ภาพ: รายละเอียด view of the bottom track, illustrating its role in guiding the sliding door.

4. การตั้งค่าและการติดตั้ง

Assembly is required for this product. Please read these instructions carefully before starting installation. It is highly recommended to have at least two people for installation due to the weight and size of the glass panels.

ก่อนที่คุณจะเริ่มต้น

• ตรวจสอบเนื้อหา: Unpack all components and check against the packing list to ensure all parts are present and undamaged. Do not proceed with installation if any parts are missing or damaged.
• วัดอย่างแม่นยำ: Double-check your shower opening dimensions against the product specifications to ensure a proper fit.
• เตรียมพื้นที่: Ensure the shower base/curb is level and clean. Clear the installation area of any obstructions.
• เครื่องมือที่จำเป็น (ไม่รวม):
  • สายวัด
  • ดินสอ
  • ระดับ
  • Drill with appropriate bits (for tile/masonry)
  • ชุดไขควง
  • ปืนยิงซิลิโคนและซิลิโคนยาแนว (กันเชื้อรา)
  • มีดอเนกประสงค์
  • แว่นตานิรภัยและถุงมือ

ขั้นตอนการติดตั้งทั่วไป

While detailed steps are provided in the separate installation guide included with your product, here is a general overview ของกระบวนการ:

1. การเตรียมผนัง: Mark and drill holes for the wall profiles according to the provided template. Ensure they are level and plumb.
2. ติดตั้ง Wall Profiles: Secure the vertical wall profiles to the bathroom wall using appropriate fasteners.
3. Assemble Top Track: Attach the top track to the wall profiles, ensuring it is level and securely fastened.
4. Install Fixed Glass Panel: Carefully position and secure the fixed glass panel into the wall profile and bottom track.
5. Install Sliding Door: Mount the rollers onto the sliding glass door and carefully hang it onto the top track. Adjust as necessary for smooth operation.
6. Install Handle and Seals: Attach the door handle and install all necessary seal strips (bottom, vertical, and anti-splash) to ensure water tightness.
7. ทาซิลิโคนซีลแลนท์: Apply a continuous bead of mildew-resistant silicone sealant along the exterior joints of the shower door frame and where it meets the wall and shower base. Allow adequate drying time before use.

5. การดำเนินการ

Using Your Shower Door

The Sunrosa Semi-Frameless Glass Shower Door operates with a single sliding panel. To open or close the door, gently grasp the handle and slide the door along the top and bottom tracks. Ensure there are no obstructions in the path of the door.

• การเคลื่อนไหวที่ราบรื่น: The door should slide smoothly and quietly. If you notice any resistance or noise, inspect the rollers and tracks for debris or misalignment.
• ปิดทำการโดยสมบูรณ์: Always ensure the door is fully closed before starting your shower to prevent water leakage.
• หลีกเลี่ยงการใช้กำลัง: Do not force the door open or closed. Excessive force can damage the rollers, tracks, or glass.

6. การบำรุงรักษาและการดูแล

Regular cleaning and maintenance will ensure the longevity and pristine appearance of your Sunrosa shower door.

การทำความสะอาด

• การทำความสะอาดกระจก: For daily cleaning, wipe down the glass panels with a soft cloth or squeegee after each use to prevent water spots and soap scum buildup. For deeper cleaning, use a non-abrasive glass cleaner specifically designed for shower doors. Avoid harsh chemicals, abrasive pads, or scouring powders, as these can damage the glass surface or protective coating.
• การทำความสะอาดฮาร์ดแวร์: Clean the brushed gold stainless steel frame and handle with a soft, damp cloth and mild soap. Rinse thoroughly and dry immediately to prevent water spots. Do not use abrasive cleaners, steel wool, or cleaners containing ammonia, bleach, or acid, as these can damage the finish.
• การทำความสะอาดแทร็ก: Regularly clean the top and bottom tracks to remove soap residue, hair, and other debris that can impede smooth door operation. Use a small brush or cloth to reach tight areas.

การดูแลทั่วไป

• การระบายอากาศ : Ensure proper ventilation in your bathroom to reduce humidity, which can contribute to mold and mildew growth.
• ตรวจสอบซีล: Periodically inspect the silicone sealant and rubber seals for any signs of wear, cracking, or detachment. Re-seal or replace as necessary to maintain water tightness.
• การหล่อลื่น: If the rollers begin to stick or squeak, a small amount of silicone-based lubricant can be applied to the roller bearings and tracks. Avoid oil-based lubricants, which can attract dirt.

7 การแก้ไขปัญหา

This section addresses common issues you might encounter with your shower door. If the problem persists, please contact customer support.

If you encounter an issue not listed here or if the suggested solutions do not resolve the problem, please refer to the Warranty and Customer Support section for assistance.

8. ข้อมูลจำเพาะ

Detailed technical specifications for the Sunrosa Semi-Frameless Glass Shower Door.

9. การรับประกันและการสนับสนุนลูกค้า

Sunrosa is committed to providing high-quality products and excellent customer service. If you have any questions, concerns, or encounter issues with your product, please do not hesitate to contact us.

นโยบายการคืนสินค้า

This product is eligible for a 30-day easy return policy, allowing for refunds or replacements as per the terms of purchase.

การติดต่อฝ่ายสนับสนุนลูกค้า

If you are not completely satisfied with your product or receive a defective item, we are always happy to resolve the issue. Please follow these steps to ensure a smooth resolution:

Image: Visual guide for contacting customer support and resolving product issues.

1. Contact the Seller: Navigate to your order history, click "Problem with order," and select "Contact seller."
2. Describe the Issue in Detail: Attach images showing the product issue in the message chat and provide a detailed description of the problem.
3. ปณิธาน: The seller will provide a solution, such as a complimentary replacement of damaged or missing parts, or other appropriate resolutions.

For direct inquiries, you may contact the Sunrosa Store through the platform where you made your purchase.

Note: No official product videos with 'Seller' as creator type were found in the provided data to embed in this manual.
