yeezoo 5-Rung Window Well Ladder Instruction Manual

1. บทนำ

Thank you for choosing the yeezoo 5-Rung Window Well Ladder. This heavy-duty steel ladder is designed to provide a reliable and safe means of egress from basement window wells during emergencies. Please read this manual thoroughly before installation and use to ensure proper setup and safe operation.

Image 1.1: The yeezoo 5-Rung Window Well Ladder, Model Straight-5STEPS. This image shows the overall design of the ladder.

2. ข้อมูลด้านความปลอดภัย

ความปลอดภัยของคุณคือสิ่งสำคัญที่สุด ปฏิบัติตามแนวทางด้านความปลอดภัยทั้งหมดเพื่อป้องกันการบาดเจ็บหรือความเสียหาย

• ตรวจสอบก่อนใช้งาน: Always inspect the ladder for any signs of damage, loose components, or corrosion before each use. Do not use if damaged.
• การติดตั้งที่ปลอดภัย: Ensure the ladder is securely fastened to the window well or wall according to the installation instructions. Loose installation can lead to falls.
• ความจุน้ำหนัก: ห้ามเกินขีดจำกัดความสามารถในการรับน้ำหนักสูงสุดของ 480 ปอนด์การบรรทุกเกินพิกัดอาจทำให้โครงสร้างเสียหายได้
• Proper Footing: Ensure stable footing when ascending or descending. The ladder features anti-slip rungs for enhanced safety.
• เส้นทางที่ชัดเจน: Keep the area around the ladder clear of obstructions to allow for quick and safe egress.
• เด็กและสัตว์เลี้ยง: Keep children and pets away from the ladder unless under direct adult supervision during an emergency.
• สำหรับใช้ในกรณีฉุกเฉินเท่านั้น: This ladder is designed for emergency egress. Avoid using it for routine access or other purposes.

Image 2.1: A person demonstrating climbing the ladder, highlighting the 480 lbs maximum capacity.

3. เนื้อหาบรรจุภัณฑ์

ตรวจสอบว่าส่วนประกอบทั้งหมดมีอยู่ก่อนเริ่มการติดตั้ง:

• yeezoo 5-Rung Window Well Ladder (Straight-5STEPS)
• Expansion Screws (for mounting)

หากมีชิ้นส่วนใดขาดหายหรือเสียหาย โปรดติดต่อฝ่ายสนับสนุนลูกค้าทันที

4. การตั้งค่าและการติดตั้ง

Installation requires basic tools and adherence to these steps. It is recommended to have two people for installation.

4.1 เครื่องมือที่จำเป็น (ไม่รวม)

• เจาะ
• Masonry drill bits (appropriate size for expansion screws)
• Wrench or socket set (for tightening screws)
• สายวัด
• ระดับ
• ปากกาเมจิกหรือดินสอ

4.2 ขั้นตอนการประกอบ

1. แกะส่วนประกอบ: Carefully remove all ladder components and screws from the packaging.
2. Connect Rungs and Base Plate: Align the ladder rungs with the side rails and the base plate. Use the provided screws to securely fasten them. Ensure all connections are tight.
3. Position the Ladder: Place the assembled ladder in the desired location within the window well. Ensure it is centered and extends to a safe height for egress.
4. ทำเครื่องหมายจุดเจาะ: Using a marker or pencil, mark the locations for drilling holes through the pre-drilled holes on the ladder's side rails onto the window well wall.
5. เจาะรู: Using the appropriate masonry drill bit, drill holes at the marked locations. Ensure the depth is sufficient for the expansion screws.
6. Secure Ladder: Insert the expansion screws through the ladder's mounting holes and into the drilled holes in the wall. Tighten all screws firmly to ensure the ladder is securely anchored. Use a level to confirm the ladder is straight before final tightening.

Image 4.1: The yeezoo window well ladder securely installed within a basement window well.

Image 4.2: Illustration demonstrating the use of expansion screws to combine multiple ladder sections for varying window well heights. This model is a single 5-rung unit.

5. การดำเนินงานและการใช้งาน

The yeezoo Window Well Ladder is designed for straightforward emergency egress.

• Emergency Egress: In an emergency, calmly approach the window well.
• จับให้แน่น: Grasp the ladder rungs firmly with both hands. The rungs are designed with a φ21mm diameter and anti-slip texture for a secure grip.
• Ascend Safely: Place your feet securely on each rung and ascend the ladder one step at a time. Maintain three points of contact (two hands and one foot, or two feet and one hand) whenever possible.
• Exit Window Well: Once you reach the top, carefully exit the window well.

Image 5.1: Close-up of hands gripping the φ21mm deformed steel bars, emphasizing the safe and reliable design.

6. การบำรุงรักษา

Regular maintenance ensures the longevity and reliability of your window well ladder.

• การตรวจสอบตามปกติ: Periodically check all welded joints, screws, and the ladder's overall structure for any signs of rust, wear, or damage.
• การทำความสะอาด: Clean the ladder with a damp cloth and mild detergent as needed. Avoid abrasive cleaners that could damage the matte black finish.
• การป้องกันการกัดกร่อน: The ladder is rust-proof, but in harsh environments, applying a rust-inhibiting paint or coating to any exposed metal areas can further extend its life.
• ขันสกรูให้แน่น: Re-tighten all mounting screws annually to ensure the ladder remains securely attached.

Image 6.1: Visual representation of the ladder's durability features including water-proof, rust-proof, wear-proof, and high strength, along with details on high-strength locking screws and the thickened 6mm base plate.

7 การแก้ไขปัญหา

If you encounter issues with your yeezoo Window Well Ladder, refer to the following common problems and solutions:

8. ข้อมูลจำเพาะ

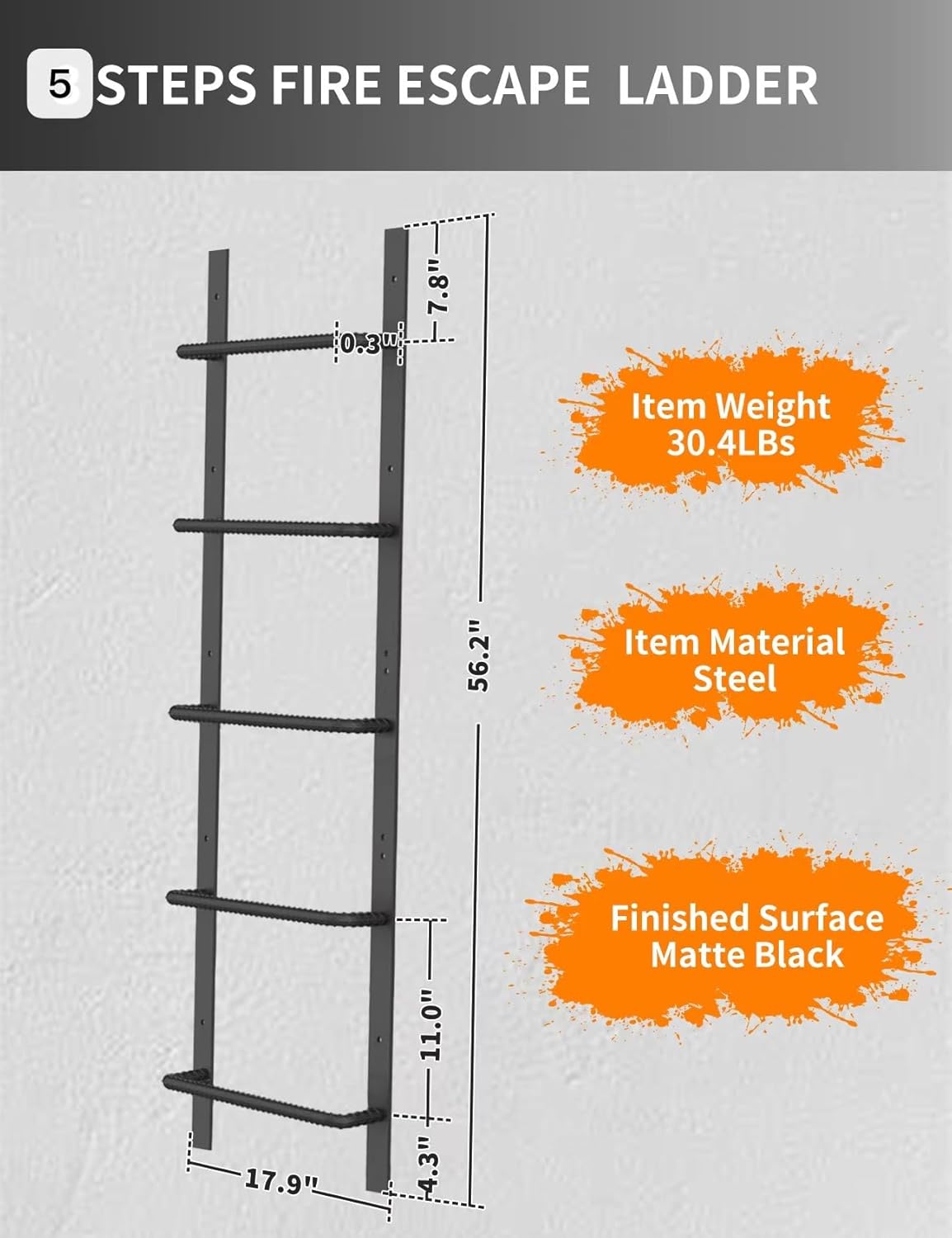

Image 8.1: Detailed specifications including dimensions (56.2" H x 17.9" W), rung diameter (0.83" / φ21mm), item weight (30.4 lbs), material (Steel), and finish (Matte Black).

9. การรับประกันและการสนับสนุน

For warranty information or technical support, please refer to the product packaging or contact yeezoo customer service through the retailer where the product was purchased. Please have your model number (Straight-5STEPS) and purchase date available when contacting support.
