Sunrosa 3476G
Sunrosa Frameless Glass Shower Panel User Manual
Model: 3476G | Brand: Sunrosa
1. สินค้าหมดview
The Sunrosa Frameless Glass Shower Panel is designed to provide a modern and functional addition to your bathroom. This fixed shower glass panel features a sleek frameless design, 3/8" (10mm) clear tempered glass, and integrated shelving for convenience. It is suitable for walk-in shower installations and offers reversible installation for flexible layout options.
คุณสมบัติที่สำคัญ ได้แก่:
- ขนาด : Adjustable width from 33 5/8" to 34", height of 76".
- งานฝีมือพรีเมี่ยม: High-quality aluminum alloy and 3/8" (10mm) clear easy-clean tempered glass, ANSI certified.
- Convenient Shelf Design: Two adjustable-height shelves inside and one large fixed shelf outside, plus a central opening for hanging towels.
- Enhanced Water Control: Helps minimize water spills compared to traditional shower curtains.
- การติดตั้งแบบกลับด้านได้: Can be installed for both right or left wall configurations.
Image 1.1: The Sunrosa Frameless Glass Shower Panel installed in a contemporary bathroom, showcasing its clear glass and brushed gold accents.
2. ข้อมูลด้านความปลอดภัย
Please read all instructions carefully before installation and use. Failure to follow these instructions may result in injury or product damage.
- สวมใส่อุปกรณ์ป้องกันส่วนบุคคล (PPE) ที่เหมาะสมเสมอในระหว่างการติดตั้ง รวมถึงแว่นตานิรภัยและถุงมือ
- Tempered glass, while strong, can shatter if struck at the edges or corners. Handle with extreme care.
- Ensure the installation surface (wall) is structurally sound and capable of supporting the weight of the glass panel.
- Do not overtighten screws, as this can damage the glass or hardware.
- ให้เด็กและสัตว์เลี้ยงอยู่ห่างจากบริเวณการติดตั้ง
- If any parts are damaged or missing, do not proceed with installation. Contact customer support immediately.
Image 2.1: Detail of the 3/8-inch (10mm) tempered glass, highlighting its safety and easy-to-clean properties.
3. เนื้อหาบรรจุภัณฑ์
Verify that all components are present and undamaged before beginning installation. If anything is missing or damaged, contact Sunrosa customer service.
| รายการ | คำอธิบาย | ปริมาณ |
|---|---|---|
| แผงกระจก | 3/8" (10mm) Tempered Glass Shower Screen | 1 |
| วอลล์โปรfile | Aluminum Alloy Wall Channel | 1 |
| ชั้นวางคงที่ | Large Aluminum Alloy Shelf (for outside) | 1 |
| ชั้นวางปรับระดับได้ | Smaller Aluminum Alloy Shelves (for inside) | 2 |
| ชุดฮาร์ดแวร์ | Screws, anchors, gaskets, silicone sealant (not always included, check packaging) | 1 ตั้งค่า |
4. การตั้งค่าและการติดตั้ง
4.1. ก่อนที่คุณจะเริ่มต้น
- วัดอย่างแม่นยำ: Ensure your shower opening dimensions are within the product's adjustable range (33 5/8" to 34" width, 76" height).
- เครื่องมือที่จำเป็น: Drill, level, tape measure, pencil, silicone gun, caulk, screwdriver set, safety glasses, gloves.
- เคลียร์พื้นที่: Remove any obstacles from the shower area.
- Review ไดอะแกรม: Familiarize yourself with the installation diagrams provided.

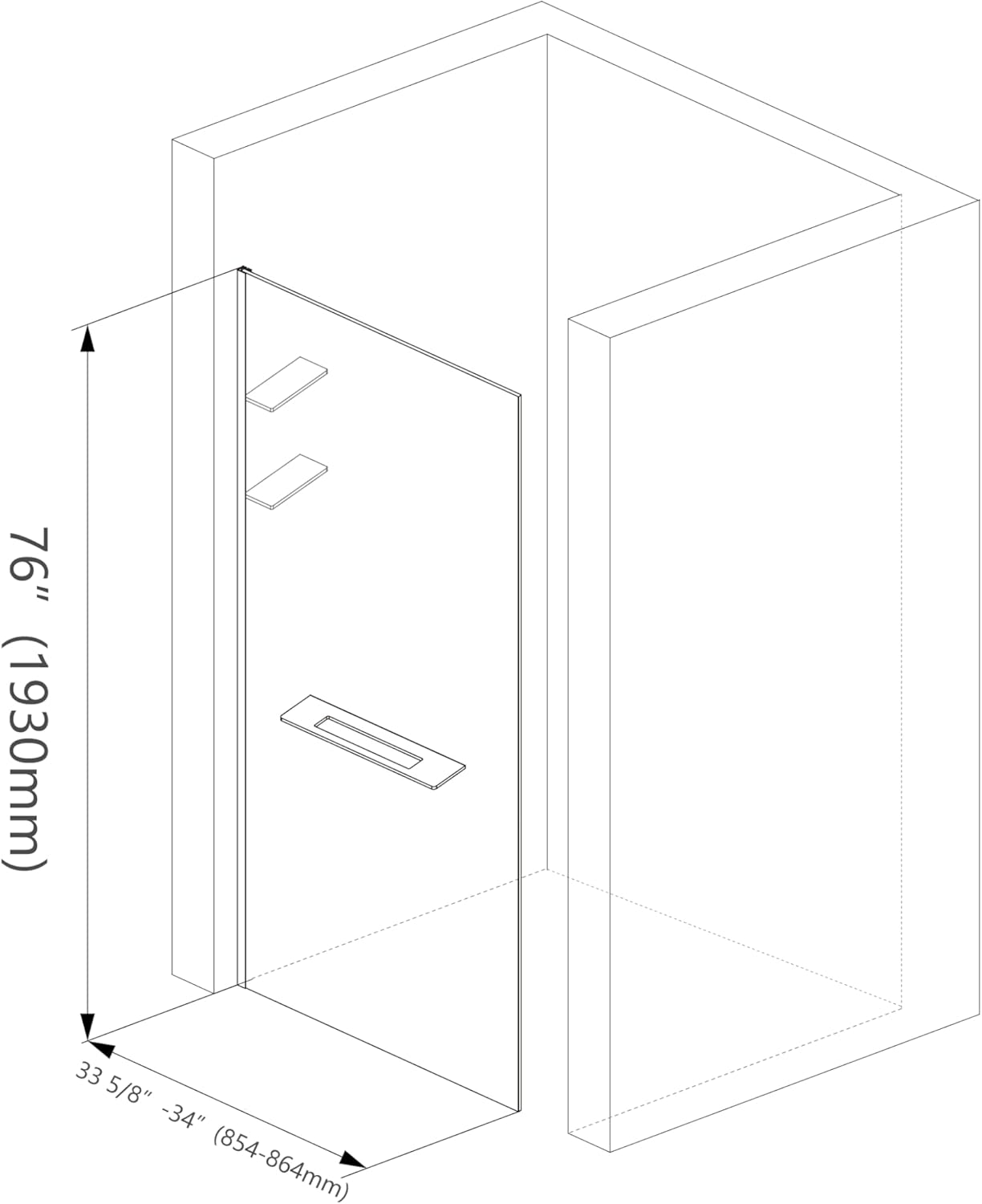

Image 4.1: Dimensional diagram of the Sunrosa shower panel, indicating its height and adjustable width.
4.2. ขั้นตอนการติดตั้ง
- เตรียมกำแพง: Using a level, mark a vertical line on the wall where the wall profile will be installed. Ensure it is perfectly plumb.
- ติดตั้ง Wall Profile: Position the aluminum wall profile along the marked line. Mark the drilling points through the pre-drilled holes in the profile. Drill holes and insert wall anchors. Secure the wall profile เข้ากับผนังโดยใช้สกรูที่ให้มา
- Insert Glass Panel: Carefully lift the glass panel and slide its edge into the installed wall profile. Ensure the glass is fully seated and level.
- Secure Glass Panel: Secure the glass panel within the wall profile using the set screws or clips as per the specific hardware design. Do not overtighten.
- ติดตั้งชั้นวาง:
- ชั้นวางคงที่: Attach the large fixed shelf to the designated slot on the outside of the glass panel.
- ชั้นวางปรับระดับได้: Insert the two smaller adjustable shelves into the slots on the inside of the glass panel. Adjust their height as desired and secure them.

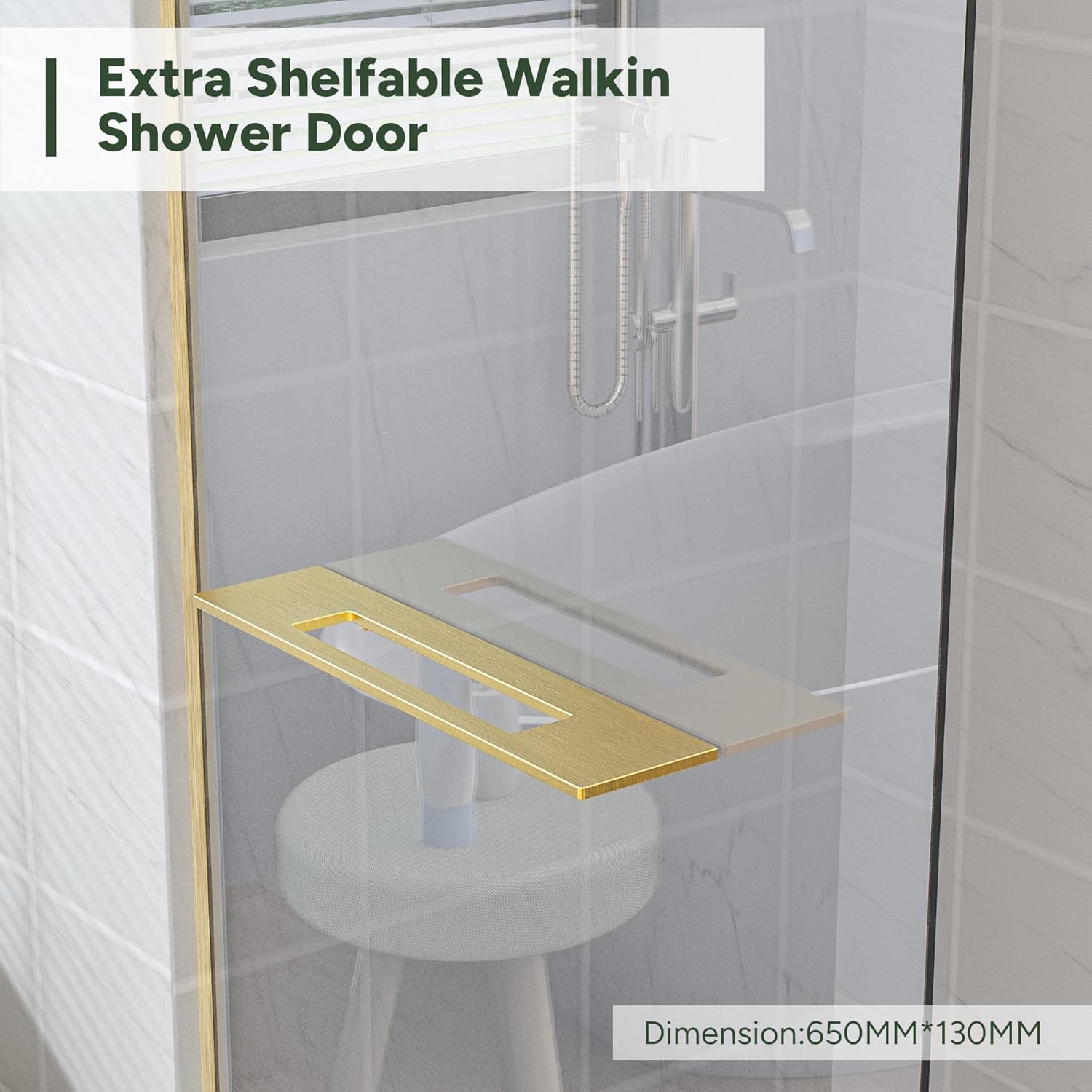

Image 4.2.1: Detail of the large fixed shelf, designed for convenient access to items like phones or speakers.
Image 4.2.2: Illustration of the two adjustable shelves, demonstrating their height flexibility for various bath products.
- ทาซิลิโคนซีลแลนท์: Apply a continuous bead of high-quality silicone sealant along all exterior seams where the glass meets the wall and the shower base. Allow adequate drying time before using the shower (typically 24-48 hours, refer to sealant instructions).
- การติดตั้งแบบกลับด้านได้: The panel is designed for reversible installation, allowing it to be mounted on either the left or right side of your shower opening.
Image 4.2.3: Diagram showing the reversible nature of the shower panel, allowing for left or right-hand installation.
5. คู่มือการใช้งาน
The Sunrosa Frameless Glass Shower Panel is a fixed installation designed for walk-in showers. Its primary function is to contain water within the shower area while providing an open and accessible entry.
- การกักเก็บน้ำ: The panel is designed to minimize water splashing outside the shower area. For optimal performance, ensure proper shower head placement and water pressure.
- การใช้งานชั้นวาง: Utilize the integrated shelves for storing bath products. The two adjustable shelves inside can be positioned at your preferred height. The fixed shelf outside is ideal for items like a phone or speaker, keeping them dry and accessible.
- Towel Hanging: The central opening on the panel serves as a convenient towel bar.
6. การบำรุงรักษาและการดูแล
Proper care will ensure the longevity and pristine appearance of your Sunrosa shower panel.
- การทำความสะอาดกระจก: Clean the tempered glass regularly with a soft cloth and a non-abrasive glass cleaner. For best results and to prevent water spots, wipe down the glass after each use. Avoid harsh chemicals, abrasive pads, or scouring powders, as these can damage the glass or its easy-clean coating.
- การทำความสะอาดฮาร์ดแวร์: Clean the aluminum alloy profiles and shelves with a soft, damp cloth. For stubborn spots, use a mild soap solution. Do not use abrasive cleaners or solvents, which can damage the finish.
- กาวซิลิโคน: Periodically inspect the silicone sealant for any signs of wear, cracking, or mold. Reapply sealant as necessary to maintain a watertight seal.
- การตรวจสอบทั่วไป: Regularly check all screws and connections to ensure they remain tight. Do not overtighten.
7 การแก้ไขปัญหา
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| Water leaking from base or wall connection. | Inadequate or damaged silicone sealant. | Ensure all seams are properly sealed with high-quality silicone. Reapply if necessary, allowing full cure time. |
| Glass panel feels wobbly or loose. | ผนังโปรfile not securely fastened or glass not properly seated. | Check that the wall profile is firmly attached to the wall. Ensure the glass panel is fully inserted and secured within the profile- อย่าขันสกรูแน่นเกินไป |
| Shelves are not holding position. | Shelves not properly engaged or secured. | Ensure shelves are correctly inserted into their slots and any securing mechanisms are engaged. |
| Water spots or streaks on glass. | Hard water deposits or improper cleaning. | Clean with a non-abrasive glass cleaner. Consider using a squeegee after each shower to minimize water spots. |
8. ข้อมูลจำเพาะ
- ยี่ห้อ: Sunrosa
- หมายเลขรุ่น: 3476จี
- ขนาด : 0.24 x 34 x 75.98 inches (Glass thickness: 3/8" or 10mm)
- ปรับความกว้างได้: 33 5/8" to 34"
- ความสูง: 76 นิ้ว
- วัสดุ: Tempered Glass, Aluminum Alloy
- สี: ทองขัดเงา
- สไตล์: ร่วมสมัย
- น้ำหนักสินค้า: 94.8 ปอนด์
- จำเป็นต้องประกอบ: ใช่
- ยูพีซี: 616050968407
9. การรับประกันและการสนับสนุน
Sunrosa provides friendly after-sales service for this product. For warranty claims, technical assistance, or any questions regarding your Sunrosa Frameless Glass Shower Panel, please contact our customer support team.
Please have your model number (3476G) and purchase information ready when contacting support.
