การแนะนำ
คำอธิบายภาพ: แบบบน-ล่าง view of the Senzooe XY-T04 remote digital temperature controller board, connected to a K-type thermocouple. The display shows "OUT 302°C H355".
This manual provides instructions for the installation, operation, and maintenance of the Senzooe XY-T04 remote digital temperature controller. This device is designed for precise temperature control using a K-type thermocouple, suitable for various industrial and scientific applications.
ข้อมูลด้านความปลอดภัย
- ตรวจสอบแหล่งจ่ายไฟ voltage matches the device's requirements (DC 6.0-30V).
- Do not expose the device to moisture, corrosive substances, or extreme temperatures.
- All wiring should be performed by qualified personnel to prevent electric shock or damage to the device.
- Disconnect power before performing any maintenance, wiring, or troubleshooting.
- เก็บอุปกรณ์ให้พ้นมือเด็กและบุคคลที่ไม่ได้รับอนุญาต
สินค้าเกินview
The Senzooe XY-T04 is a digital temperature controller featuring a clear LCD display and intuitive controls. It utilizes a K-type thermocouple for accurate temperature sensing and provides a relay output for controlling external heating or cooling devices.

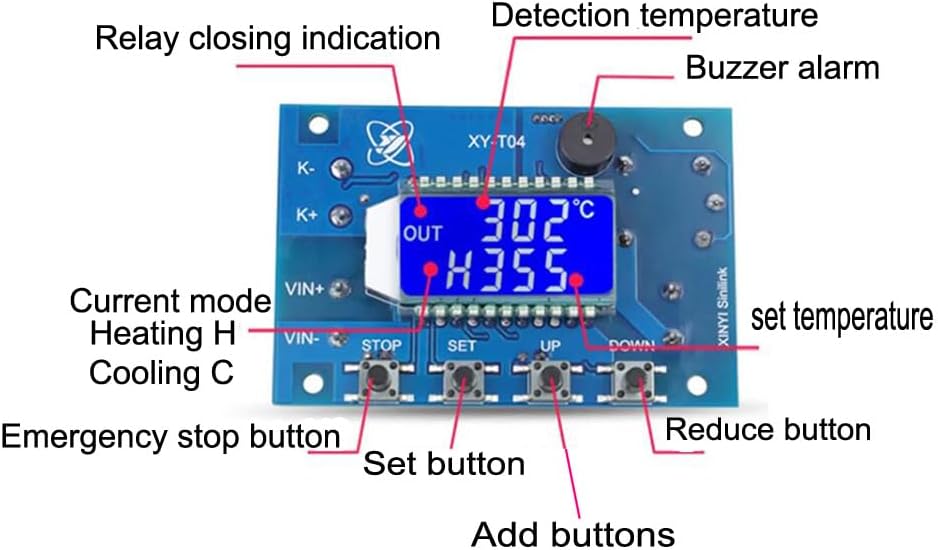

คำอธิบายภาพ: This image shows the Senzooe XY-T04 temperature controller with its various components labeled. Key labels include "Relay closing indication", "Detection temperature", "Buzzer alarm", "Current mode Heating H Cooling C", "Emergency stop button", "Set button", "Add buttons", and "Reduce button". The display shows "OUT 302°C H355".
- จอแสดงผลดิจิตอล: Shows current temperature, set temperature, and operating mode (Heating/Cooling).
- ปุ่มควบคุม: STOP, SET, UP, DOWN for configuration and operation.
- K-type Thermocouple Input: Dedicated terminals for connecting the K-type thermocouple.
- เอาท์พุทรีเลย์: Provides a switch contact for controlling external loads.
- ออด: Emits audible alerts for alarms or operational feedback.
การติดตั้งและการตั้งค่า
Follow these steps to properly install and connect your XY-T04 temperature controller.
คำอธิบายภาพ: This image illustrates the wiring connections for the Senzooe XY-T04 temperature controller. It shows terminals for "DC 6.0-30V power supply" (VIN+ and VIN-), "K-type thermocouple" (K+ and K-), and "Relay switch" outputs. A small module is also shown connected to the main board.
- การเชื่อมต่อแหล่งจ่ายไฟ: Connect a DC 6.0-30V power supply to the VIN+ and VIN- terminals. Ensure correct polarity to prevent damage to the device.
- การเชื่อมต่อเทอร์โมคัปเปิล: Connect the K-type thermocouple to the K+ and K- terminals. Observe the polarity of the thermocouple (typically red wire for positive, blue or white for negative). Incorrect polarity may result in inaccurate readings.
- การเชื่อมต่อเอาต์พุตของรีเลย์: Connect the device to be controlled (e.g., heater, cooler, fan) to the Relay switch terminals. This is a dry contact relay, meaning it acts as a switch. Ensure the external device has its own power supply and is wired correctly through the relay contacts.
- Module Connection (if applicable): If your setup includes an additional module, connect it to the designated port on the main board as indicated in the wiring diagram.
คำแนะนำการใช้งาน
Once powered on, the controller will display the current temperature. Use the buttons to configure and operate the device.
- เปิด/ปิดเครื่อง: The device powers on automatically when connected to a suitable power supply. There is no dedicated power button. Disconnect the power supply to turn off the device.
- การตั้งค่าอุณหภูมิ:
- กดปุ่ม ชุด button briefly. The currently set temperature will flash on the display.
- ใช้ UP และ ลง ปุ่มเพื่อปรับค่าอุณหภูมิที่ต้องการ
- กด ชุด again to confirm and save the setting, or wait a few seconds for the display to stop flashing, and the setting will be saved automatically.
- Changing Operating Mode (Heating/Cooling):
- กดค้างไว้ ชุด button (typically for 3-5 seconds) to enter the parameter setting menu.
- ใช้ UP และ ลง buttons to navigate through the available parameters until you find the mode setting (often indicated by 'H' for Heating or 'C' for Cooling).
- กด ชุด to select the parameter, then use UP or ลง to change the mode between Heating (H) and Cooling (C).
- กด ชุด to confirm the mode selection, then long press ชุด again or wait for the menu to time out to exit the parameter setting mode.
- หยุดฉุกเฉิน: กดปุ่ม หยุด button to immediately halt the relay output and stop the controlled device. Press it again to resume normal operation.
- ตัวบ่งชี้การแสดงผล:
- ออก: This indicator illuminates when the relay output is active, meaning the controlled device is currently powered on (in heating mode) or off (in cooling mode) to reach the set temperature.
- H/C: Indicates the current operating mode. 'H' signifies Heating mode, and 'C' signifies Cooling mode.
การซ่อมบำรุง
Proper maintenance ensures the longevity and reliable operation of your temperature controller.
- การทำความสะอาด: Wipe the device with a soft, dry cloth to remove dust and debris. Do not use abrasive cleaners, solvents, or liquids directly on the device.
- พื้นที่จัดเก็บ: When not in use, store the controller in a dry, dust-free environment away from direct sunlight and extreme temperatures.
- การตรวจสอบ: Periodically inspect all wiring connections for looseness, corrosion, or damage. Ensure the thermocouple is securely connected and free from physical damage.
การแก้ไขปัญหา
โปรดดูตารางด้านล่างเพื่อดูปัญหาทั่วไปและวิธีแก้ไขที่เป็นไปได้
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| ไม่มีการแสดงผลหลังจากเปิดเครื่อง | ปริมาตรของแหล่งจ่ายไฟไม่ถูกต้องtagหรือขั้วไฟฟ้าไม่ตรงกัน; การเชื่อมต่อหลวม; แหล่งจ่ายไฟขัดข้อง | Verify power supply (DC 6.0-30V) and correct polarity. Check all wiring connections. Test the power supply. |
| การอ่านอุณหภูมิไม่ถูกต้อง | Thermocouple connected incorrectly or damaged; wrong thermocouple type (must be K-type). | Ensure K-type thermocouple is used and connected with correct polarity. Check thermocouple for physical damage or short circuits. |
| Relay not activating/deactivating | Incorrect set temperature; wrong operating mode (H/C); temperature differential setting too wide; faulty relay. | Check the set temperature and compare it to the current temperature. Verify the operating mode (Heating/Cooling). Adjust hysteresis/differential settings if available. Test the relay contacts with a multimeter if possible. |
| Buzzer ดังขึ้นอย่างต่อเนื่อง | Temperature exceeding/falling below set alarm limits; sensor error. | Check alarm settings. Verify thermocouple connection and reading. Some models allow disabling the buzzer in settings. |
ข้อมูลจำเพาะ
- แบบอย่าง: XY-T04
- ยี่ห้อ: Senzooe
- แหล่งจ่ายไฟ: DC 6.0-30V
- เซ็นเซอร์อุณหภูมิ: เทอร์โมคัปเปิลชนิด K
- ช่วงการควบคุมอุณหภูมิ: Wide range, dependent on K-type thermocouple specifications and controller settings.
- เอาท์พุต: Relay Switch (Dry Contact)
- ยูพีซี: 707638005284
ข้อมูลการรับประกัน
Warranty information for this product is not explicitly provided in the available documentation. Please refer to the seller or manufacturer's website for details regarding warranty terms and conditions at the time of purchase.
