EMBATHER EMTJ073
EMBATHER Tub and Shower Faucet Set User Manual
Model: EMTJ073
การแนะนำ
This manual provides comprehensive instructions for the installation, operation, and maintenance of your EMBATHER Tub and Shower Faucet Set. Designed for durability and ease of use, this set features a dual shower head with a bathtub faucet, single-handle control, and a matte black finish. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.

Figure 1: The complete EMBATHER Tub and Shower Faucet Set in matte black.
ข้อมูลด้านความปลอดภัยที่สำคัญ
ความเข้ากันได้ของวาล์ว: This 4-way shower faucet includes a specific valve and all necessary components for installation. It is ไม่เข้ากัน with other brands of valves and cartridges. Prior to installation, the removal of old shower valves is required.
วาล์วปรับสมดุลแรงดัน: The integrated cUPC certified pressure balance valve is designed to monitor and enhance water pressure balance, preventing sudden changes in hot/cold water output during bathing. This feature helps prevent scalding or sudden cold shocks.
Water Hammer Prevention: Built-in check valves prevent water hammer, reducing noise and protecting other water devices from impact.
คุณภาพวัสดุ: The system utilizes ABS material and brass with 3-layer coatings, designed to resist corrosion in humid bathroom environments. All components undergo strict Saltspray, Blasting, and Flow pressure tests to ensure quality and safety.

Figure 2: Important installation tips highlighting valve compatibility and the need to remove old valves.

Figure 3: Illustration of the anti-scald and no-pipe noise features provided by the included shower valve.
ส่วนประกอบของผลิตภัณฑ์
The EMBATHER Tub and Shower Faucet Set includes the following components:
- 1 x Rain Shower Head with 3-Way Diverter and Bracket
- 1 x 71 Inch Shower Hose
- 1 x Hand Shower Head
- 1 x Bathtub Faucet
- 1 x Rough-in Valve with Trims
- 1 x Shower Arm with Flange
- 1 x Shower Trim Kit (set)
- 1 x คู่มือการติดตั้ง

Figure 4: Complete set of components included with the EMBATHER shower faucet system.
การติดตั้งและการตั้งค่า
Installation of the EMBATHER Tub and Shower Faucet Set requires careful attention to detail. It is recommended to have this product installed by a qualified plumber.
- เตรียมพื้นที่ติดตั้ง: Ensure the water supply is turned off. Remove any existing shower valves and trim kits.
- ติดตั้งวาล์วสำหรับงานติดตั้งเบื้องต้น: The included brass valve is cUPC certified and must be used. Install it according to standard plumbing practices. Note that this valve is not compatible with other brands.
- เชื่อมต่อระบบประปา: Update to NPT 1/2" connector, compatible with U.S. standard plumbing. If your pipeline is not standard 1/2", contact customer support for conversion connectors.
- ติดตั้งฝักบัวและหัวฝักบัว: Securely attach the shower arm with flange to the wall, then connect the rain shower head with its 3-way diverter and bracket.
- ติดตั้งฝักบัวมือและสายยาง: Connect the 71-inch shower hose to the hand shower head and the diverter.
- Install Bathtub Faucet: Securely install the bathtub faucet, ensuring a proper seal.
- ติดตั้งชุดตกแต่ง: Once all internal components are in place, install the decorative trim kit and single-handle control.
- การทดสอบการรั่วไหล: ค่อยๆ เปิดวาล์วน้ำและตรวจสอบจุดเชื่อมต่อทั้งหมดว่ามีรอยรั่วหรือไม่

Figure 5: The EMBATHER shower faucet set installed in a bathroom, showcasing its matte black finish.
คำแนะนำการใช้งาน
Your EMBATHER shower system offers versatile control for a customized showering experience.
ระบบควบคุมแบบด้ามจับเดียว:
The single handle controls both water temperature and flow. Pull the handle to control the switch, and rotate it left for hot water and right for cold water. The pressure balance valve ensures consistent temperature.

Figure 6: The single-handle control allows for easy adjustment of water temperature and flow.

Figure 7: Explanation of the pressure balancing valve, which prevents sudden temperature changes.
ตัวแยกทิศทาง 3 ทาง:
The 3-way diverter allows you to switch between the rain shower head, the handheld shower head, or use both simultaneously. Simply rotate the diverter knob to select your desired water output.

Figure 8: The 3-way diverter enables selection between rain shower, handheld shower, or a combination.

Figure 9: Choose your preferred shower style: Rain + Handheld, Handheld Shower only, or Rain Shower only.
การตั้งค่าสเปรย์:
Both the rain shower head and the handheld shower head feature multiple spray settings. Rotate the outer ring of each shower head to cycle through the available spray patterns, such as rain, massage, and mist.

Figure 10: Both shower heads offer 8 distinct spray settings for a personalized experience.
ก๊อกน้ำอ่างอาบน้ำ:
The bathtub faucet provides a high flow rate of 1.75 GPM, allowing for quick filling of your bathtub. To divert water from the tub spout to the shower heads, pull up the diverter knob on the tub spout.

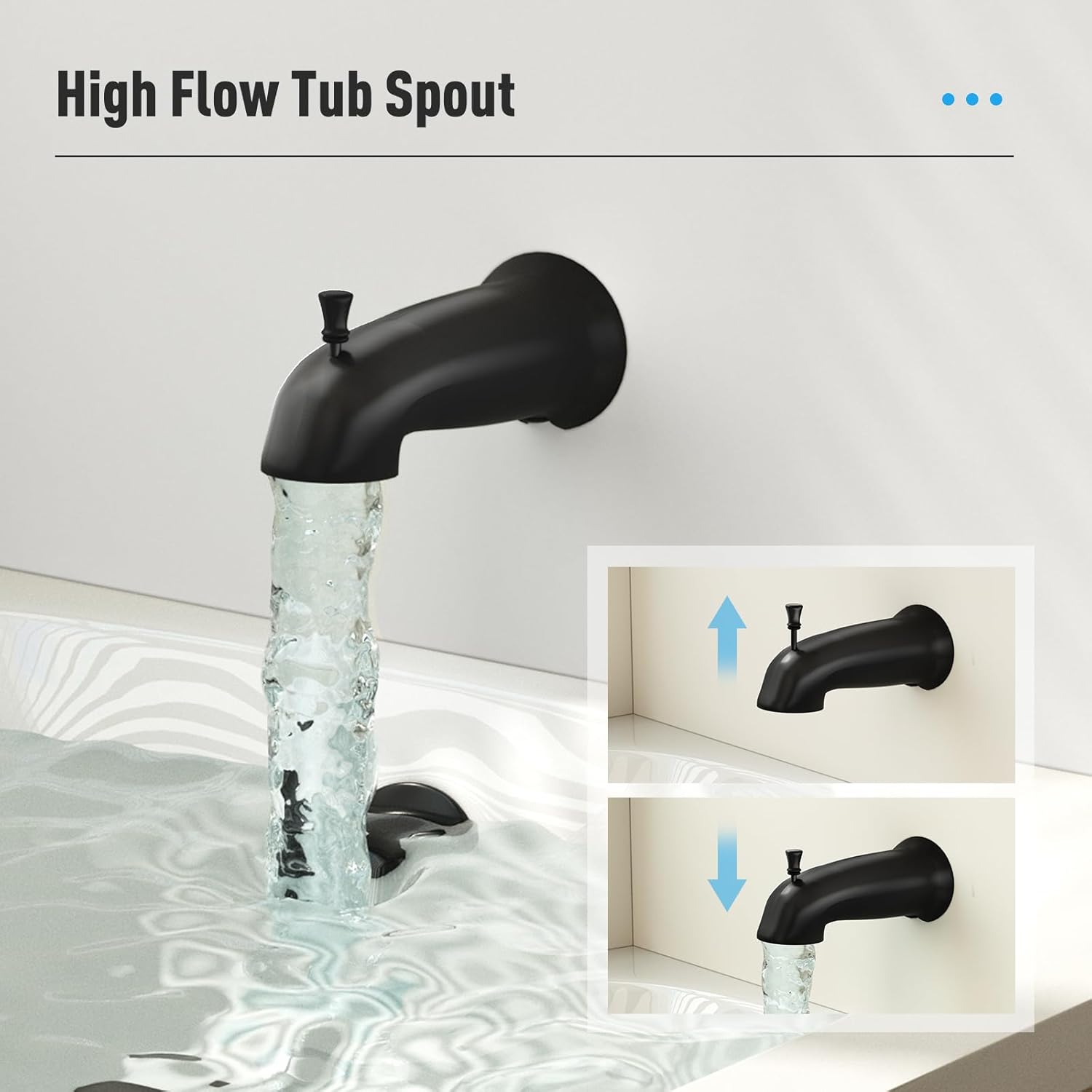

Figure 11: The high flow tub spout quickly fills your bathtub for a relaxing soak.

Figure 12: The large outlet tub spout ensures rapid bathtub filling.
วิดีโอผลิตภัณฑ์:
Video 1: Demonstrates the features and operation of the EMBATHER Shower Faucet Set with Tub Spout, including switching between shower modes.
วิดีโอ 2: ภาพรวมโดยย่อview of the EMBATHER Tub and Shower Faucet Set, highlighting its key functionalities.
การซ่อมบำรุง
To maintain the appearance and functionality of your EMBATHER Tub and Shower Faucet Set, follow these guidelines:
- การทำความสะอาด: Clean the matte black finish regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- แหล่งแร่: For hard water areas, regularly wipe down the shower heads and tub spout to prevent mineral buildup. The nozzles on the shower heads are designed for easy cleaning; gently rub them to dislodge any deposits.
- การตรวจสอบ: Periodically check all connections for tightness and signs of wear. Address any leaks promptly to prevent water damage.
การแก้ไขปัญหา
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| ลดการไหลของน้ำ | Mineral buildup in shower head nozzles; partially closed shut-off valve. | Clean shower head nozzles. Ensure shut-off valves are fully open. |
| ความผันผวนของอุณหภูมิของน้ำ | Issue with pressure balance valve; insufficient hot water supply. | Verify proper installation of the pressure balance valve. Check hot water heater settings. |
| การรั่วไหลจากจุดเชื่อมต่อ | การเชื่อมต่อหลวม โอริงหรือซีลเสียหาย | ขันข้อต่อทั้งหมดให้แน่น ตรวจสอบและเปลี่ยนโอริงหรือซีลที่ชำรุดเสียหาย |
| Water Hammer Noise | Air in pipes; high water pressure; faulty check valves. | Flush the water lines to remove air. If problem persists, consult a plumber. |
ข้อมูลจำเพาะ
| คุณสมบัติ | รายละเอียด |
|---|---|
| ยี่ห้อ | กอด |
| หมายเลขรุ่น | EMTJ073 |
| สี | สีดำด้าน |
| วัสดุ | Stainless Steel, Brass, Acrylonitrile Butadiene Styrene (ABS) |
| ประเภทการเสร็จสิ้น | สีดำด้าน |
| จำนวนที่จับ | 1 |
| ประเภทการติดตั้ง | ติดผนัง |
| คำอธิบายอัตราการไหล | 1.75 GPM, 1.75 GPM-2.5GPM |
| การรับรอง | CEC, cUPC (UPC/cUPC certified by US official IAPMO Reg No:12900) |
| น้ำหนักสินค้า | 7.48 ปอนด์ |
| ขนาดสินค้า | 16.42 x 12.95 x 5.87 นิ้ว |
| ประเทศต้นกำเนิด | จีน |

Figure 13: EMBATHER products are UPC certified, ensuring quality and safety standards.

Figure 14: EMBATHER products hold cUPC and CEC certifications, confirming adherence to strict quality and performance standards.
การรับประกันและการสนับสนุน
การรับประกัน: The EMBATHER Tub and Shower Faucet Set comes with a Lifetime Warranty, ensuring long-term peace of mind regarding product defects and performance.
การสนับสนุนลูกค้า: EMBATHER is committed to providing excellent customer service. If you encounter any issues or have questions regarding your product, please contact our efficient and responsible after-sales team. We are dedicated to listening to customer feedback and continuously improving our products.
ข้อมูลติดต่อ: หากต้องการความช่วยเหลือ โปรดส่งอีเมลไปที่: qibo@embatherlife.com

Figure 15: EMBATHER offers excellent customer service and support for all product inquiries.
