การแนะนำ
Welcome to the user manual for your new Daiwa 23 Leo Blitz Electric Reel, model 300JL. This electric reel is engineered for high performance, offering power, speed, and durability for various fishing techniques. To ensure optimal performance and longevity of your reel, please read this manual thoroughly before initial use. This guide provides essential information on setup, operation, maintenance, and specifications.
สินค้าเกินview
The Daiwa 23 Leo Blitz Electric Reel 300JL is a lightweight, high-power, and high-speed electric fishing reel designed for demanding angling conditions. It features a robust graphite body and stainless steel bearings, ensuring reliability and smooth operation.

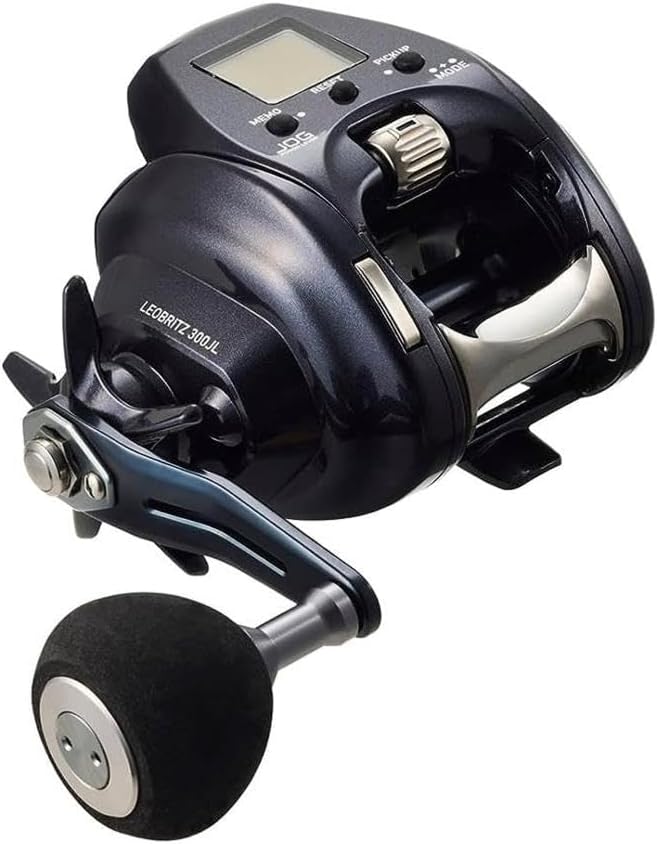

ภาพ: ด้านหน้า view of the Daiwa 23 Leo Blitz Electric Reel 300JL, showcasing ที่มีจอแสดงผลดิจิทัลและปุ่มควบคุม
วีดีโอ: ผลิตภัณฑ์อย่างเป็นทางการview video demonstrating the features and design of the Daiwa Leo Blitz series electric reels. This video highlights the reel's power, rapid winding capabilities, lightweight graphite construction, and ergonomic design.
คุณสมบัติหลัก
- โครงสร้างน้ำหนักเบาและทนทาน: Crafted from high-quality graphite, the reel weighs only 540g (18.1 oz), ensuring comfortable handling during extended use.
- อัตราทดเกียร์สูง: A gear ratio of 5.1 provides efficient line retrieval.
- Powerful Drag System: Equipped with a maximum drag force of 13 kg (28.6 lbs) to handle strong fish.
- Efficient Winding: Offers a winding length of 70 cm (27.6 inches) per revolution.
- High Winding Force: Maximum winding force of 59 kg (up to 65 kg with a Super Lithium battery).
- Digital LCD Counter: Provides clear line depth and other essential information, with language options including English.
- JOG Power Lever: Allows for intuitive and precise control over winding speed and power.
- Fall Brake Dial: For controlled descent of your lure or bait.
ภาพ: รายละเอียด view of the fall brake dial and the dot LCD counter, showing its English display option.
ภาพ: เกิดการระเบิดขึ้น view of the reel's internal components, highlighting the robust gear system and motor.
การตั้งค่า
- การแกะกล่อง: Carefully remove all components from the packaging. Verify that all included items are present (refer to the "Included Components" section).
- Line Winding: Spool your preferred fishing line onto the reel. The reel supports PE line capacities of 3-400m, 4-300m, and 5-230m, and Nylon line capacities of 5-280m and 6-200m. Ensure the line is spooled evenly and tightly to prevent tangles and ensure proper function.
- Attaching to Rod: Securely attach the electric reel to your fishing rod's reel seat. Ensure it is firmly seated to prevent movement during use.
- การเชื่อมต่อไฟฟ้า: Connect the power cord (included) to the reel and to a compatible 12V DC power source (e.g., a marine battery). Ensure a secure and correct polarity connection.
- เปิดเครื่องครั้งแรก: Turn on the reel's power. The LCD display should illuminate. Perform a quick function check to ensure all buttons and levers respond.
คำแนะนำการใช้งาน
การทำงานพื้นฐาน
- เปิด/ปิดเครื่อง: Use the designated power button (if available) or connect/disconnect the power cord to turn the reel on or off.
- Line Release: To release line, disengage the clutch lever. Control the descent using the fall brake dial.
- การคดเคี้ยว: Use the JOG power lever to control the electric winding speed. Alternatively, the handle can be used for manual winding.
- การปรับค่าการลาก: Adjust the drag setting using the drag star or lever, typically located on the side of the reel. Refer to the specifications for maximum drag force.
ปุ่มควบคุมและจอแสดงผล
- JOG Power Lever: This lever provides variable speed control for electric retrieve. Push forward for faster retrieve, pull back for slower.
- PICKUP Button: Initiates a quick retrieve at a preset speed, useful for checking bait or clearing snags.
- ปุ่มรีเซ็ต: Resets the line counter to zero, typically done when the lure reaches the surface or after a fish is landed.
- ปุ่ม MEMO: Used to store specific depth settings or other user-defined parameters.
- ปุ่มโหมด: Cycles through different display modes on the LCD, such as line depth, winding speed, or other informational screens.
- Fall Brake Dial: Located on the side, this dial allows for fine-tuning the speed of line descent when the clutch is disengaged, preventing backlash and controlling bait presentation.
การซ่อมบำรุง
- ล้างหลังการใช้งาน: After each use, especially in saltwater, gently rinse the reel with fresh water. Avoid high-pressure sprays directly into the reel's openings.
- การอบแห้ง: Allow the reel to air dry completely in a shaded, well-ventilated area before storage.
- การหล่อลื่น: Periodically apply a small amount of reel oil to moving parts and grease to gears as recommended by Daiwa. Refer to the detailed web manual for specific lubrication points.
- พื้นที่จัดเก็บ: Store the reel in a dry, cool place, away from direct sunlight and extreme temperatures. Use the provided reel bag for protection.
- การตรวจสอบสายการผลิต: Regularly inspect your fishing line for wear, fraying, or damage. Replace line as needed to prevent break-offs.
การแก้ไขปัญหา
If you encounter issues with your Daiwa 23 Leo Blitz Electric Reel, please consult the following common troubleshooting tips. For more detailed solutions, refer to the comprehensive WEB Manual accessible via the provided guide.
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| Reel does not power on. | Loose power connection, depleted battery, or internal electrical issue. | Check power cord connections. Ensure battery is charged and properly connected. If issues persist, consult a service center. |
| Inconsistent winding speed. | Low battery power, line tangle, or debris in the spool. | Charge battery. Inspect line for tangles or obstructions. Clean the spool area. |
| Drag not holding or too stiff. | Improper drag setting, saltwater intrusion, or worn drag washers. | Adjust drag setting. Rinse reel thoroughly after use. If drag washers are worn, professional service may be required. |
Specifications (Model: 300JL)
| คุณสมบัติ | รายละเอียด |
|---|---|
| แบบอย่าง | 300JL (Left Handle) |
| Retrieve Ratio (cm/rev) | 70 |
| อัตราทดเกียร์ | 5.1 |
| น้ำหนัก | 540 กรัม (18.1 ออนซ์) |
| ลากสูงสุด | 13 กก. (28.6 ปอนด์) |
| PE Line Capacity (No. - m) | 3- 400 / 4-300 / 5-230 |
| Nylon Line Capacity (No. - m) | 5-280 / 6-200 |
| Ball/Roller Bearings | 12/1 |
| Max Winding Power | 59 kg (65 kg with Super Lithium) |
| Normal Winding Speed (1kg load) | 145 m/min (161 m/min) |
| วัสดุตัวเครื่อง | กราไฟท์ |
| วัสดุแบริ่ง | สแตนเลส |
ส่วนประกอบที่รวมอยู่
Your Daiwa 23 Leo Blitz Electric Reel 300JL package includes the following items:
- บัตรรับประกัน
- สายไฟ
- Reel Bag
- Threading Pin
- เครื่องมือ
- คู่มือง่ายๆ
- รายการคำเตือน
- WEB Manual Access Guide
- Fall Brake Dial Seal
การรับประกันและการสนับสนุน
Your Daiwa 23 Leo Blitz Electric Reel 300JL comes with a warranty. Please refer to the included Warranty Card for detailed terms and conditions. For technical support, service, or further inquiries, please contact Daiwa customer service. The WEB Manual Access Guide provides information on accessing additional resources online.
หมายเหตุ: การซ่อมแซมหรือดัดแปลงโดยไม่ได้รับอนุญาตอาจทำให้การรับประกันของคุณเป็นโมฆะ
