VONZOY 19.5 Inch Smokeless Fire Pit User Manual

1. บทนำและข้อมูลด้านความปลอดภัย

Thank you for choosing the VONZOY 19.5 Inch Smokeless Fire Pit. This manual provides important instructions for the safe assembly, operation, maintenance, and care of your new fire pit. Please read all instructions carefully before use and retain this manual for future reference.

คำเตือนด้านความปลอดภัยที่สำคัญ

WARNING: Standard fire pit safety warnings apply. Failure to follow these instructions could result in fire, property damage, or personal injury.

• Always use the fire pit on a flat, non-combustible surface.
• ให้เด็กและสัตว์เลี้ยงอยู่ห่างจากเตาไฟในระหว่างใช้งาน
• Do not use the fire pit under any overhead combustible structures.
• ห้ามปล่อยให้เตาไฟที่กำลังลุกไหม้อยู่โดยไม่มีใครดูแล
• Use appropriate tools for handling wood and ash.
• Ensure the fire is completely extinguished before leaving the area or storing the fire pit.
• Do not use flammable liquids to ignite or re-ignite the fire.
• Allow the fire pit to cool completely before cleaning or moving.

2. เนื้อหาบรรจุภัณฑ์

โปรดตรวจสอบให้แน่ใจว่ามีชิ้นส่วนครบทุกชิ้นก่อนประกอบ:

• 1 x VONZOY 19.5 Inch Smokeless Fire Pit (Main Chamber)
• 1 x Fire Pit Stand
• 1 x Removable Ash Pan with Sieve Ash Tray
• กระเป๋าถือพกพา 1 ใบ

Image: The complete VONZOY 19.5 Inch Smokeless Fire Pit, showcasing its main chamber, stand, and ash pan. This image provides an overview of the product's primary components.

3. การประกอบและการติดตั้ง

The VONZOY Smokeless Fire Pit is designed for quick and easy setup.

1. เลือกตำแหน่ง: Select a stable, level, non-combustible surface outdoors, away from any flammable materials, structures, or overhanging trees.
2. วางขาตั้ง: Position the fire pit stand on your chosen surface.
3. ใส่ถาดรองเถ้า: Place the removable ash pan into the base of the main fire pit chamber. Ensure it is seated correctly.
4. Position Fire Pit: Carefully place the main fire pit chamber onto the stand, ensuring it is stable and centered.

ภาพ: รายละเอียด view illustrating the separate components of the fire pit, including the main chamber, stand, and ash plate. This helps visualize how the parts fit together during assembly.

4. คู่มือการใช้งาน

Fueling the Fire Pit

• Use only dry, seasoned firewood. Hardwoods like oak, maple, or hickory are recommended for a longer, cleaner burn.
• Avoid using treated wood, trash, or any materials that could release toxic fumes.
• Do not overfill the fire pit. Keep the fuel below the top air vents to ensure proper airflow and smokeless operation.

Igniting the Fire

1. Place kindling (small dry sticks, paper, or fire starters) at the bottom of the fire pit.
2. Arrange larger pieces of firewood on top of the kindling, allowing for air circulation.
3. Carefully ignite the kindling using a long lighter or match.
4. Allow the fire to establish itself before adding more wood.

Smokeless Technology Explained

The VONZOY fire pit utilizes an oxygen-enriched fire technology and a 360° airflow circle design to achieve its smokeless performance. Air is drawn in through the bottom vents, heated, and then channeled up through the double-wall construction to exit through the top vents. This superheated air ignites smoke particles before they can escape, resulting in a more efficient and virtually smokeless burn.

Image: A diagram illustrating the "Fully Combustion Principle" of the fire pit, showing how oxygen enters, fuels the first burn, and then superheated air creates a "Second Burn" to reduce smoke. This visual explains the core technology behind its smokeless operation.

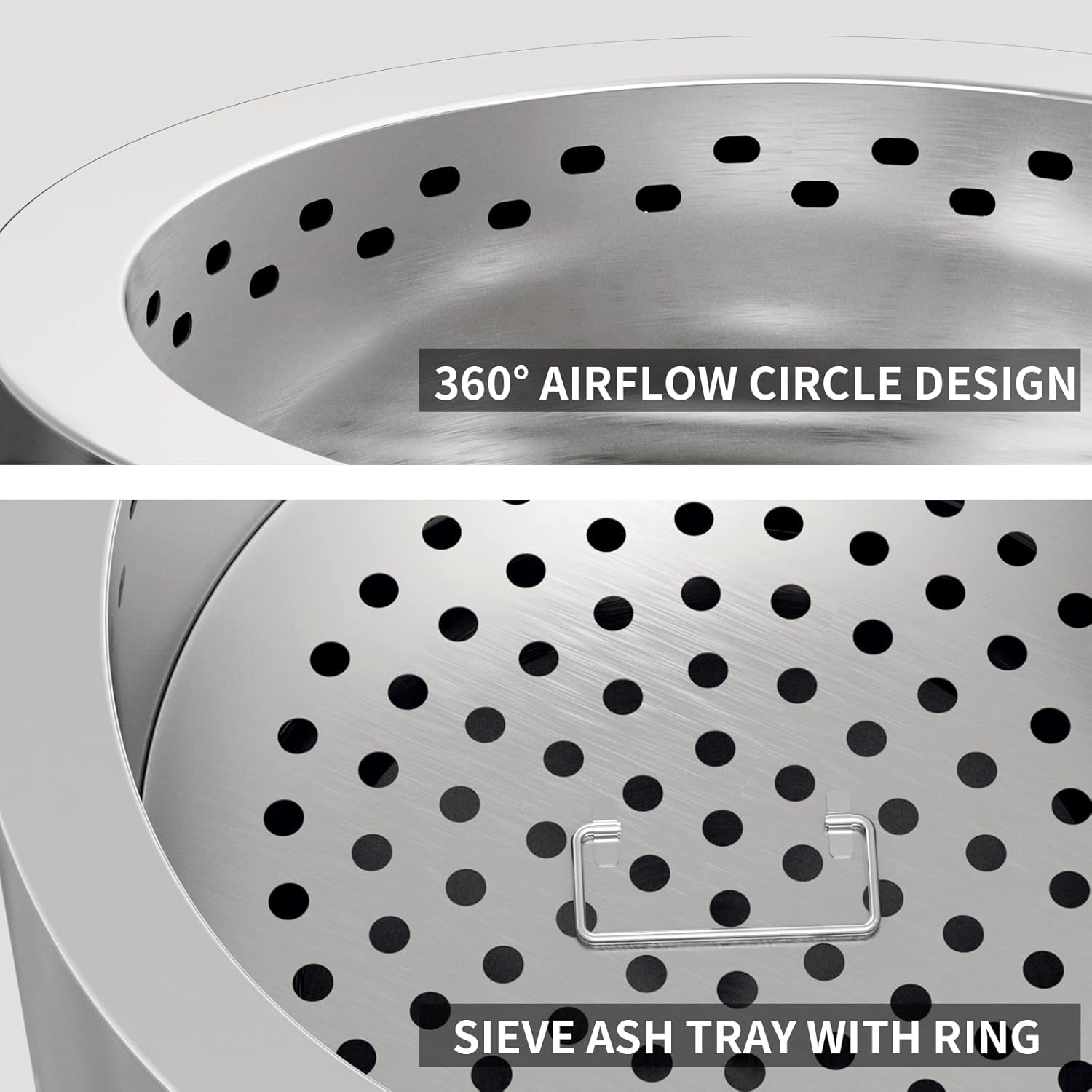

ภาพ: ภาพระยะใกล้ view highlighting the "360° Airflow Circle Design" at the top rim of the fire pit and the "Sieve Ash Tray with Ring" at the bottom. This image demonstrates key features contributing to the fire pit's efficiency and ease of cleaning.

Enjoying Your Fire Pit

Once the fire is established, you can enjoy the warmth and ambiance. The fire pit is suitable for gatherings of 6-10 people, perfect for roasting s'mores or simply relaxing.

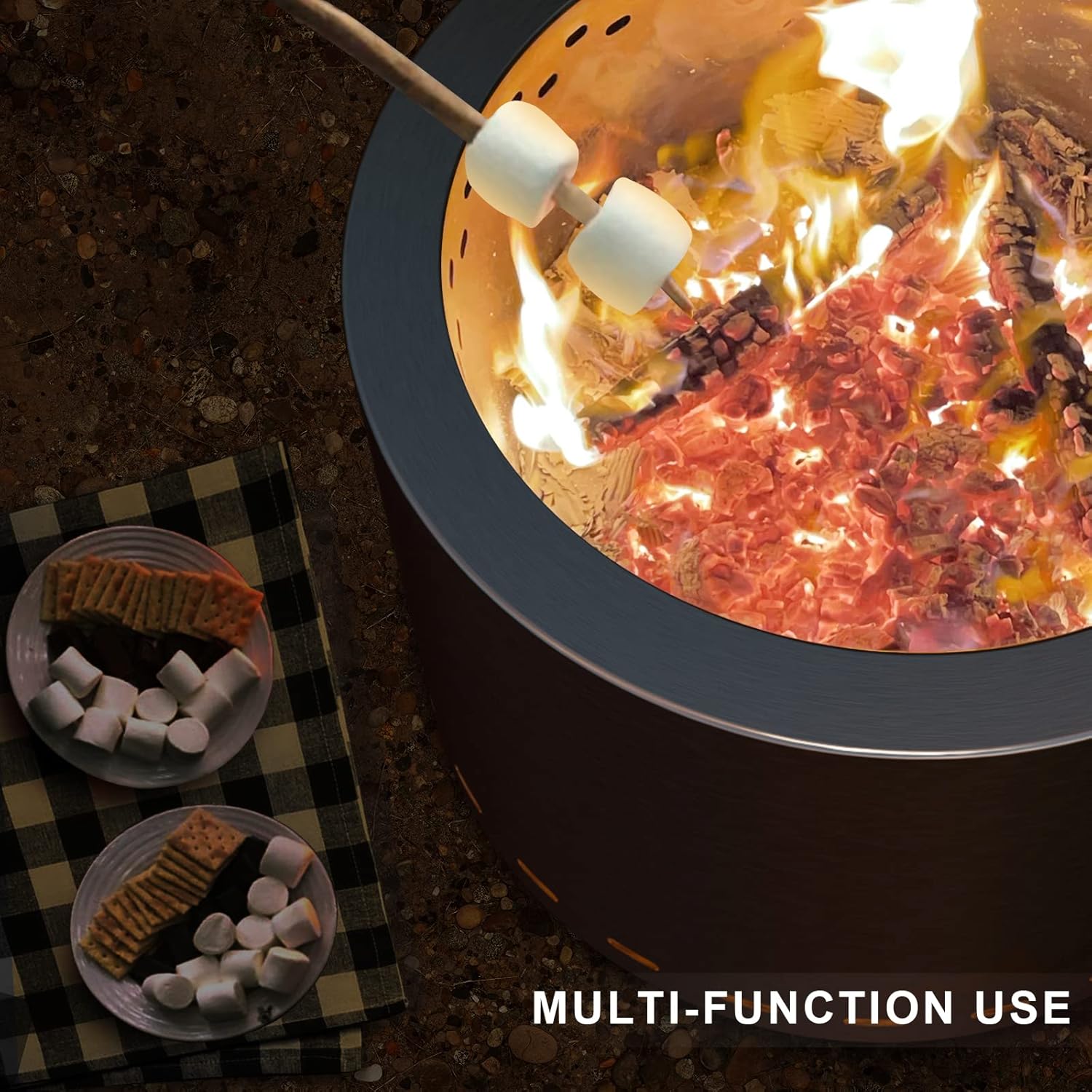

Image: A scene depicting individuals roasting marshmallows over the fire pit, illustrating its "Multi-Function Use" for recreational activities. This image shows the product in a typical usage scenario.

Image: A family gathered around the fire pit on a beach at dusk, with text indicating "GATHERING AROUND THE FIRE PIT OF 4-8". This image emphasizes the social aspect and capacity of the fire pit for outdoor enjoyment.

Image: The fire pit illuminated and burning brightly in a cozy backyard patio setting at night, surrounded by string lights and outdoor furniture. This image showcases the aesthetic appeal and ambiance the fire pit creates in an outdoor living space.

ดับไฟ

• Allow the fire to burn down naturally.
• Do not use water to extinguish the fire, as this can damage the stainless steel and create steam hazards.
• Once the flames have subsided and only embers remain, ensure they are completely cool before proceeding to cleaning or storage.

5. การบำรุงรักษาและการทำความสะอาด

Regular cleaning will ensure the longevity and optimal performance of your fire pit.

การกำจัดขี้เถ้า

The VONZOY fire pit features a removable ash pan for easy cleaning.

1. Ensure the fire pit is completely cool before attempting to clean.
2. Carefully lift the main fire pit chamber off the stand.
3. Remove the ash pan from the base.
4. Shake the internal sieve ash tray to collect ash, then dispose of the ash responsibly.
5. Wipe down the ash pan and sieve tray with a damp ผ้าถ้าจำเป็น
6. Reassemble the ash pan and fire pit chamber onto the stand.

This design prevents ash from accumulating inside the fire pit and blocking air holes, making cleaning simple and mess-free.

6. การจัดเก็บและการพกพา

Your VONZOY fire pit comes with a portable handbag for convenient transport and storage.

• Ensure the fire pit is completely cool and clean before storing.
• Disassemble the fire pit into its main components (main chamber, stand, ash pan).
• Place the components into the provided portable handbag.
• Store the fire pit in a dry, protected area when not in use to prevent exposure to elements.

Image: A woman placing the fire pit into the trunk of a car, with an inset image showing the "FREE PORTABLE HANDBAG". This image highlights the product's portability and ease of transport for outdoor activities.

7 การแก้ไขปัญหา

If you encounter issues with your fire pit, consider the following common solutions:

If problems persist, please contact customer support as detailed in the Warranty and Support section.

8. ข้อมูลจำเพาะผลิตภัณฑ์

Image: A visual representation of the fire pit's dimensions, labeled "DETAIL SIZE", indicating its height (19.7"), top diameter (19.5"), and internal diameter (15.7"). This image provides precise measurements for user reference.

9. การรับประกันและการสนับสนุนลูกค้า

VONZOY provides a professional warranty against manufacturing defects and lifetime customer support for your fire pit.

If you have any questions, problems, or require assistance, please refer to the customer service email provided in your product packaging or contact us through the official VONZOY store on Amazon:

Visit the VONZOY Store on Amazon

Our team is dedicated to ensuring your satisfaction with our products.
