คู่มือการใช้งานเสาอากาศ ABBREE AR-771C GMRS

1. บทนำ

This manual provides detailed instructions for the proper installation, operation, and maintenance of your ABBREE AR-771C GMRS Antenna. This antenna is designed to enhance the communication range and signal quality of compatible GMRS (General Mobile Radio Service) radios.

2. เนื้อหาบรรจุภัณฑ์

โปรดตรวจสอบว่าสินค้าทั้งหมดมีอยู่ในแพ็คเกจของคุณ:

• 1 x ABBREE AR-771C GMRS Antenna (SMA-Female)
• 1 x ปะเก็นยาง

The ABBREE AR-771C GMRS antenna sealed in its clear plastic retail packaging.

3. คุณสมบัติ

The ABBREE AR-771C GMRS Antenna offers several key features for improved radio performance:

• ช่วงความถี่: Optimized for GMRS frequencies, with a center frequency of 155/462MHz. It also supports receiving frequencies of 136-174MHz and 400-520MHz.
• ประเภทตัวเชื่อมต่อ: SMA-Female, ensuring compatibility with a wide range of GMRS radios.
• กำไรสูง: Provides 2.15dBi gain, which significantly increases communication distance and signal clarity compared to standard antennas.
• กำลังสูงสุด: Supports up to 10 Watts of power.
• ความยาว: Approximately 15.35 inches (39 cm), offering an optimal balance between performance and portability.
• ออกแบบ: Lightweight and flexible whip design, making it suitable for outdoor and portable use.

The ABBREE AR-771C GMRS antenna, a 15.35-inch whip antenna, shown with its product identification tag.

4. ความเข้ากันได้

The ABBREE AR-771C GMRS Antenna is compatible with various GMRS radios featuring an SMA-Female connector. Known compatible models include:

• Baofeng UV-5R (GMRS version)
• Baofeng GM-15Pro
• Baofeng WP-31
• Baofeng UV-9G
• Radioddity TD-H5
• Other GMRS radios with SMA-Female antenna connections

An illustration showing several GMRS radios, including Baofeng models, demonstrating the compatibility of the ABBREE AR-771C antenna with different devices.

5. การตั้งค่าและการติดตั้ง

Follow these steps to properly install your ABBREE AR-771C GMRS Antenna:

1. ระบุตัวเชื่อมต่อ: Locate the SMA-Female connector on the base of your ABBREE AR-771C antenna and the corresponding SMA-Male connector on your GMRS radio.
2. Prepare Gasket: Place the included rubber gasket over the SMA-Male connector on your radio. This gasket helps protect the antenna connector base from dust and moisture.
3. ติดเสาอากาศ: Carefully align the SMA-Female connector of the antenna with the SMA-Male connector on your radio. Gently screw the antenna onto the radio in a clockwise direction until it is finger-tight. Do not overtighten.
4. ตรวจสอบการเชื่อมต่อ: ตรวจสอบให้แน่ใจว่าเสาอากาศติดแน่นและตั้งตรง

รายละเอียด view of the SMA-Female connector on the ABBREE AR-771C antenna and the corresponding port on a radio, illustrating the connection mechanism.

The ABBREE AR-771C GMRS antenna attached to a compatible Baofeng handheld radio, highlighting its SMA-Female connector.

6. หลักการทำงาน

The ABBREE AR-771C is a high-gain whip antenna designed to optimize your radio's performance. Generally, a longer antenna with higher gain provides a stronger ability to receive and transmit signals. This antenna's 15.35-inch length and 2.15dBi gain contribute to improved signal propagation and reception, especially in outdoor environments, offering better performance than shorter, standard antennas.

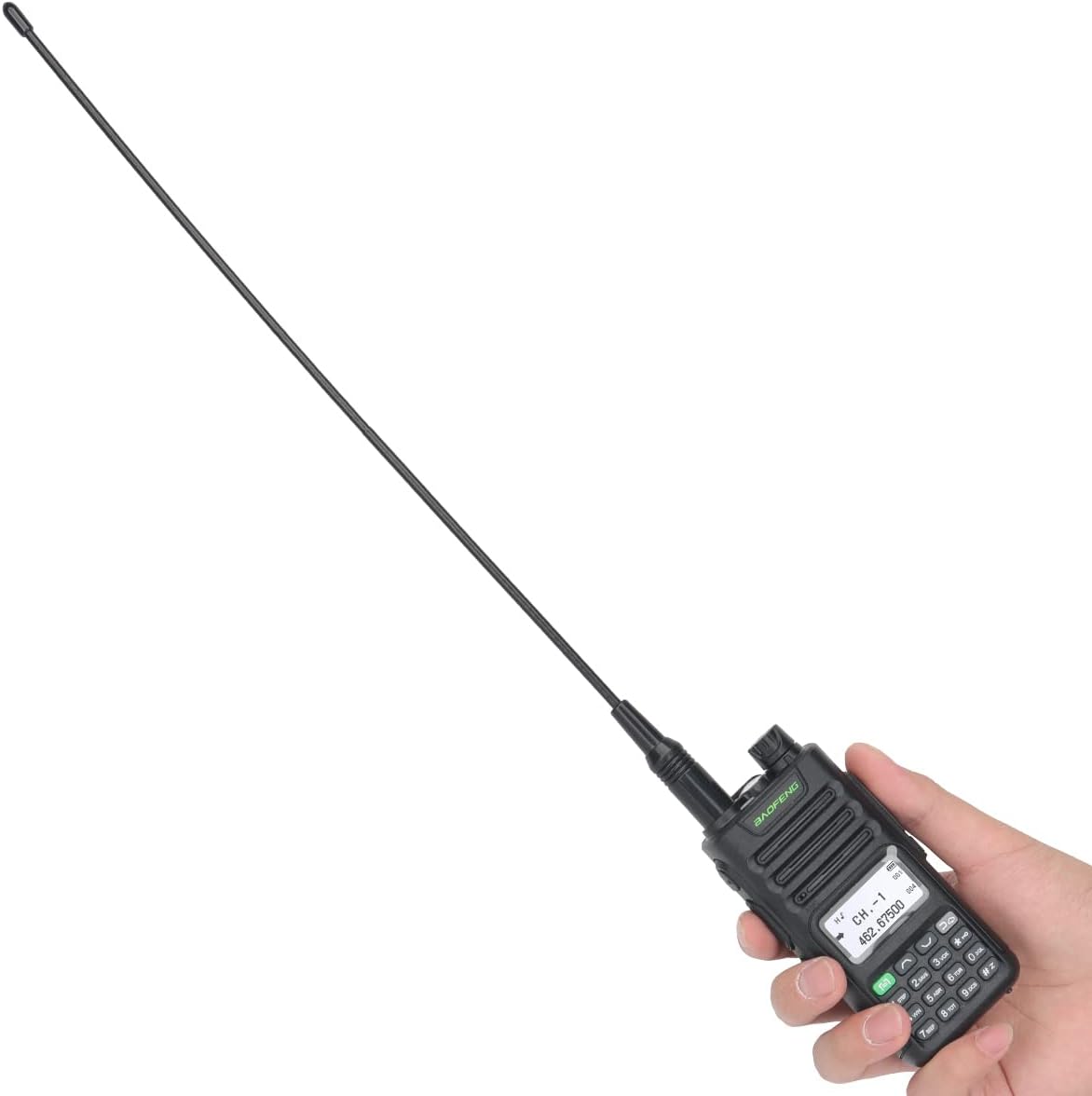

The ABBREE AR-771C GMRS antenna mounted on a radio, illustrating its full 15.35-inch length.

A hand holding the ABBREE AR-771C GMRS antenna, showcasing its flexible whip design.

7. การบำรุงรักษา

To ensure the longevity and optimal performance of your ABBREE AR-771C GMRS Antenna, follow these simple maintenance guidelines:

• การทำความสะอาด: Wipe the antenna periodically with a soft, damp ผ้าเพื่อขจัดฝุ่นและสิ่งสกปรก หลีกเลี่ยงการใช้สารเคมีที่รุนแรงหรือน้ำยาทำความสะอาดที่มีฤทธิ์กัดกร่อน
• พื้นที่จัดเก็บ: When not in use, store the antenna in a clean, dry place away from extreme temperatures and direct sunlight.
• การจัดการ: Avoid excessive bending or sharp impacts to the antenna, as this may damage the internal elements or the connector.
• การตรวจสอบตัวเชื่อมต่อ: Periodically check the SMA-Female connector for any signs of corrosion or damage. Ensure it remains clean and free of debris.

8 การแก้ไขปัญหา

If you encounter issues with your ABBREE AR-771C GMRS Antenna, consider the following:

• Antenna Not Screwing On Smoothly: Some radio models may have a shroud around the SMA-Male connector that prevents the antenna from fully seating. If the antenna does not screw on completely or feels obstructed, carefully inspect the radio's connector area. In rare cases, a small amount of material (e.g., 4mm) from the antenna's shroud might need to be carefully trimmed to allow for a proper connection. Exercise caution if attempting this, or consult a professional.
• การรับ/ส่งสัญญาณไม่ดี:
  • Ensure the antenna is securely and correctly attached to the radio.
  • Verify that your radio is set to the correct GMRS frequencies.
  • Check for environmental obstructions (e.g., buildings, terrain) that might be blocking the signal.
  • Test the antenna with another compatible radio if available, to rule out a radio-specific issue.

9. ข้อมูลจำเพาะ

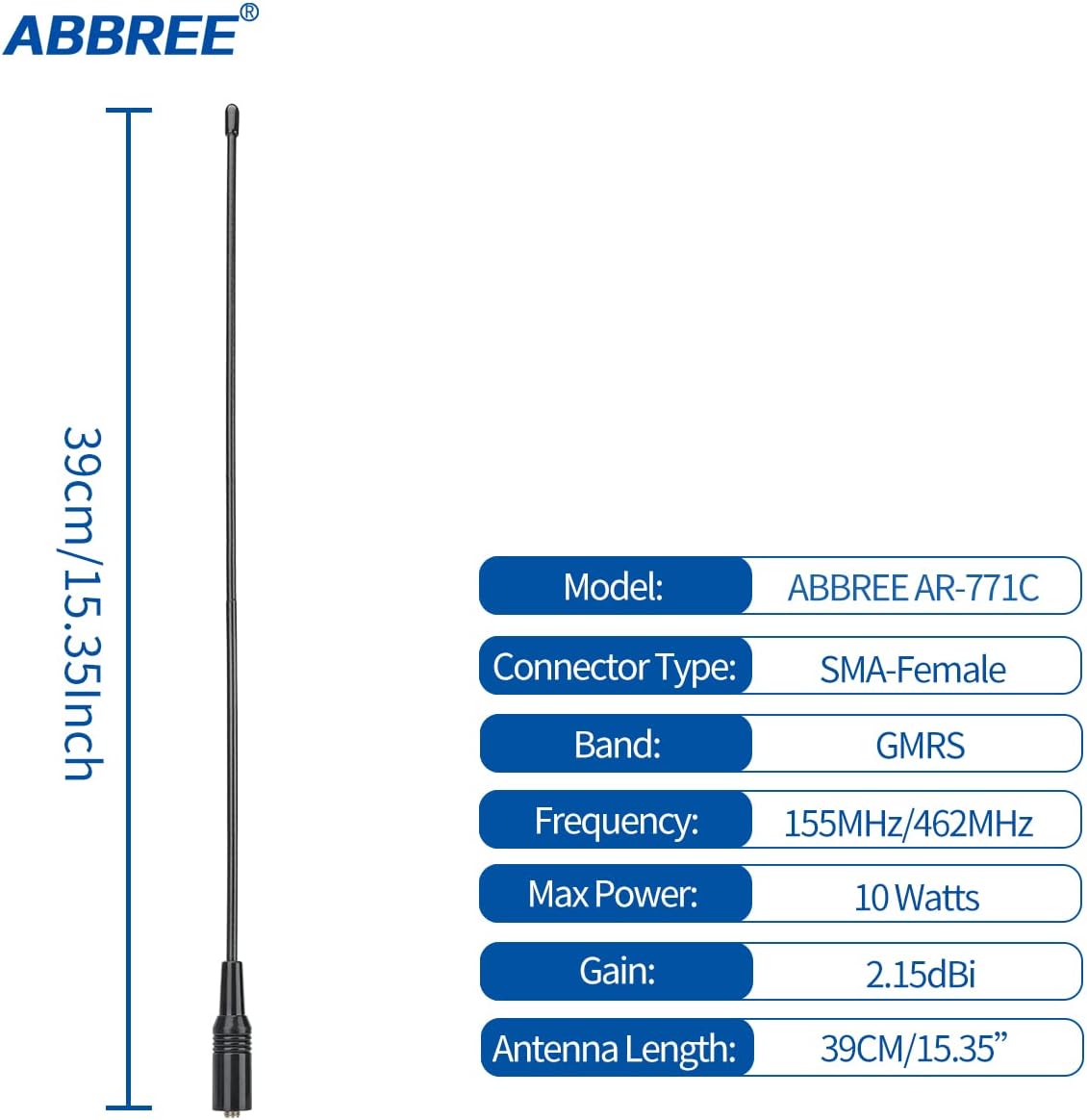

A visual representation of the ABBREE AR-771C antenna's key specifications, including model, connector type, band, frequency, max power, gain, and length.

A screen displaying SWR (Standing Wave Ratio) test results for the ABBREE AR-771C antenna, indicating its performance across different frequencies.

10. การสนับสนุน

For further assistance, technical support, or inquiries regarding your ABBREE AR-771C GMRS Antenna, please contact the manufacturer directly through their official support channels. Refer to the product packaging or the ABBREE webเว็บไซต์สำหรับข้อมูลการติดต่อ
