Luqeeg Automatic Tape Dispenser User Manual

1. บทนำ

This manual provides detailed instructions for the safe and efficient operation, setup, and maintenance of your Luqeeg Automatic Tape Dispenser. This electric tape cutting machine is designed for precision and efficiency, capable of handling various tape types and widths for industrial, commercial, and office applications.

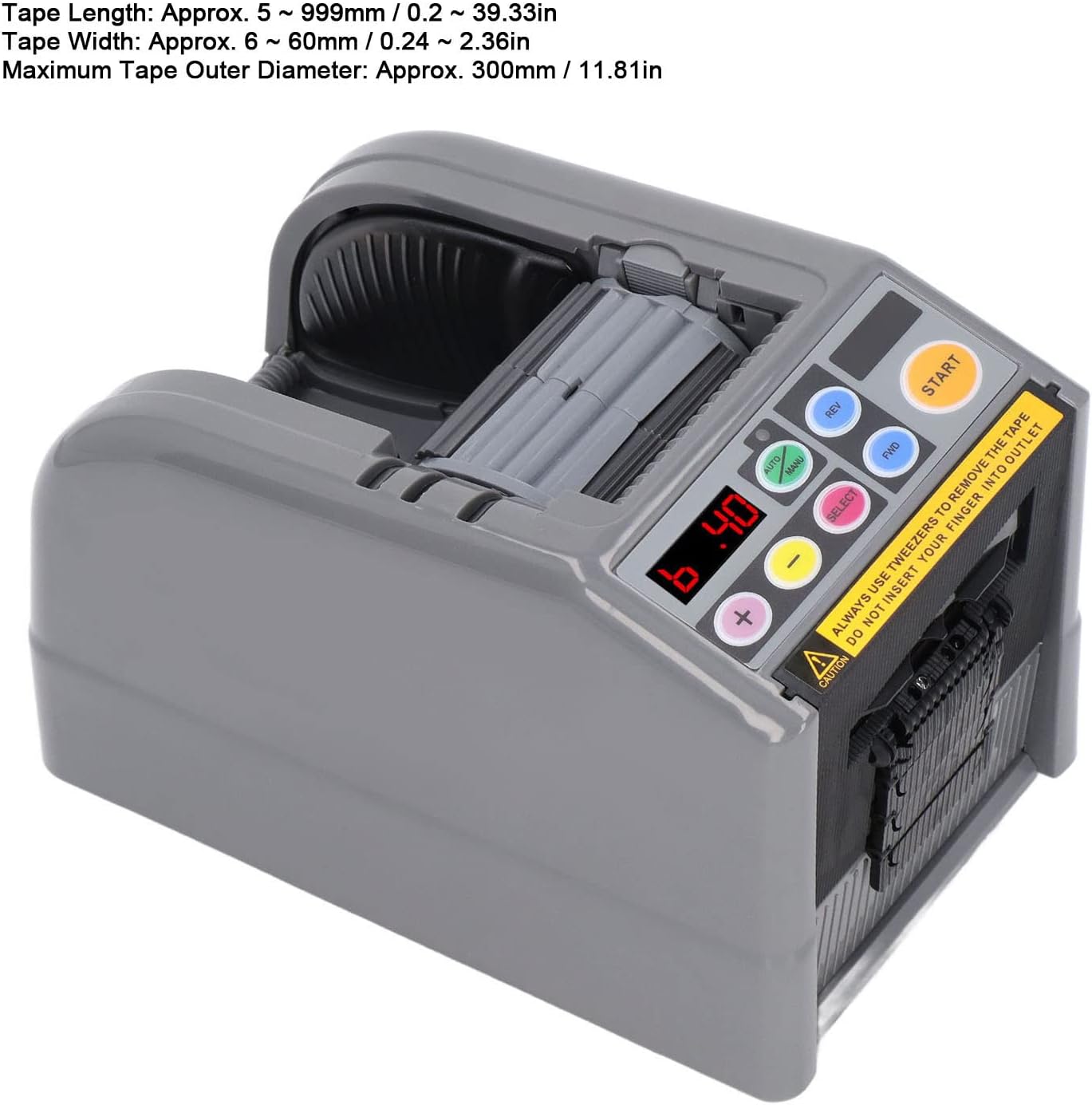

Figure 1: Luqeeg Automatic Tape Dispenser

2. ข้อมูลด้านความปลอดภัย

Please read all safety warnings and instructions carefully before operating the device to prevent injury or damage.

• แหล่งพลังงาน: Ensure the device is connected to a 110V power source as specified.
• ความปลอดภัยของใบมีด: The cutting blade is sharp. ALWAYS USE TWEEZERS TO REMOVE THE TAPE. DO NOT INSERT YOUR FINGER INTO THE OUTLET.
• สิ่งกีดขวาง: If tape becomes blocked, the machine will automatically stop. Do not force tape or attempt to clear obstructions with bare hands. Disconnect power before clearing.
• เด็กและสัตว์เลี้ยง: เก็บอุปกรณ์ให้ห่างจากมือเด็กและสัตว์เลี้ยง
• สิ่งแวดล้อม: Operate the dispenser in a dry, stable environment. Avoid exposure to water or excessive humidity.

Figure 2: Front panel with safety caution regarding tape removal.

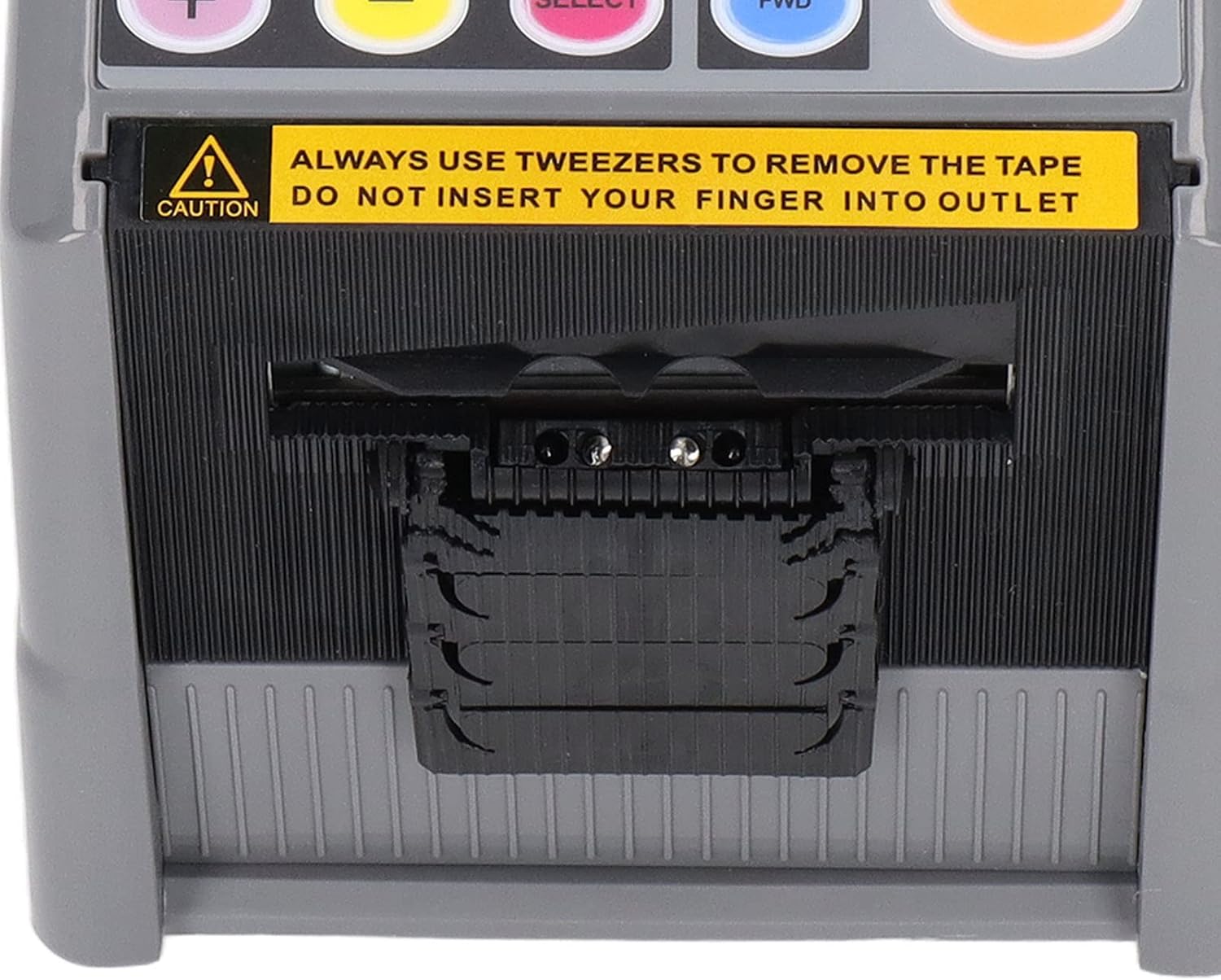

รูปที่ 3: รายละเอียด view of the tape outlet and caution label.

3. สินค้าหมดview

3.1 ส่วนประกอบ

The Luqeeg Automatic Tape Dispenser consists of the following main components:

• แผงควบคุม: Features a digital display, length adjustment buttons (+/-), mode selection (AUTO/MANU), reverse (REV), forward (FWD), and start (START) buttons.
• Tape Compartment: Area for loading one or two rolls of tape. Includes adjustable partition and bracket.
• Tape Outlet: Where cut tape is dispensed. Equipped with a safety warning.
• กลไกการตัด: Internal blade for precise tape cutting.
• Power Switch & Input: Located at the rear for power connection and control.

รูปที่ 4: หลัก view of the automatic tape dispenser.

3.2 คุณสมบัติหลัก

• Intelligent Desktop Design: Allows setting up to 6 groups of different cutting lengths (5-999mm) and pre-setting cutting quantities. Settings are retained after restart.
• โหมดอัตโนมัติ/โหมดแมนนวล: Easily switch between automatic and manual operation to suit various working conditions.
• High Precision Cutting: Ensures flat and clean incisions with an error margin of approximately 1mm.
• ประหยัดเวลาและแรงงาน: Memory function for repeated cuts and ability to cut two rolls of tape simultaneously, enhancing work efficiency.
• Wide Tape Compatibility: Suitable for tapes with widths from 6mm to 60mm, including electrical tape, scotch tape, filament tape, double-sided tape, sealing tape, and more.
• เซ็นเซอร์อัจฉริยะ: Automatically stops operation if tape becomes blocked, preventing damage.

รูปที่ 5: ด้านข้าง view illustrating key operational features.

รูปที่ 6: เกินview of the dispenser's benefits and modes.

4. การตั้งค่า

4.1 การแกะกล่อง

1. Carefully remove the tape dispenser from its packaging.
2. Inspect the device for any signs of damage. If damaged, do not operate and contact customer support.
3. Place the dispenser on a stable, flat surface.

4.2 การเชื่อมต่อสายไฟ

1. Ensure the power switch located at the rear of the unit is in the 'OFF' position.
2. Connect the power cord to the power input port on the back of the dispenser.
3. Plug the other end of the power cord into a standard 110V AC electrical outlet.

รูปที่ 7: ด้านหลัง view with power connection details.

4.3 Loading Tape

1. Open the top cover of the tape dispenser.
2. Adjust the internal partition and bracket to accommodate the width and diameter of your tape roll(s). The dispenser supports tape widths from 6mm to 60mm and can hold one or two rolls.
3. Place the tape roll(s) onto the spindle, ensuring the adhesive side faces down towards the cutting mechanism.
4. Pull the leading edge of the tape through the tape path, guiding it under the rollers and towards the tape outlet. Ensure it is properly aligned.
5. ปิดฝาด้านบนให้แน่น

รูปที่ 8: ภายใน view showing the tape loading path.

รูปที่ 9: ด้านล่าง view illustrating the partition and bracket for tape adjustment.

รูปที่ 10: ภายใน view showing the adjustable partition.

5. คู่มือการใช้งาน

5.1 แผงควบคุมโอเวอร์view

The control panel features a digital display and several buttons:

• จอแสดงผลดิจิตอล: Shows current cutting length or quantity.
• '+' / '-': Adjusts cutting length or quantity.
• เลือก: Toggles between setting cutting length and quantity, or selects memory groups.
• AUTO / MANU: Switches between automatic and manual operating modes.
• REV (ย้อนกลับ): Rewinds tape slightly.
• FWD (เดินหน้า): Advances tape slightly.
• เริ่ม: Initiates the cutting process in automatic mode or dispenses one piece in manual mode.

Figure 11: Control panel layout.

5.2 Setting Cutting Length and Quantity

1. Turn on the power switch. The digital display will illuminate.
2. กดปุ่ม เลือก button to cycle between setting the cutting length and the number of pieces.
3. ใช้ - และ - buttons to adjust the desired cutting length (5-999mm) or the number of pieces.
4. The dispenser allows storing up to 6 different length/quantity settings. Consult the full product manual for detailed instructions on saving and recalling these presets.

5.3 โหมดอัตโนมัติ

1. กดปุ่ม ออโต้/แมนยู button until 'AUTO' is indicated on the display (if applicable, or by mode indicator light).
2. Set the desired cutting length and quantity as described in Section 5.2.
3. กดปุ่ม เริ่ม button. The dispenser will automatically cut and dispense the specified number of tape pieces at the set length.
4. The machine will pause after dispensing the set quantity. To continue, press เริ่ม อีกครั้ง.

5.4 โหมดแมนนวล

1. กดปุ่ม ออโต้/แมนยู button until 'MANU' is indicated on the display (if applicable, or by mode indicator light).
2. Set the desired cutting length using the - และ - ปุ่ม
3. การกดแต่ละครั้งของ เริ่ม button will dispense one piece of tape at the set length.

5.5 Applicable Tape Types

The dispenser is compatible with a wide range of tapes, including but not limited to:

• เทปพันสายไฟ
• สก็อตช์เทป
• Filament Tape
• Glass Wallpaper Tape
• เทปกาวสองหน้า
• เทปปิดผนึก
• Technical Tape
• เทปไฟเบอร์
• Silicone Polyester Tape
• Kraft Paper Tape
• เทปกาว
• เทปพลาสติก

เทปใส

Kraft Paper Tape

เทปกาวสองหน้า

Technical Tape

Silicone Polyester Tape

เทปกาว

รูปที่ 12: อดีตamples of compatible tape types.

6. การบำรุงรักษา

Regular maintenance ensures optimal performance and extends the lifespan of your tape dispenser.

• การทำความสะอาด: Regularly wipe the exterior of the dispenser with a soft, dry cloth. For internal cleaning, ensure the power is off and unplugged. Use a soft brush or compressed air to remove tape residue or dust from the tape path and cutting area.
• การตรวจสอบใบมีด: Periodically inspect the cutting blade for dullness or damage. A dull blade can lead to uneven cuts. Replacement blades may be available from the manufacturer. Always use tweezers for blade handling.
• Roller Check: Ensure the tape rollers are clean and free of adhesive buildup to maintain smooth tape feeding.

7 การแก้ไขปัญหา

โปรดดูตารางด้านล่างเพื่อดูปัญหาทั่วไปและวิธีแก้ไข

8. ข้อมูลจำเพาะ

Figure 13: Key dimensions and specifications.

9. การรับประกันและการสนับสนุน

Luqeeg is committed to providing high-quality products. This electronic tape dispenser comes with a quality assurance guarantee. If you encounter any issues or have questions regarding your purchase, please do not hesitate to contact our customer support team. We aim to resolve your concerns within 24 hours.

For support, please refer to the contact information provided with your purchase or visit the official Luqeeg store page on Amazon: ร้าน Luqeeg.
