คู่มือการใช้งานแปรงทำความสะอาดไฟฟ้า Beldray รุ่น LA082718EU7 Deep Clean

1. บทนำ

The Beldray LA082718EU7 Deep Clean Electric Cleaning Brush is designed for fast, versatile, and precise deep cleaning tasks around your home. This cordless, handheld power brush is part of the Deep Clean collection and features four interchangeable oscillating brush heads to effectively remove dirt, grease, and stubborn stains from various surfaces.

Its ergonomic design with a non-slip handle ensures comfortable and secure use, making daily cleaning tasks less of a chore. This multi-functional brush is ideal for use in bathrooms, kitchens, and even for refreshing items like shoes or pet bowls.

2. ส่วนประกอบผลิตภัณฑ์

แพ็คเกจนี้ประกอบด้วยส่วนประกอบต่อไปนี้:

• 1 x Beldray Deep Clean Electric Cleaning Brush (Main Unit)
• 1 x Large Bristle Brush Head
• 1 x Small Bristle Brush Head
• 1 x Cone Brush Head
• 1 x Soft Bristle Brush Head

Note: 4 x AA batteries are required for operation and are not included.

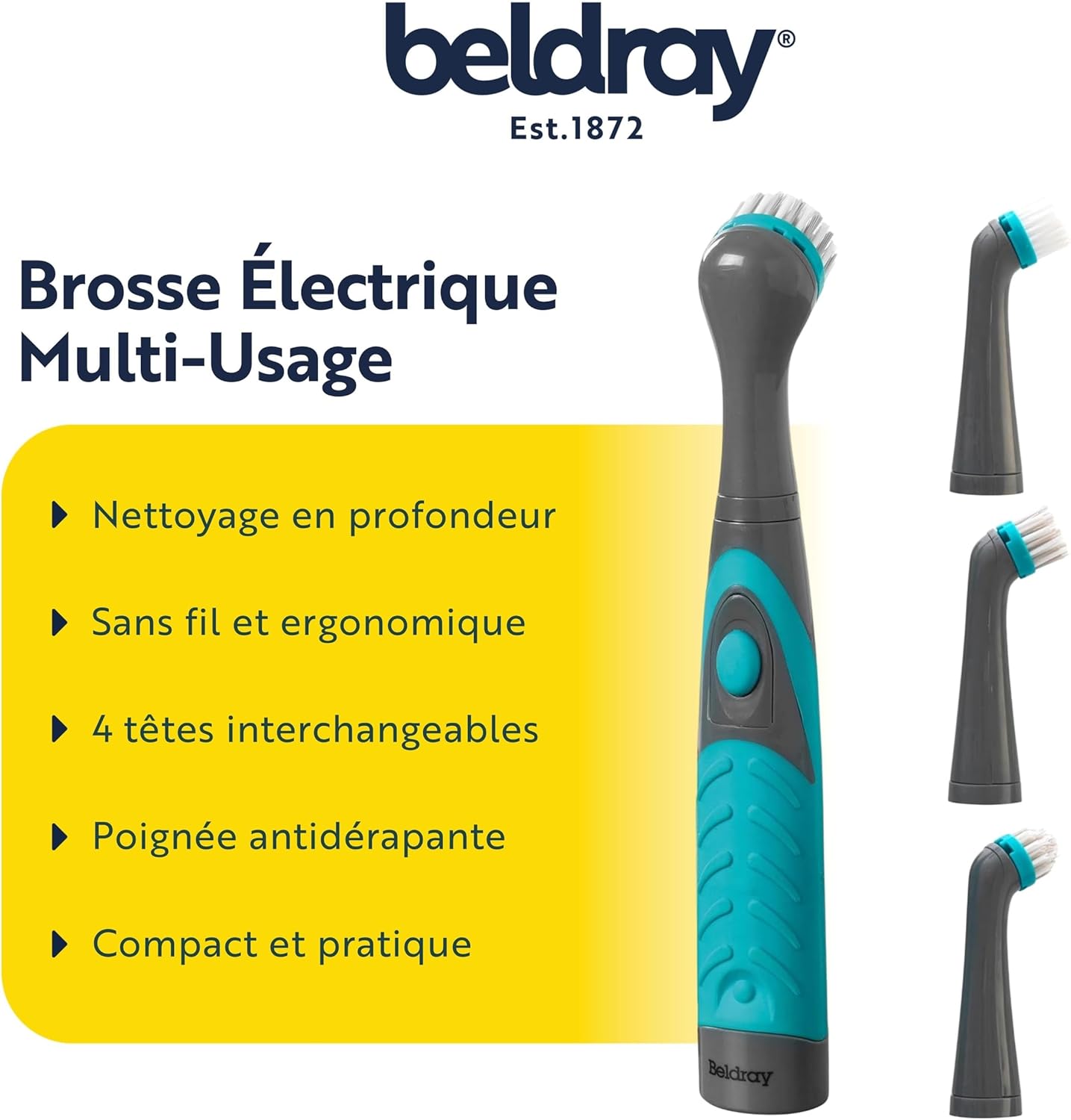

Image: The Beldray Deep Clean Electric Cleaning Brush main unit shown with its four distinct interchangeable brush heads.

3. การตั้งค่า

3.1 การติดตั้งแบตเตอรี่

1. Locate the battery compartment at the base of the brush handle.
2. Twist or slide the battery compartment cap to open it.
3. Insert 4 x AA batteries, ensuring they are placed with the correct polarity as indicated by the symbols inside the compartment.
4. Securely fasten the battery compartment cap until it clicks into place.

3.2 การติดตั้งหัวแปรง

1. Select the desired brush head for your cleaning task.
2. Align the brush head with the connection point on the main unit.
3. Insert the brush head and gently twist it clockwise until it is securely fastened. Ensure it does not wobble.

4. คู่มือการใช้งาน

Once the batteries are installed and a brush head is attached, the Beldray Deep Clean Electric Cleaning Brush is ready for use.

4.1. การดำเนินการทั่วไป

1. Press the power button located on the handle to turn the brush ON. The brush head will begin to oscillate.
2. Apply the oscillating brush head to the surface you wish to clean.
3. Move the brush gently over the surface. Do not press too hard, as excessive pressure can prevent the brush head from rotating effectively.
4. After cleaning, press the power button again to turn the brush OFF.

4.2 การใช้หัวแปรงที่แตกต่างกัน

Large Bristle Brush Head

Ideal for larger areas and tougher stains. Perfect for cleaning grout lines and tiles in bathrooms and kitchens.

Image: The large bristle brush head is shown effectively cleaning grout between bathroom tiles.

Small Bristle Brush Head

Designed for smaller, more intricate areas. Excellent for cleaning stovetops, appliance crevices, and other hard-to-reach spots.

Image: The small bristle brush head is depicted cleaning around the burners of a stovetop.

หัวแปรงทรงกรวย

Specifically shaped for corners, crevices, and tight spaces. Useful for cleaning around faucets, sink edges, and other angled areas.

Image: The cone brush head is shown cleaning the base of a kitchen faucet.

Soft Bristle Brush Head

Gentle yet effective, suitable for delicate surfaces and general utility cleaning. Can be used for refreshing shoes or cleaning pet bowls.

Image: The soft bristle brush head is shown cleaning the rubber seal inside a washing machine drum.

Image: The Beldray brush being used to clean grout lines on a tiled surface.

Image: The Beldray brush cleaning around a sink drain, demonstrating its precision.

5. การบำรุงรักษา

5.1 การทำความสะอาดหัวแปรง

After each use, it is recommended to clean the brush heads to maintain hygiene and performance:

• Remove the brush head from the main unit by twisting it counter-clockwise.
• Rinse the brush head under running water to remove any dirt or debris.
• For stubborn residue, use a mild soap and gently scrub the bristles.
• Allow the brush head to air dry completely before reattaching or storing.

5.2 พื้นที่จัดเก็บ

Store the Beldray Deep Clean Electric Cleaning Brush and its accessories in a clean, dry place away from direct sunlight and extreme temperatures. The compact size (approximately 26 x 2.6 x 2.6 cm) allows for convenient storage in most utility drawers or cabinets.

6 การแก้ไขปัญหา

7. ข้อมูลจำเพาะ

8. การรับประกันและการสนับสนุน

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Beldray webไซต์ เงื่อนไขการรับประกันเฉพาะอาจแตกต่างกันไปในแต่ละภูมิภาค

If you encounter any issues not covered in this manual, please contact Beldray customer service for assistance.
