This manual provides instructions for the installation, operation, and maintenance of your Whirlpool Direct Cool 305 IMPRO Plus PRM 3S single door refrigerator. Please read this manual thoroughly before using your appliance to ensure safe and efficient operation.
The Whirlpool 305 IMPRO Plus PRM 3S refrigerator features IntelliFrost Technology for intuitive cooling and intelligent defrosting, utilizing a temperature sensor for optimized performance. It offers 4 cooling modes to suit various needs.

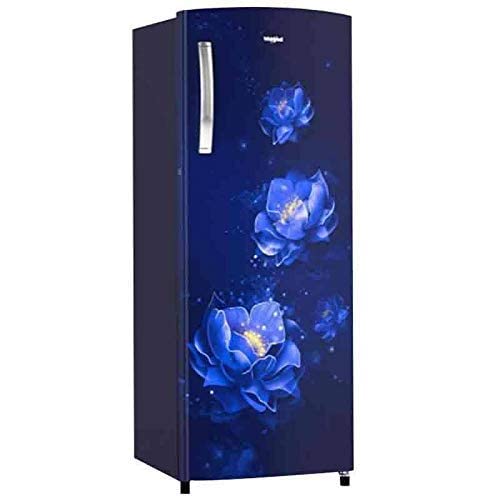

รูปที่ 1: ภายนอก view of the Whirlpool 305 IMPRO Plus PRM 3S refrigerator, showcasing its floral design.
2. ข้อมูลด้านความปลอดภัย
ปฏิบัติตามข้อควรระวังด้านความปลอดภัยพื้นฐานเสมอเมื่อใช้เครื่องใช้ไฟฟ้านี้ เพื่อลดความเสี่ยงต่อการเกิดไฟไหม้ ไฟฟ้าช็อต หรือการบาดเจ็บ
- ตรวจสอบให้แน่ใจว่าตู้เย็นมีการต่อสายดินอย่างถูกต้อง
- ห้ามใช้เครื่องใช้ไฟฟ้าภายในช่องเก็บอาหาร เว้นแต่จะเป็นประเภทที่ผู้ผลิตแนะนำ
- ห้ามเก็บวัตถุระเบิด เช่น กระป๋องสเปรย์ที่มีเชื้อเพลิงไวไฟไว้ในเครื่องใช้ไฟฟ้านี้
- รักษาช่องระบายอากาศในกล่องเครื่องใช้ไฟฟ้าหรือในโครงสร้างในตัวให้ไม่มีสิ่งกีดขวาง
- อย่าทำให้วงจรสารทำความเย็นเสียหาย
- เครื่องใช้ไฟฟ้าตัวนี้ไม่ได้มีวัตถุประสงค์เพื่อให้บุคคล (รวมทั้งเด็ก) ที่มีความบกพร่องทางร่างกาย ทางประสาทสัมผัส หรือทางจิตใจ หรือขาดประสบการณ์และความรู้ ใช้งาน เว้นแต่จะมีการดูแลหรือคำแนะนำเกี่ยวกับการใช้เครื่องใช้ไฟฟ้าโดยบุคคลที่รับผิดชอบด้านความปลอดภัยของบุคคลดังกล่าว
- ควรมีผู้ดูแลเด็กเพื่อให้แน่ใจว่าไม่ได้เล่นกับเครื่องใช้ไฟฟ้าดังกล่าว
3. คู่มือการติดตั้ง
3.1 การแกะกล่อง
แกะวัสดุบรรจุภัณฑ์ทั้งหมดออกอย่างระมัดระวัง รวมถึงเทปกาวและฟิล์มป้องกัน ตรวจสอบตู้เย็นว่ามีรอยเสียหายใดๆ เกิดขึ้นระหว่างการขนส่งหรือไม่ หากพบความเสียหายใดๆ ให้แจ้งผู้ค้าปลีกทันที
3.2 การจัดวาง
- วางตู้เย็นบนพื้นผิวเรียบและมั่นคง
- เว้นพื้นที่รอบตู้เย็นให้เพียงพอเพื่อการระบายอากาศที่เหมาะสม (อย่างน้อย 10 ซม. ที่ด้านหลังและด้านข้าง)
- หลีกเลี่ยงแสงแดดโดยตรงหรือแหล่งความร้อน
- Ensure the ambient temperature is within the recommended operating range for refrigerators.
3.3 การติดตั้งมือจับ
The refrigerator comes with handles that need to be installed. Locate the handles and the screws provided in the packaging.
- Align the handle with the pre-drilled holes on the refrigerator door.
- Secure the handle firmly using the screws. Do not overtighten.
3.4 การเชื่อมต่อสายไฟ
ก่อนเสียบปลั๊ก ให้แน่ใจว่ามีเสียงtage specified on the rating label matches your household power supply. Plug the refrigerator into an exclusive, grounded wall outlet. Do not use extension cords or adapter plugs.
ปล่อยให้ตู้เย็นทิ้งไว้ประมาณ 2-4 ชั่วโมงก่อนเสียบปลั๊กเพื่อให้สารทำความเย็นตกตะกอน

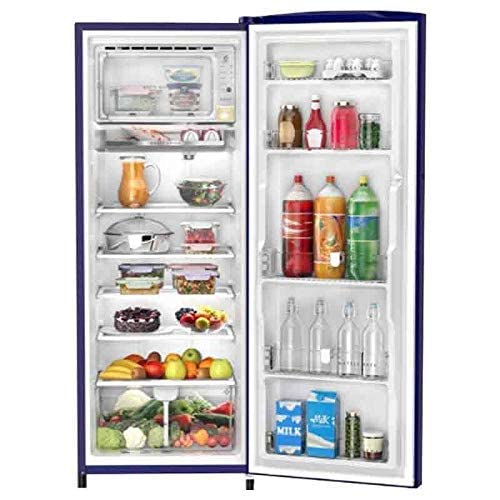

รูปที่ 2 : ภายใน view of the refrigerator, showing shelves, door bins, and the vegetable crisper.
4. คู่มือการใช้งาน
4.1 การควบคุมอุณหภูมิ
The refrigerator is equipped with a temperature control dial, typically located inside the fresh food compartment. Adjust the dial to set the desired cooling level. A higher number usually indicates colder temperatures.
- ตั้งค่าเริ่มต้น: For first-time use, set the temperature control to a medium setting and allow the refrigerator to run for several hours before storing food.
- การปรับแต่ง: Adjust the setting based on ambient temperature and the amount of food stored.
4.2 IntelliFrost Technology and Cooling Modes
Your Whirlpool refrigerator features IntelliFrost Technology, which intelligently senses temperature and defrosts as needed, optimizing cooling performance and energy efficiency. It offers 4 distinct cooling modes:
- Fast Ice Mode: Activates rapid cooling to produce ice in approximately 1 hour. Ideal for quick ice requirements.
- Quick Chill Mode: Provides accelerated cooling for beverages and other items, ensuring they reach desired temperatures faster. This also enables the fastest bottle cooling.
- โหมดทุกวัน: Standard operating mode for daily use, balancing cooling efficiency and energy consumption.
- โหมดประหยัดพลังงาน: Optimizes energy consumption for periods when less cooling is required or during off-peak hours.
Refer to the control panel or internal settings for selecting these modes.
4.3 Auto-Connect to Home Inverter
This refrigerator is designed to automatically connect to your home inverter during power outages, ensuring continuous cooling and food preservation. No manual intervention is typically required for this feature to function, provided your home inverter system is properly installed and connected.

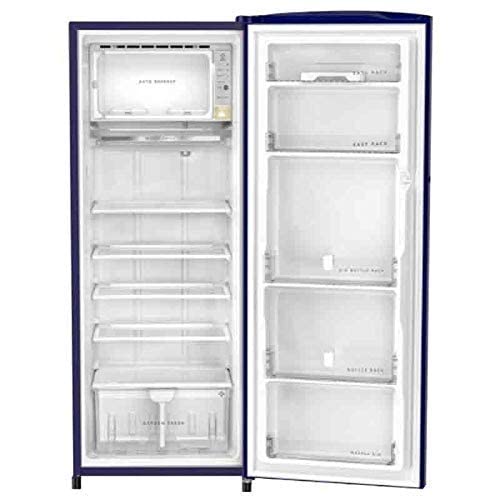

Figure 3: Empty interior of the refrigerator, highlighting the shelf configuration and storage compartments.
5. การบำรุงรักษา
5.1 การทำความสะอาด
- ภายใน: ทำความสะอาดภายในรถเป็นประจำด้วยน้ำสบู่เจือจางและน้ำอุ่น ล้างออกให้สะอาดและเช็ดให้แห้ง ห้ามใช้สารทำความสะอาดที่มีฤทธิ์กัดกร่อนหรือสารเคมีรุนแรง
- ภายนอก: เช็ดพื้นผิวภายนอกด้วยผ้าเนื้อนุ่มampชุบน้ำและผงซักฟอกอ่อนๆ
- ปะเก็นประตู: ทำความสะอาดซีลยางขอบประตูเป็นประจำเพื่อให้แน่ใจว่าปิดสนิทดี
- คอยล์คอนเดนเซอร์: ควรทำความสะอาดคอยล์คอนเดนเซอร์ที่ด้านหลังหรือด้านล่างของตู้เย็นเป็นระยะ เพื่อรักษาประสิทธิภาพการทำงาน ถอดปลั๊กเครื่องใช้ไฟฟ้าก่อนทำความสะอาด
5.2 ระบบละลายน้ำแข็งอัตโนมัติ
This refrigerator features an automatic defrost system (Direct Cool with IntelliFrost Technology), which minimizes the need for manual defrosting. The system intelligently defrosts the evaporator coil as required. If excessive frost builds up, ensure the door is sealing properly and that the temperature setting is not excessively low.
5.3 พลังงาน Outage
กรณีไฟดับtage, keep the refrigerator door closed to maintain the internal temperature for as long as possible. The auto-connect to home inverter feature will activate if an inverter is connected.
6 การแก้ไขปัญหา
ก่อนติดต่อฝ่ายบริการลูกค้า โปรดแจ้งอีกครั้งview ปัญหาทั่วไปต่อไปนี้และวิธีแก้ไข:
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| ตู้เย็นไม่ทำงาน | ไม่มีแหล่งจ่ายไฟ; ไม่ได้เสียบสายไฟ; เบรกเกอร์ตัดวงจร | ตรวจสอบการเชื่อมต่อไฟฟ้า รีเซ็ตเบรกเกอร์ |
| อุณหภูมิไม่เย็นพอ | ตั้งอุณหภูมิไว้สูงเกินไป เปิดประตูบ่อยเกินไป ใส่อาหารร้อนในปริมาณมาก การระบายอากาศไม่ดี | Adjust temperature setting; minimize door openings; allow hot food to cool before storing; ensure adequate clearance around the unit. |
| เสียงที่ผิดปกติ | ตู้เย็นไม่ตั้งตรง มีสิ่งของสั่นอยู่ข้างใน และมีเสียงคอมเพรสเซอร์ดัง (ปกติ) | ปรับระดับตู้เย็น จัดเรียงสิ่งของใหม่ เสียงคอมเพรสเซอร์ดังเป็นเรื่องปกติขณะใช้งาน |
| น้ำบนพื้น. | Drain tube blocked or dislodged. | Clear the drain tube; ensure it is correctly positioned. |
7. ข้อมูลจำเพาะ
| ยี่ห้อ | วังน้ำวน |
| ชื่อรุ่น | 305 IMPRO Plus PRM |
| หมายเลขรุ่น | 305 IMPRO Plus PRM 3S |
| ความจุ | 280 ลิตร |
| การกำหนดค่า | ช่องแช่แข็งด้านบน |
| ประเภทของระบบละลายน้ำแข็ง | Direct Cool (Automatic Defrost) |
| จำนวนประตู | 1 |
| เล่มที่tage | 230 โวลต์ (AC) |
| ประเภทชั้นวาง | พลาสติก |
| การจัดอันดับดาวของ BEE | 3 ดาว |
| สารทำความเย็น | R-410A |
| ส่วนประกอบที่รวมอยู่ | ที่จับ |
8. ข้อมูลการรับประกัน
Your Whirlpool Direct Cool 305 IMPRO Plus PRM 3S Refrigerator comes with a comprehensive warranty:
- การรับประกันสินค้า : 1 Year Warranty on the entire product from Whirlpool.
- การรับประกันคอมเพรสเซอร์: 10 Years Warranty on the compressor from Whirlpool.
Please retain your purchase receipt for warranty claims. The warranty covers manufacturing defects under normal use. For detailed terms and conditions, refer to the warranty card provided with your appliance or contact Whirlpool customer service.
9. การสนับสนุนลูกค้า
For any queries, service requests, or technical assistance regarding your Whirlpool refrigerator, please contact Whirlpool customer support.
ข้อมูลติดต่อผู้ผลิต:
WHIRLPOOL HOUSE PLOT NO. 40, SECTOR 44, GURUGRAM – 122002, HARYANA, INDIA
Please visit the official Whirlpool website or refer to the contact details provided in your warranty documentation for the most current support information, including phone numbers and email addresses.
