Thsinde Handheld Digital Laser Tachometer User Manual

การแนะนำ

Thank you for choosing the Thsinde Handheld Digital Laser Tachometer. This non-contact RPM meter is designed for accurate measurement of motor speeds, machinery, and other rotating devices. Please read this manual thoroughly before use to ensure proper operation and maintenance.

Figure 1: Thsinde Handheld Digital Laser Tachometer

การตั้งค่า

1. การติดตั้งแบตเตอรี่

The tachometer requires a 9V battery (not included). To install, open the battery compartment located at the bottom of the handle, insert the 9V battery, ensuring correct polarity, and close the compartment securely.

2. Applying Reflective Tape

For accurate non-contact measurements, a small piece of reflective tape must be applied to the rotating object. Ensure the tape is clean and securely attached to a flat, non-reflective surface on the object. Only one piece of tape is typically required for measurement.

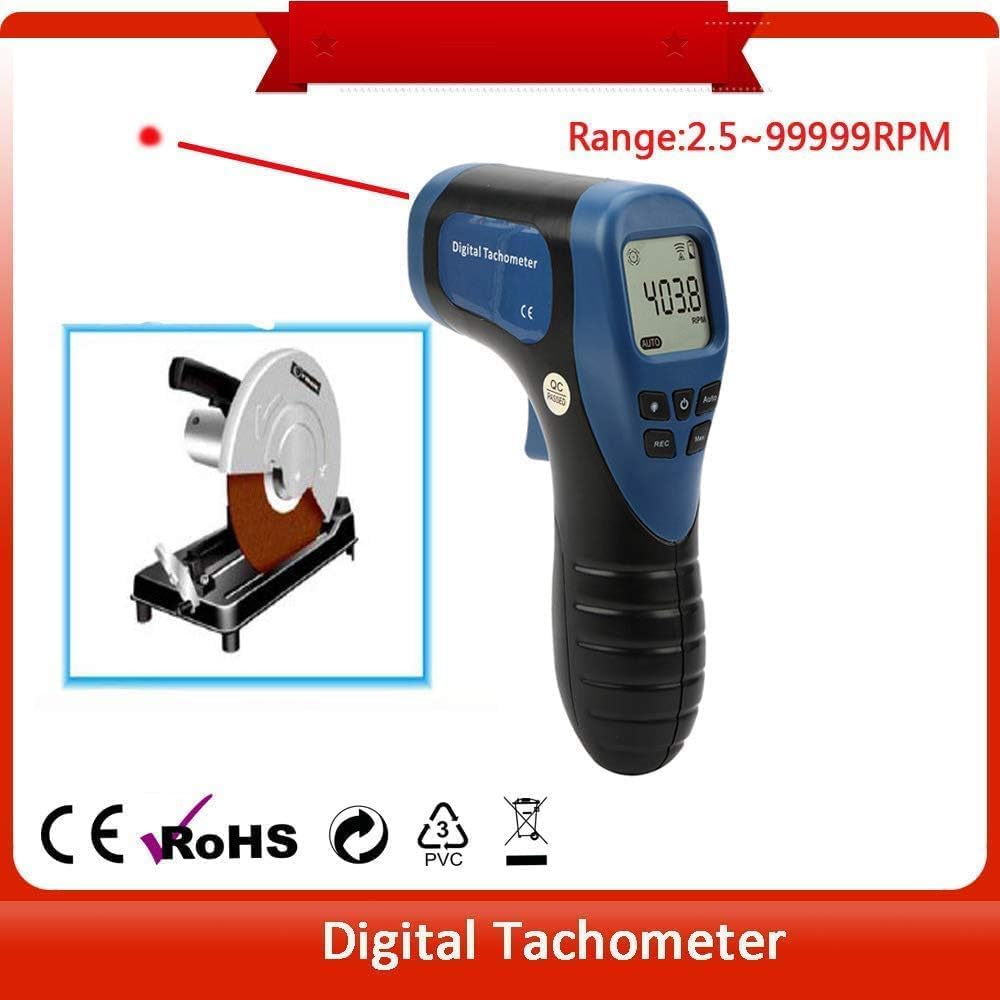

Figure 2: Tachometer in use, demonstrating reflective tape application on a rotating object.

คำแนะนำการใช้งาน

1. เปิด/ปิดเครื่อง

Press the power button (usually the trigger or a dedicated button) to turn on the device. The LCD screen will illuminate. The device features an auto-off function to conserve battery power.

2. การวัด

1. Ensure the reflective tape is applied to the rotating object.
2. Point the laser beam at the reflective tape on the rotating object. The optimal measuring distance is between 2 to 20 inches (50-500mm).
3. Press and hold the measurement button (often the trigger). The device will display the RPM reading on the LCD screen.
4. Release the button to hold the last reading.

Figure 3: Proper aiming of the laser for measurement.

3. คุณสมบัติการแสดงผล

The large, easy-to-read LCD screen displays the current RPM. It also stores the last, minimum, and maximum readings. The device features auto-zero adjustment for consistent measurements.

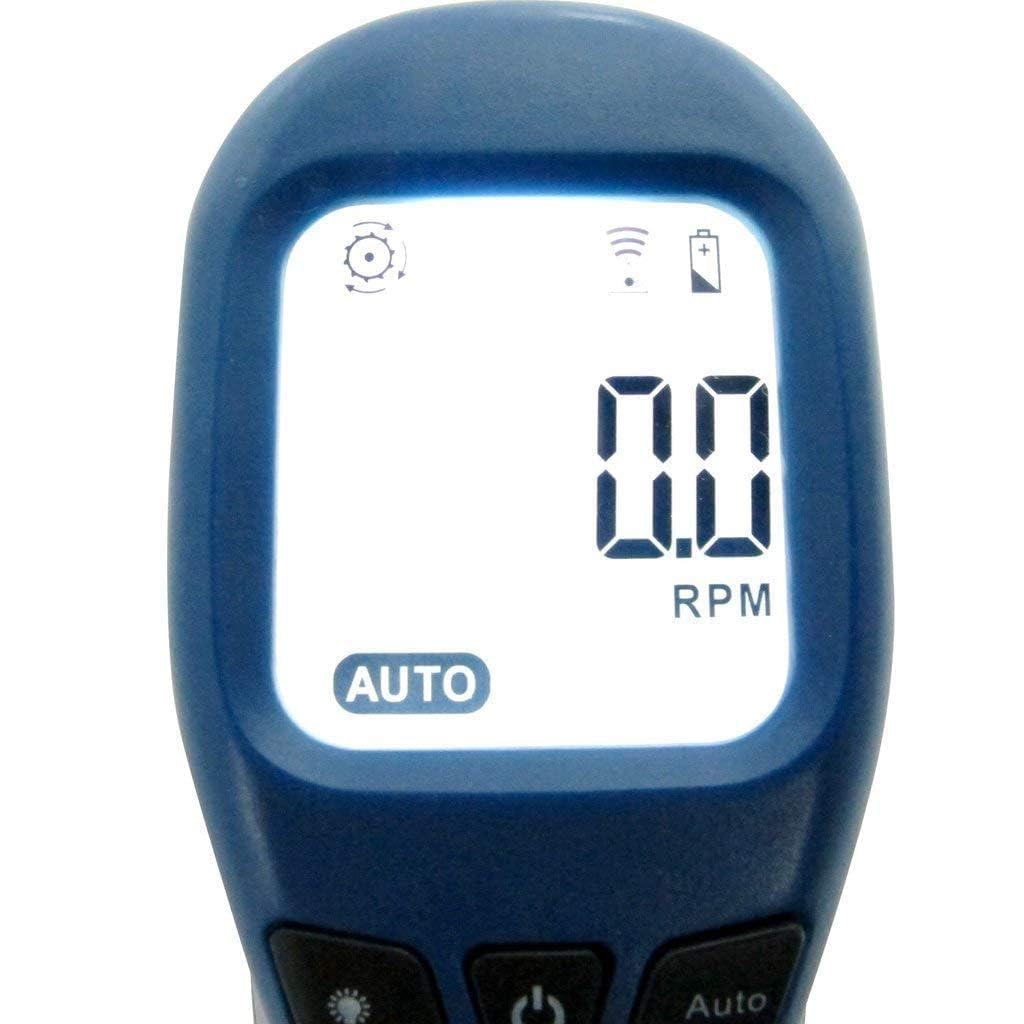

รูปที่ 4: รายละเอียด view of the tachometer's LCD display.

4. วิดีโอการสอน

For a visual guide on operating the tachometer, please watch the official instructional video below:

Video 1: Digital Laser Tachometer Instructions for Use. This video demonstrates the application of reflective tape and the process of taking RPM measurements using the device.

การซ่อมบำรุง

1. การทำความสะอาด

Wipe the device with a soft, dry cloth. Do not use abrasive cleaners or solvents. Keep the laser lens clean and free of dust or debris for accurate readings.

2. การจัดเก็บ

Store the tachometer in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, remove the battery to prevent leakage.

3. การเปลี่ยนแบตเตอรี่

When the low battery indicator appears on the display, replace the 9V battery promptly to ensure continued accurate operation.

การแก้ไขปัญหา

ข้อมูลจำเพาะ

• แบบอย่าง: ทีเอช458
• ช่วงการวัด: 2.5-99999 RPM (requires reflective strip)
• ปณิธาน: 0.1 RPM (at 2.5~999.9 RPM); 1 RPM (at 1000~99,999 RPM)
• ความแม่นยำ: +/- 0.02 percent
• วัดระยะทาง: 2-20 นิ้ว (50-500 มม.)
• Sampหลิงเวลา: 0.5 วินาที
• แสดง: Large LCD with auto-zero adjustment, stores last, minimum, and maximum readings
• วัสดุ: พลาสติก ABS
• ขนาดสินค้า : 0.39 x 0.39 x 0.39 นิ้ว
• น้ำหนักสินค้า: 4.94 ออนซ์
• ผู้ผลิต: ทซินเด

การรับประกันและการสนับสนุน

Specific warranty information for the Thsinde Handheld Digital Laser Tachometer (Model TH458) is not provided in this manual. For details regarding warranty coverage, technical support, or service, please contact the manufacturer, Thsinde, directly or refer to the product packaging and purchase documentation.
