Amerimax M0506-6 White Vinyl Gutter Drop Outlet Instruction Manual

1. บทนำ

This manual provides essential information for the proper installation, function, and care of your Amerimax M0506-6 White Vinyl Gutter Drop Outlet. This component is designed to efficiently funnel rainwater from your gutter system into the downspout, ensuring effective water drainage from your roof.

2. สินค้าหมดview

The Amerimax M0506-6 is a traditional K-Style white vinyl drop outlet. It is engineered for durability and ease of use, featuring a design that accommodates natural expansion and contraction due to temperature changes. Its robust vinyl construction makes it crush- and dent-proof, suitable for various weather conditions.

• วัสดุ: ไวนิลทนทาน
• Gutter Compatibility: 5-inch K-Style Gutters
• Downspout Compatibility: 2-inch x 3-inch Downspouts
• สี: สีขาว
• คุณสมบัติ: Crush- and dent-proof, maintenance-free design, accommodates natural expansion and contraction.

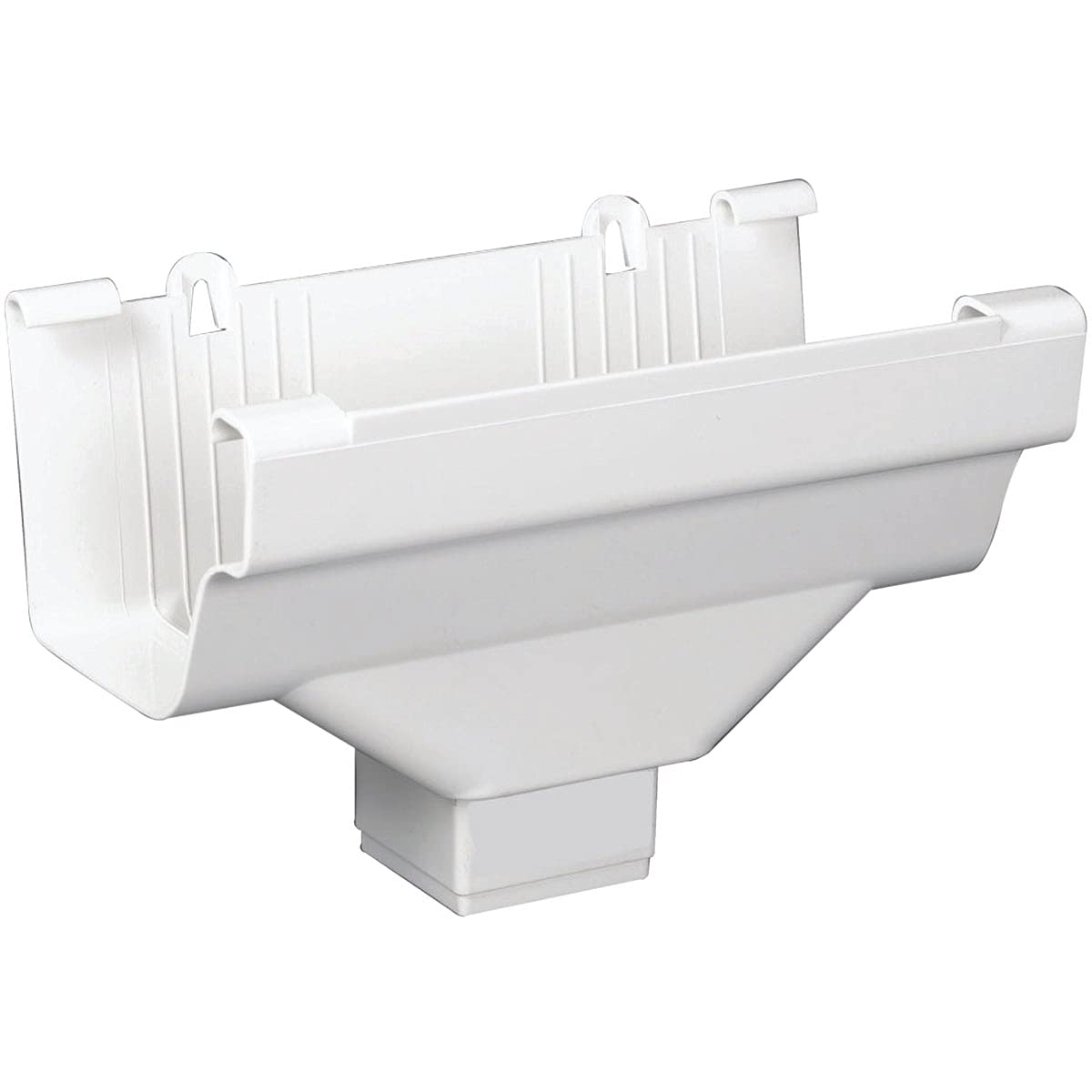

Image 1: Amerimax White Vinyl Gutter Drop Outlet. This image shows the white vinyl component designed to connect a gutter to a downspout.

3. ข้อมูลด้านความปลอดภัย

Always prioritize safety during installation. Read all instructions before beginning. If you are unsure about any step, consult a professional.

• สวมใส่อุปกรณ์ป้องกันส่วนบุคคล (PPE) ที่เหมาะสม รวมถึงแว่นตาและถุงมือเพื่อความปลอดภัย
• Use a stable ladder and ensure it is properly secured before climbing.
• Be aware of your surroundings, especially when working at heights or with tools.
• เก็บเด็กและสัตว์เลี้ยงให้ห่างจากพื้นที่ทำงาน
• Do not install during adverse weather conditions such as strong winds or rain.

4. การตั้งค่าและการติดตั้ง

The Amerimax Gutter Drop Outlet is designed for direct fastening to the wall, connecting a 5-inch K-Style gutter to a 2-inch x 3-inch downspout.

1. การตระเตรียม: Ensure the gutter section where the drop outlet will be installed is clean and free of debris. Mark the precise location for the downspout connection on the gutter.
2. Cutting the Gutter Opening: Using appropriate cutting tools (e.g., tin snips), carefully cut an opening in the bottom of the gutter at the marked location. The opening should be slightly smaller than the top flange of the drop outlet to ensure a secure fit.
3. Positioning the Drop Outlet: Insert the top flange of the drop outlet into the cut opening from the underside of the gutter. Ensure it sits flush with the gutter bottom.
4. Securing the Drop Outlet: Fasten the drop outlet to the gutter using appropriate fasteners (e.g., rivets or screws, not included) through the pre-drilled holes or designated fastening points on the outlet's flange. Apply a bead of gutter sealant around the perimeter of the connection for a watertight seal.
5. Connecting the Downspout: Slide the top end of the 2-inch x 3-inch downspout section over the bottom opening of the drop outlet. Secure the downspout to the drop outlet and the wall using appropriate fasteners and downspout straps (not included).
6. การตรวจสอบขั้นสุดท้าย: Verify that all connections are secure and watertight. Pour a small amount of water into the gutter to confirm proper drainage through the drop outlet and downspout.

5. หลักการทำงาน

Once installed, the Amerimax Gutter Drop Outlet functions passively as a critical component of your rainwater management system. It collects water flowing along the 5-inch K-Style gutter and directs it vertically into the connected 2-inch x 3-inch downspout, preventing water from overflowing the gutter and protecting your home's foundation and landscaping.

6. การบำรุงรักษา

The Amerimax Vinyl Gutter Drop Outlet is designed for low maintenance. However, periodic inspection and cleaning are recommended to ensure optimal performance.

• การตรวจสอบตามฤดูกาล: At least twice a year, typically in spring and fall, inspect the drop outlet and surrounding gutter sections for any debris accumulation (leaves, twigs, dirt).
• การทำความสะอาด: Carefully remove any blockages from the drop outlet and the top of the downspout to ensure unrestricted water flow. A garden hose can be used to flush out minor debris.
• ตรวจสอบการเชื่อมต่อ: Periodically check the fasteners and sealant around the drop outlet for any signs of loosening or degradation. Re-secure or re-seal as necessary to prevent leaks.
• การประเมินความเสียหาย: Although crush- and dent-proof, inspect for any signs of physical damage or cracks, especially after severe weather. Replace damaged components promptly.

7 การแก้ไขปัญหา

If you encounter issues with your gutter drop outlet, consider the following common problems and solutions:

• Water Overflowing Gutter:
  • สาเหตุ: Blockage in the drop outlet or downspout.
  • สารละลาย: Clear any debris (leaves, twigs) from the drop outlet and downspout. Ensure the downspout is not clogged further down.
• Leaks Around Drop Outlet:
  • สาเหตุ: Inadequate sealant or loose fasteners.
  • สารละลาย: Reapply gutter sealant around the connection points. Tighten or replace any loose fasteners.
• Water Not Draining Properly:
  • สาเหตุ: Gutter slope is incorrect, or the drop outlet is not positioned at the lowest point.
  • สารละลาย: Verify the gutter has a slight slope towards the drop outlet (approximately 1/16 inch per foot). Adjust gutter hangers if necessary.

8. ข้อมูลจำเพาะ

9. การรับประกันและการสนับสนุน

For specific warranty information regarding your Amerimax Gutter Drop Outlet, please refer to the documentation provided at the time of purchase or visit the official Amerimax website. For technical support or further assistance, please contact Amerimax customer service.

Note: Warranty terms and conditions may vary. Keep your proof of purchase for warranty claims.
