EBUYFIRE 3 LEDs Bike Lights User Manual

1. สินค้าหมดview

The EBUYFIRE 3 LEDs Bike Lights set provides comprehensive illumination for night riding, featuring a powerful front headlight and a versatile rear taillight. Designed for durability and convenience, this set is USB rechargeable and includes a power bank function for charging other devices. Its robust construction and waterproof rating ensure reliable performance in various conditions.

Figure 1: EBUYFIRE 3 LEDs Bike Lights Set

2. เนื้อหาบรรจุภัณฑ์

Upon opening your EBUYFIRE Bike Lights package, please verify that all the following components are included:

• Bike Headlight (3 LEDs)
• ไฟท้ายจักรยาน
• Handlebar Mount Holders
• USB Charging Cables (typically one for each light)

3. คุณสมบัติของผลิตภัณฑ์

• การส่องสว่างอันทรงพลัง: The bike headlight features 3 LEDs, providing both high beam and floodlights for bright road illumination during night rides. The taillight ensures visibility from the rear.
• โหมดแสงหลายโหมด: The front headlight offers 5 modes (High, Medium, Low, Strobe, SOS), and the rear taillight has 4 modes (High, Low, Fast Flash, Slow Flash) for adaptable lighting.
• USB Rechargeable & Power Bank Function: Both lights are USB rechargeable. The headlight includes a built-in rechargeable battery that can also function as a power bank to charge your phone or bike computer.
• ดีไซน์ทนทานและกันน้ำ: Constructed with a stainless steel clip and an aluminum alloy shell, ensuring sturdiness and durability. The IPX5 waterproof rating allows the lights to withstand adverse weather conditions.
• ติดตั้งง่ายและพกพาสะดวก: Designed for tool-free installation on various bikes. The headlight detaches quickly to serve as a compact emergency flashlight, perfect for cycling, running, hiking, camping, or other night activities.

Figure 2: Key Features of the EBUYFIRE Headlight

Figure 3: Headlight and Taillight Mode Options

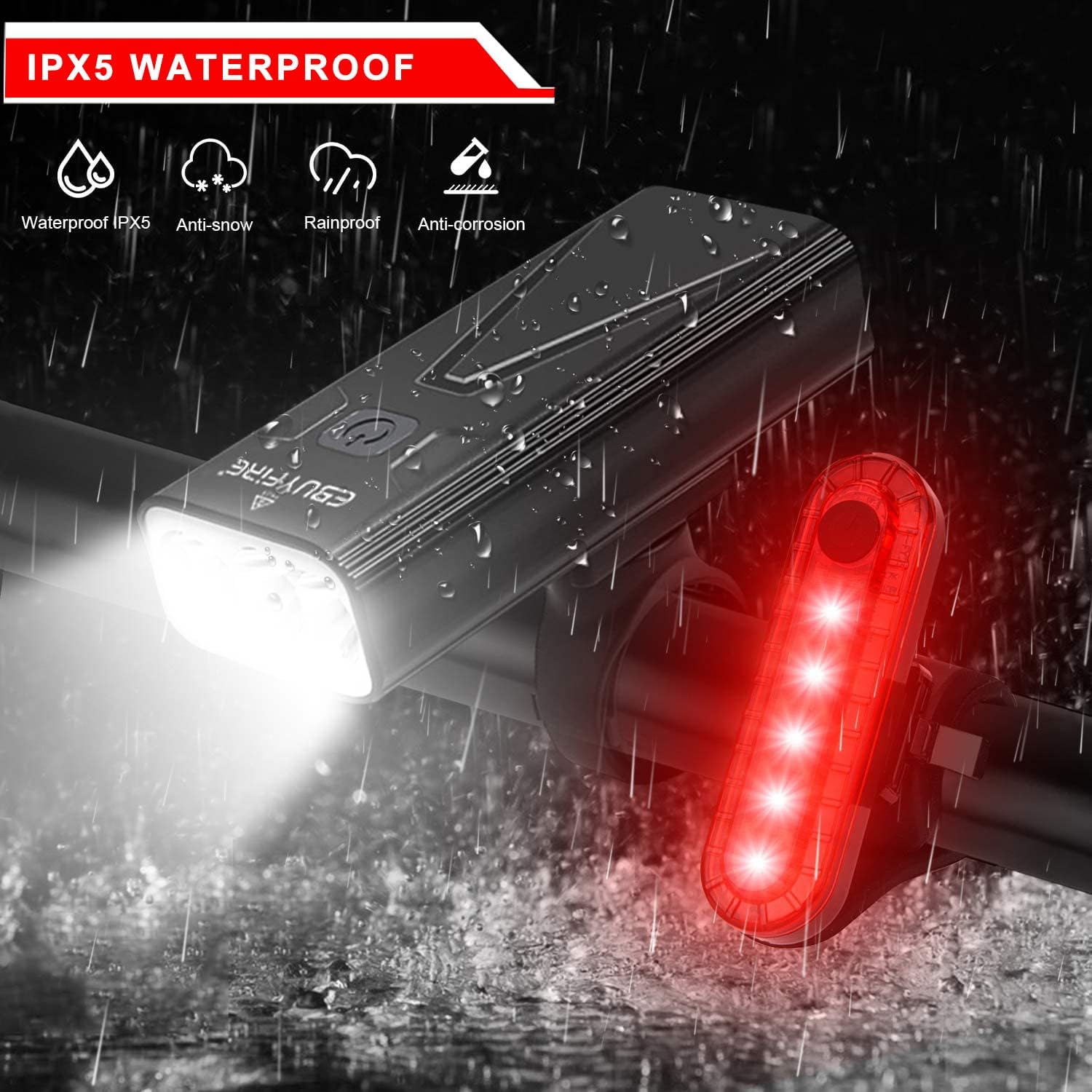

รูปที่ 4: ระดับการกันน้ำ IPX5

Figure 5: Optimized Light Beam for Safety

4. การตั้งค่าและการติดตั้ง

Follow these steps to properly install your EBUYFIRE bike lights:

1. การติดตั้งไฟหน้า:
   • Take out the fixing screws from the handlebar mount.
   • Snap the mount onto your handlebar. Ensure it is securely anchored.
   • Align the headlight with the bracket slot on the mount and slide it in.
   • To remove the light, press the button to unlock and slide it off.
2. Taillight Installation:
   • As indicated by the arrows on the taillight, align the rubber bands on either side of the deck.
   • Fix the rubber ring to live on the other side of the tube (e.g., seat post).

Figure 6: Easy Installation Guide

5. คู่มือการใช้งาน

Familiarize yourself with the operation of your EBUYFIRE bike lights:

5.1 การทำงานของไฟหน้า

• เปิด/ปิดเครื่อง: Press and hold the power button to turn the headlight on or off.
• เปลี่ยนโหมด: Short press the power button to cycle through the 5 available modes: High, Medium, Low, Strobe, and SOS.
• ฟังก์ชั่นธนาคารพลังงาน: The headlight can charge external devices. Connect your device to the USB output port on the light.

5.2 Taillight Operation

• เปิด/ปิดเครื่อง: Press and hold the power button on the taillight to turn it on or off.
• เปลี่ยนโหมด: Short press the power button to cycle through the 4 available modes: High, Low, Fast Flash, and Slow Flash.

6. การบำรุงรักษา

Proper maintenance will extend the lifespan of your bike lights:

• การชาร์จ: Charge the lights regularly using the provided USB cables. Ensure the charging port is dry before connecting. A full charge can take up to 3 hours.
• การทำความสะอาด: เช็ดไฟด้วยผ้าเนื้อนุ่มและเบาamp cloth. Avoid using abrasive cleaners or solvents that could damage the finish or waterproof seals.
• พื้นที่จัดเก็บ: Store the lights in a cool, dry place when not in use. If storing for an extended period, charge them periodically to maintain battery health.
• ความต้านทานน้ำ: While rated IPX5 waterproof, avoid submerging the lights in water. After exposure to rain, ensure the charging port cover is securely closed.

Figure 7: USB Charging Capability

7 การแก้ไขปัญหา

If you encounter issues with your EBUYFIRE bike lights, refer to the following common problems and solutions:

8. ข้อมูลจำเพาะ

Detailed technical specifications for the EBUYFIRE Bike Lights:

9. การรับประกันและการสนับสนุน

EBUYFIRE provides a one-year warranty for your bike lights, ensuring customer satisfaction. If you encounter any issues or have questions regarding your product, please do not hesitate to contact our customer support. We are committed to prioritizing your satisfaction and will assist you promptly.

For support, please refer to the contact information provided with your purchase or visit the official EBUYFIRE store on Amazon: EBUYFIRE Store.
