การแนะนำ
Thank you for choosing the Respekta Levin Mini Kitchen. This compact kitchen unit is designed to provide essential cooking and storage facilities in small spaces such as offices, student apartments, or single-room dwellings. This manual provides important information regarding the safe assembly, operation, and maintenance of your new mini kitchen. Please read these instructions carefully before installation and use, and keep them for future reference.
คำเตือนด้านความปลอดภัยที่สำคัญ
คำเตือน: Failure to follow these safety instructions could result in fire, electric shock, or personal injury.
- โปรดอ่านคำแนะนำในการประกอบอย่างละเอียดก่อนเริ่มการติดตั้ง
- Always use appropriate protective equipment (e.g., gloves, safety glasses) during assembly to prevent injuries.
- Ensure the mini kitchen is installed in a secure and stable area to minimize the risk of tipping or overturning.
- Use the pantry only for its intended purpose.
- Keep flammable objects away from the hob and sink area to reduce the risk of burns or damage.
- Ensure proper electrical connections are made by a qualified professional if required.
- อย่าให้เต้ารับไฟฟ้าเกินกำลัง
- เก็บเด็กและสัตว์เลี้ยงให้ห่างจากเครื่องระหว่างการใช้งาน
การติดตั้งและการประกอบ
The Respekta Levin Mini Kitchen requires assembly. Detailed assembly instructions and all necessary fastening materials are included with your purchase.
การแกะกล่อง
- Carefully unpack all components and check against the parts list provided in the assembly manual.
- Report any missing or damaged parts immediately to your retailer.
- เก็บวัสดุบรรจุภัณฑ์ให้ห่างจากมือเด็ก
การจัดวาง
- Choose a level, stable surface for installation.
- Ensure adequate ventilation around the refrigerator unit.
- The mini kitchen can be assembled with the sink and hob unit on either the left or right side, depending on your preference and space requirements.
- Maintain a safe distance from walls and other furniture to allow for proper air circulation and access.
ขั้นตอนการประกอบ
Follow the step-by-step instructions provided in the separate assembly manual. Ensure all screws and fasteners are tightened securely. Do not overtighten.

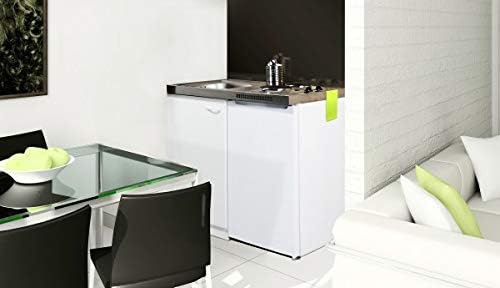

Image 1: The Respekta Levin Mini Kitchen, fully assembled, featuring a compact design with a sink, hob, and refrigerator unit.
คำแนะนำการใช้งาน
Refrigerator with Freezer Compartment
- การใช้งานเบื้องต้น: After installation, allow the refrigerator to stand upright for at least 4 hours before plugging it in. This allows the refrigerant to settle.
- การควบคุมอุณหภูมิ: The refrigerator features an adjustable thermostat. Turn the dial to your desired setting. A higher number typically indicates a colder temperature.
- ช่องแช่แข็ง: The integrated freezer compartment is suitable for short-term storage of frozen foods. Do not store carbonated beverages in the freezer.
- ประสิทธิภาพการใช้พลังงาน: This refrigerator has an energy efficiency class F. To optimize energy consumption, avoid frequent door openings and ensure the door seal is clean and intact.
เตาสแตนเลส
ภาพที่ 2: รายละเอียด view of the integrated stainless steel hob with two cooking plates and the adjacent sink unit.
- เปิดเครื่อง: The hob features two cooking plates of different sizes. Each plate has a dedicated control knob.
- การตั้งค่าความร้อน: Turn the control knob clockwise to select one of the six available heat levels. Start with a lower setting and increase as needed.
- ความปลอดภัย: Always use cookware appropriate for electric hobs. Do not leave cooking unattended. After use, ensure the control knobs are turned to the "off" position. The hob surface will remain hot for some time after use.
หน่วยอ่างล้างจาน
- การใช้งาน: The stainless steel sink includes a drainer area, providing ample space for washing dishes.
- Sieve Basket Valve: The sink is equipped with a 90mm sieve basket valve to prevent food particles from entering the drain. Regularly clean the sieve basket.
- การต่อน้ำ: Ensure the sink is properly connected to a water supply and drainage system by a qualified plumber.
การดูแลรักษา
การทำความสะอาดทั่วไป
- ถอดปลั๊กเครื่องออกจากแหล่งจ่ายไฟก่อนทำความสะอาดทุกครั้ง
- เช็ดพื้นผิวทั้งหมดด้วยโฆษณาamp ผ้า สำหรับคราบฝังแน่น ให้ใช้ผงซักฟอกชนิดอ่อน
- Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage surfaces.
- ตรวจสอบให้แน่ใจว่าพื้นผิวทุกส่วนแห้งสนิทหลังจากทำความสะอาดแล้ว
การบำรุงรักษาตู้เย็น
- ละลายน้ำแข็ง: Defrost the freezer compartment regularly to maintain efficiency. Turn off the refrigerator and remove all food items before defrosting.
- ซีลประตู: Periodically check and clean the door seals to ensure a tight closure and prevent energy loss.
Hob and Sink Maintenance
- Clean the hob surface after each use once it has cooled down.
- For stainless steel surfaces, use a specialized stainless steel cleaner to maintain its luster and prevent streaks.
- Regularly clean the sink and the sieve basket valve to prevent blockages and maintain hygiene.
คู่มือการแก้ไขปัญหา
ก่อนติดต่อฝ่ายบริการลูกค้า โปรดดูปัญหาทั่วไปและวิธีแก้ไขต่อไปนี้:
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| ตู้เย็นไม่เย็น | พลังแห่งโอtage; Plug not inserted; Thermostat set too high; Door not closed properly. | Check power supply; Ensure plug is fully inserted; Adjust thermostat to a colder setting; Close door firmly and check seal. |
| เตาไม่ร้อน | No power; Control knob not set correctly; Overheating protection activated. | Check power supply; Ensure knob is turned to a heat setting; Allow hob to cool down, then try again. |
| Water not draining from sink | Sieve basket clogged; Drain pipe blockage. | Clean the sieve basket; Check and clear any blockages in the drain pipe. |
| Unusual noises from refrigerator | Appliance not level; Objects touching the back; Normal operating sounds. | Ensure the appliance is level; Move objects away from the back; Some gurgling or humming sounds are normal. |
หากปัญหายังคงมีอยู่หลังจากพยายามแก้ไขปัญหาเหล่านี้แล้ว โปรดติดต่อฝ่ายสนับสนุนลูกค้า
ข้อมูลจำเพาะทางเทคนิค
| ยี่ห้อ | เรสเพกตา |
| แบบอย่าง | PANTRY100SV (Levin) |
| พิมพ์ | Mini Kitchen / Pantry Unit |
| ขนาดโดยรวม (กว้าง x ลึก x สูง) | 100 cm x 60 cm x 87 cm (Worktop height) |
| Product Dimensions (D x B x H) | 60D x 100B x 200H centimeters (This might refer to a full cabinet set, please verify with product packaging if different from worktop height) |
| วัสดุ | Engineered Wood (Cabinet), Stainless Steel (Hob, Sink, Handles) |
| สี | สีขาว |
| ตู้เย็น |
|
| เตา |
|
| จม |
|
| น้ำหนักสินค้า | 24 กิโลกรัม |
| จำเป็นต้องประกอบ | Yes (Fastening materials included) |
| ประเภทการติดตั้ง | Freestanding, Floor Mounting |
ข้อมูลการรับประกัน
The Respekta Levin Mini Kitchen comes with a การรับประกันจากผู้ผลิต 2 ปี. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper installation, misuse, neglect, or unauthorized repairs. For detailed warranty terms and conditions, please refer to the documentation provided with your product or contact Respekta customer service.
การสนับสนุนลูกค้า
If you have any questions, require assistance with assembly, or encounter issues not covered in the troubleshooting guide, please contact Respekta customer support.
- Webเว็บไซต์: Visit the official Respekta webเว็บไซต์นี้มีส่วนคำถามที่พบบ่อยและข้อมูลการติดต่อ
- อีเมล: Refer to your product packaging or the Respekta webเว็บไซต์สำหรับที่อยู่อีเมลฝ่ายบริการลูกค้า
- โทรศัพท์: Contact numbers can be found on the Respekta webไซต์หรือในเอกสารผลิตภัณฑ์ของคุณ
When contacting support, please have your model number (PANTRY100SV) and proof of purchase ready.
