การแนะนำ
Thank you for choosing the vidaXL Wall-Mounted Garden Parasol. This elegant parasol is designed to provide optimal shade and protection from harmful UV rays, enhancing your outdoor living space. This manual contains important information regarding the assembly, operation, maintenance, and safety of your new parasol. Please read it thoroughly before installation and retain it for future reference.
ข้อมูลด้านความปลอดภัย
- Always ensure the parasol is securely mounted to a sturdy wall structure.
- Do not use the parasol in strong winds or severe weather conditions. High winds can cause damage to the parasol and potentially lead to injury.
- Close the parasol when not in use or during adverse weather.
- โปรดกันเด็กและสัตว์เลี้ยงให้อยู่ห่างจากร่มกันแดดในระหว่างการเปิดและปิดร่ม
- ตรวจสอบการสึกหรอของส่วนประกอบทั้งหมดเป็นประจำ เปลี่ยนชิ้นส่วนที่เสียหายทันที
- อ้างถึง ข้อมูลด้านความปลอดภัย (ไฟล์ PDF) สำหรับแนวทางเพิ่มเติม
เนื้อหาแพ็คเกจ
โปรดตรวจสอบให้แน่ใจว่าชิ้นส่วนทั้งหมดครบถ้วนและไม่เสียหายก่อนเริ่มประกอบ หากมีชิ้นส่วนใดขาดหายหรือเสียหาย โปรดติดต่อฝ่ายบริการลูกค้า
- Parasol canopy (Anthracite, Polyester)
- Metal pole and frame assembly
- 8 durable ribs
- กลไกข้อเหวี่ยง
- Wall mounting accessories (screws, anchors, brackets)
การติดตั้งและการประกอบ
The vidaXL Wall-Mounted Garden Parasol is designed for easy assembly. Follow these steps carefully:
- เลือกตำแหน่งที่เหมาะสม: Select a sturdy wall capable of supporting the weight of the parasol. Consider the desired shade area and sun direction throughout the day. The height of the parasol will depend on your chosen mounting height on the wall.
- ทำเครื่องหมายจุดเจาะ: Position the wall mounting brackets at the desired height and mark the drilling points accurately. Ensure the brackets are level.
- เจาะรู: Use an appropriate drill bit for your wall type and drill holes at the marked points. Insert wall anchors if necessary.
- Attach mounting brackets: ยึดขายึดเข้ากับผนังให้แน่นโดยใช้สกรูที่ให้มา
- Assemble the pole: Connect the sections of the metal pole if they are separate.
- Attach the parasol frame: Mount the parasol frame, including the pole and ribs, onto the secured wall brackets. Ensure it is firmly attached and stable.
- Install the canopy: Carefully attach the anthracite polyester canopy to the parasol frame and ribs.

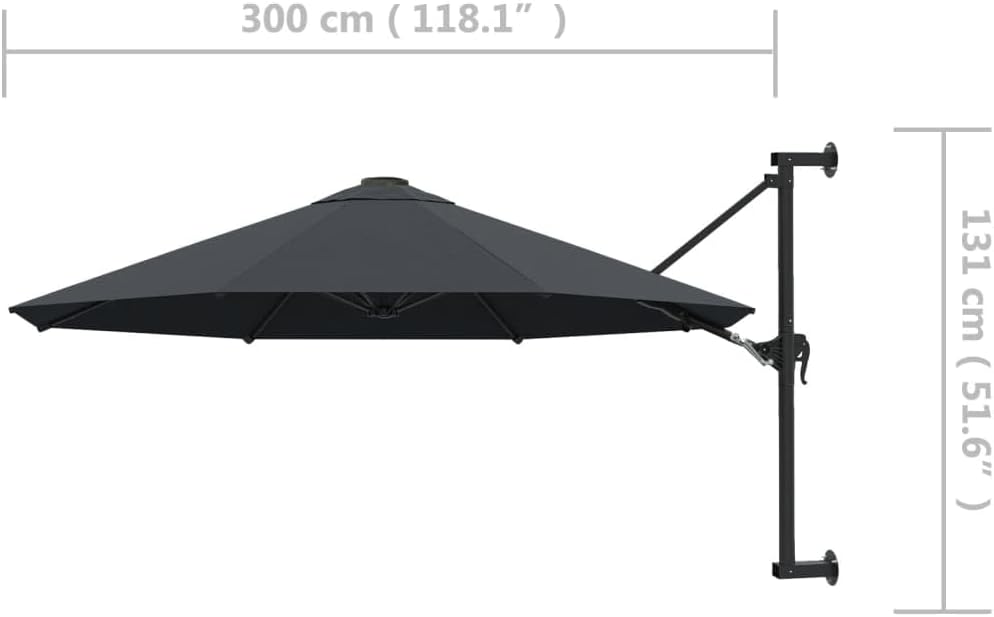

Image: Overall dimensions of the parasol when open, showing a 300 cm diameter and 131 cm height from the wall mount.
ภาพ: ด้านข้าง view of the parasol with a human figure for scale, demonstrating its wall-mounted design and approximate height.
คำแนะนำการใช้งาน
Your vidaXL parasol features a convenient crank mechanism for easy opening and closing, and a rotary tilt function for optimal sun blocking.
- Opening the Parasol: Locate the crank handle on the pole. Turn the crank clockwise to extend the parasol canopy until it is fully open. Do not force the crank if it resists.
- Closing the Parasol: Turn the crank handle counter-clockwise to retract the parasol canopy. Once fully closed, secure it with any integrated straps or ties to prevent it from unfurlล่องลอยไปตามสายลม
- Tilting the Parasol: The parasol can be tilted to adjust the shade angle. Use the rotary tilt mechanism (often a lever or button near the crank) to adjust the canopy's angle to block the sun as it moves across the sky.
Image: Detail of the crank handle and tilt mechanism for operating the parasol.
Image: The parasol canopy tilted to provide shade against a lower sun angle.
Image: The parasol in its closed, vertical position, secured against the wall.
การซ่อมบำรุง
Proper maintenance will extend the life and appearance of your parasol.
- การทำความสะอาดหลังคา: The polyester canopy is fade-resistant and easy to clean. Use a mild soap solution and a soft brush or cloth to clean the fabric. Rinse thoroughly with clean water and allow it to air dry completely before closing or storing.
- การกันน้ำ: If the parasol is exposed to heavy rain, it is recommended to treat the canopy fabric with a waterproofing spray to maintain its water-repellent properties.
- การดูแลเฟรม: Wipe the metal pole and frame with a damp cloth to remove dirt and dust. Ensure all moving parts of the crank and tilt mechanisms are free of debris.
- พื้นที่จัดเก็บ: When not in use for extended periods, especially during winter or severe weather, it is advisable to remove the canopy and store it in a dry, protected area.
การแก้ไขปัญหา
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| ร่มกันแดดเปิด/ปิดยาก | กลไกติดขัดหรือฝืด | Check for debris in the crank mechanism. Apply a silicone-based lubricant to moving parts if necessary. Do not force. |
| Parasol wobbles after installation | Mounting brackets not securely fastened or wall not sturdy enough. | Re-check all mounting screws and anchors. Ensure the wall structure is appropriate for the parasol's weight and leverage. |
| Canopy not providing adequate shade | Incorrect tilt angle or sun position. | Adjust the parasol's tilt using the rotary mechanism to optimize shade coverage. |
ข้อมูลจำเพาะ
| คุณสมบัติ | รายละเอียด |
|---|---|
| หมายเลขรุ่น | 44865 |
| ยี่ห้อ | วิดาเอ็กซ์แอล |
| สี | แอนทราไซต์ |
| วัสดุสำหรับทำหลังคาคลุม | Polyester (Anti-UV, Fade-resistant) |
| วัสดุกรอบ | โลหะ |
| Overall Dimensions (Diameter x Height) | 300 cm x 131.1 cm (approx. 118.1 inches x 51.6 inches) |
| เส้นผ่านศูนย์กลางเสา | 4.8 ซม. (ประมาณ 1.9 นิ้ว) |
| น้ำหนัก | 8.65 กก. (ประมาณ 19.07 ปอนด์) |
| กลไกการเปิด | Crank lift |
| กลไกการเอียง | Rotary tilt |
| คุณสมบัติพิเศษ | UV blocking, 8 ribs included |
| วัตถุประสงค์การใช้ | Outdoor sun protection |
ภาพ: ด้านหน้า view of the parasol fully open, highlighting its round canopy and sturdy construction.
ภาพ: ด้านล่าง view of the parasol, detailing the eight robust ribs supporting the canopy.
การรับประกันและการสนับสนุน
For warranty information, product support, or to purchase replacement parts, please contact vidaXL customer service or visit the official vidaXL brand store.
vidaXL Brand Store: Visit vidaXL Store on Amazon
