1. บทนำ
This manual provides essential information for the proper installation, operation, and maintenance of the NEW 1/2" Barbed Brass Hose Tee 3 Way Fitting, Model 1790808C. Please read these instructions thoroughly before use to ensure safe and efficient performance.
2. สินค้าหมดview
The NEW 1/2" Barbed Brass Hose Tee is a durable 3-way fitting designed for connecting three hoses of 1/2 inch inner diameter. Constructed from brass, it offers corrosion resistance and reliability in various applications.

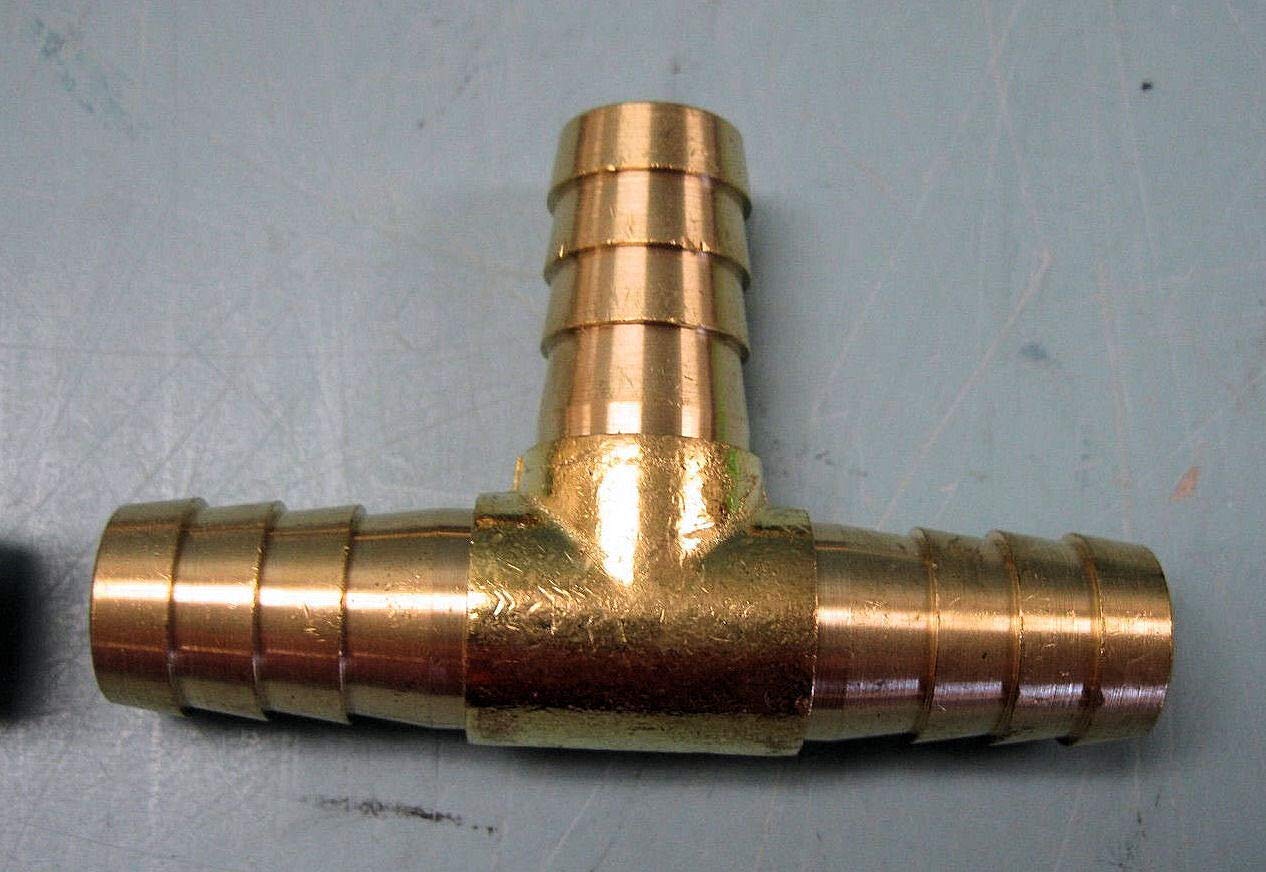

Figure 2.1: The 1/2" Barbed Brass Hose Tee 3 Way Fitting. This image displays the brass fitting with three barbed ends, designed for secure hose connections.
3. ข้อมูลจำเพาะ
| คุณสมบัติ | รายละเอียด |
|---|---|
| ประเภทสินค้า | Hose Tee Fitting |
| หมายเลขรุ่น | 1790808 องศาเซลเซียส |
| ขนาด | 1/2 inch (for hose inner diameter) |
| วัสดุ | ทองเหลือง |
| การกำหนดค่า | 3 Way Barbed Tee |
| ผู้ผลิต | ดิ๊กสัน |
4. การตั้งค่าและการติดตั้ง
Follow these steps for proper installation of the barbed hose tee fitting:
- Prepare Hoses: Ensure the ends of the 1/2 inch hoses are cut cleanly and are free from debris.
- หล่อลื่น (ไม่จำเป็น): For easier insertion, a small amount of water or a compatible lubricant can be applied to the barbed ends of the fitting or the inside of the hose.
- ติดท่อ: Firmly push each hose end onto a barbed port of the tee fitting until it is fully seated past all barbs.
- การเชื่อมต่อที่ปลอดภัย: For applications involving pressure or critical sealing, secure each hose connection with a suitable hose clamp (not included) placed over the hose and behind the last barb.
- ตรวจสอบ: Visually inspect all connections to ensure they are secure and properly seated.
คำเตือน: Do not overtighten hose clamps, as this can damage the hose or fitting. Ensure the hose material is compatible with the intended fluid and pressure.
5. คู่มือการใช้งาน
Once installed, the 1/2" Barbed Brass Hose Tee operates passively as a junction for fluid or air flow. No specific operational steps are required for the fitting itself beyond ensuring proper installation.
- ทิศทางการไหล: The tee allows fluid or air to split from one inlet into two outlets, or combine from two inlets into one outlet.
- ขีด จำกัด ความดัน: Adhere to the pressure ratings of the hoses and other components in your system. The brass fitting is designed for standard hose applications.
- ขีดจำกัดอุณหภูมิ: Ensure the operating temperature is within the limits of the brass material and connected hoses.
6. การบำรุงรักษา
The NEW 1/2" Barbed Brass Hose Tee requires minimal maintenance. Regular inspection is recommended to ensure continued performance.
- การตรวจสอบเป็นระยะ: Regularly check the fitting and hose connections for signs of wear, corrosion, leaks, or damage.
- การทำความสะอาด: If necessary, clean the exterior of the fitting with a mild soap and water solution. Avoid harsh chemicals that may damage the brass.
- การทดแทน: If any damage or significant wear is observed, replace the fitting immediately to prevent system failure.
7 การแก้ไขปัญหา
| ปัญหา | สาเหตุที่เป็นไปได้ | สารละลาย |
|---|---|---|
| การรั่วไหลที่จุดเชื่อมต่อ | Hose not fully seated; missing or loose hose clamp; damaged hose or fitting. | Ensure hose is fully pushed onto barbs. Install or tighten hose clamp. Inspect hose and fitting for damage and replace if necessary. |
| Difficulty attaching hose | Hose inner diameter too small; lack of lubrication. | Verify hose is 1/2 inch ID. Apply water or compatible lubricant to barbs. Warm the hose end slightly to increase flexibility. |
| ลดการไหล | Obstruction in hose or fitting; kinked hose. | Inspect hoses and fitting for blockages. Straighten any kinks in the hoses. |
8. การรับประกันและการสนับสนุน
This product is manufactured by Dixon. For specific warranty information or technical support, please refer to the manufacturer's official documentation or contact Dixon directly. General product inquiries can be directed to the seller, Debro USA, via the platform where the product was purchased.
- ผู้ผลิต: ดิ๊กสัน
- ผู้ขาย: Debro USA (ข้อมูลผู้ขาย)
