EEEkit OBD1 to OBD2 Adapter (22 Pin to 16 Pin) User Manual for Toyota Vehicles

1. บทนำ

This manual provides instructions for the EEEkit OBD1 to OBD2 Adapter cable, designed to connect vehicles with a Toyota 22-pin diagnostic port to standard 16-pin OBD2 diagnostic scanners. This adapter facilitates communication between older Toyota vehicles and modern diagnostic tools, enabling vehicle fault diagnosis.

Image 1: EEEkit OBD1 to OBD2 Adapter cable, showing the 22-pin male connector and 16-pin female connector.

2. คุณสมบัติของผลิตภัณฑ์

• ความเข้ากันได้: Specifically designed for Toyota vehicles equipped with a 22-pin diagnostic socket, allowing connection to standard 16-pin OBD2 diagnostic tools.
• ความสะดวกในการใช้งาน: Features a plug-and-play design for straightforward connection, converting the Toyota 22-pin interface to a standard OBD2 16-pin interface.
• การส่งผ่านที่เสถียร: Engineered for stable data transmission and effective anti-jamming, ensuring reliable communication with scanning software.
• โครงสร้างทนทาน: Manufactured with high-quality metal and PVC materials for long-lasting performance and durability.
• การปฏิบัติตามมาตรฐาน: Adheres to strict quality control standards and original specifications for consistent and reliable operation.

Image 2: Illustration of the adapter's compatibility with various Toyota vehicle models.

ภาพที่ 3: รายละเอียด view of the adapter highlighting its durable cable and anti-slip connector design.

3. ข้อมูลจำเพาะ

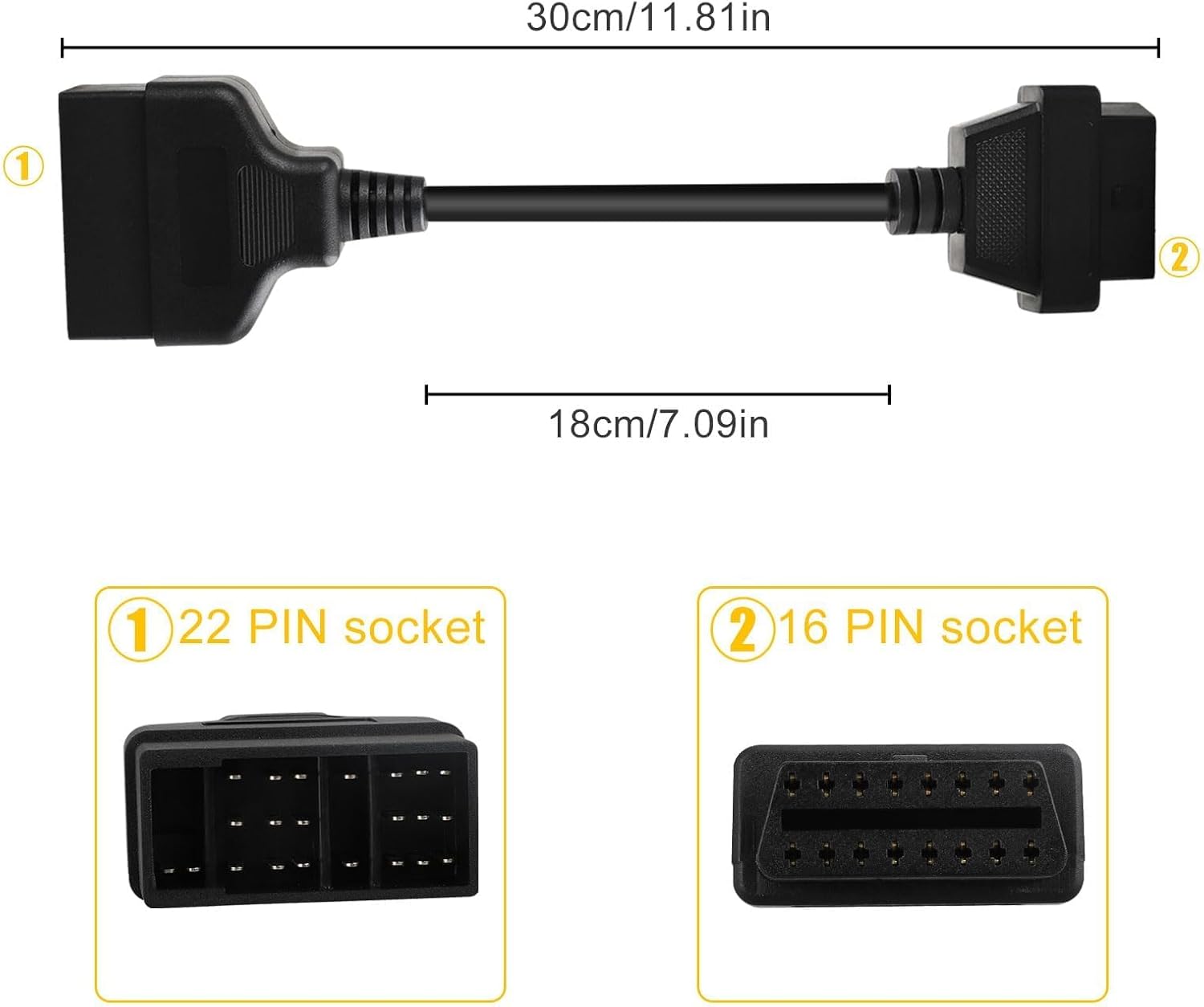

Image 4: Diagram illustrating the adapter's dimensions and connector types.

4. การตั้งค่าและการติดตั้ง

The EEEkit OBD1 to OBD2 Adapter is designed for simple, non-destructive installation. Follow these steps to connect your diagnostic scanner to a compatible Toyota vehicle:

1. Locate the Vehicle's Diagnostic Port: Identify the 22-pin diagnostic port in your Toyota vehicle. This port is typically located under the dashboard, near the steering column, or in the engine bay, depending on the vehicle model and year. Consult your vehicle's service manual if you have difficulty locating it.
2. เชื่อมต่ออะแดปเตอร์เข้ากับตัวรถ: Plug the 22-pin male connector of the EEEkit adapter into the vehicle's 22-pin diagnostic port. Ensure a firm and secure connection.
3. Connect the Diagnostic Scanner: Plug your standard 16-pin OBD2 diagnostic scanner into the 16-pin female connector of the EEEkit adapter.
4. Power On and Initiate Scan: Turn on your diagnostic scanner. The scanner should now be able to establish communication with the vehicle's onboard computer system. Follow the instructions provided with your diagnostic scanner to perform scans, read codes, or access live data.

Image 5: Illustration of connecting the 16-pin end of the adapter to a diagnostic tool, demonstrating the plug-and-play installation.

5. คู่มือการใช้งาน

Once the adapter is securely connected to both your vehicle and the diagnostic scanner, operate your scanner as you normally would for an OBD2-compatible vehicle. The adapter acts as a pass-through, translating the older OBD1 Toyota protocol to the modern OBD2 standard for your scanner.

• การจุดระเบิดของยานพาหนะ: Ensure the vehicle's ignition is in the "ON" position (engine off or running, as required by your specific diagnostic procedure).
• Scanner Functions: Use your diagnostic scanner to perform functions such as:
  • Reading Diagnostic Trouble Codes (DTCs)
  • การล้าง DTC
  • Viewing Live Data Streams
  • Performing Readiness Monitor Tests
• การตีความข้อมูล: Refer to your diagnostic scanner's manual for interpreting codes and data. The adapter ensures the physical and electrical compatibility; the scanner handles the data interpretation.

6. การดูแลรักษา

To ensure the longevity and reliable performance of your EEEkit OBD1 to OBD2 Adapter, follow these maintenance guidelines:

• พื้นที่จัดเก็บ: Store the adapter in a clean, dry place away from direct sunlight and extreme temperatures.
• การทำความสะอาด: หากจำเป็น ให้เช็ดสายเคเบิลและขั้วต่อเบาๆ ด้วยผ้าแห้งเนื้อนุ่ม หลีกเลี่ยงการใช้สารเคมีรุนแรงหรือวัสดุที่มีฤทธิ์กัดกร่อน
• การจัดการ: Always grasp the connectors when plugging or unplugging the cable. Avoid pulling directly on the cable itself to prevent damage to the internal wiring.
• การตรวจสอบ: Periodically inspect the connectors and cable for any signs of wear, damage, or corrosion. Do not use the adapter if any damage is observed.

7 การแก้ไขปัญหา

If you encounter issues while using the EEEkit OBD1 to OBD2 Adapter, consider the following troubleshooting steps:

• No Communication with Scanner:
  • ตรวจสอบการเชื่อมต่อ: Ensure both the 22-pin and 16-pin connectors are fully and securely seated.
  • ความเข้ากันได้ของยานพาหนะ: Verify that your vehicle indeed uses a Toyota 22-pin diagnostic port. This adapter is not universal for all OBD1 vehicles.
  • ฟังก์ชั่นสแกนเนอร์: Test your OBD2 scanner with a known OBD2-compatible vehicle to ensure it is functioning correctly.
  • การจุดระเบิดของยานพาหนะ: Confirm the vehicle's ignition is in the correct position (usually "ON" or "ACC" for diagnostics).
• การเชื่อมต่อไม่ต่อเนื่อง:
  • ตรวจสอบตัวเชื่อมต่อ: Look for bent pins or debris in either the adapter's connectors or the vehicle's diagnostic port.
  • ความสมบูรณ์ของสายเคเบิล: Check the cable for any visible damage, kinks, or cuts.
• Incorrect Readings/Data:
  • การตั้งค่าสแกนเนอร์: Ensure your diagnostic scanner is configured correctly for the vehicle type and year, if applicable.
  • การอัปเดตซอฟต์แวร์: Verify that your diagnostic scanner's software is up to date.

If problems persist after attempting these steps, consult the user manual for your diagnostic scanner or contact EEEkit customer support for further assistance.

8. การรับประกันและการสนับสนุน

For information regarding product warranty, returns, or technical support, please refer to the EEEkit official website or contact their customer service directly. Details are typically available on the product packaging or the seller's online store page.
