Falcon CB846 F 626 SFIC 6-Pin Core Instruction Manual

1. บทนำ

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Falcon CB846 F 626 SFIC 6-Pin Core. Please read this manual thoroughly before installation and retain it for future reference. Proper installation and care will ensure optimal performance and longevity of the product.

2. สินค้าหมดview

The Falcon CB846 F 626 SFIC 6-Pin Core is a Small Format Interchangeable Core designed for use in various locksets and cylinders. This specific model features a 6-pin configuration with an F keyway and is supplied uncombinated, meaning it does not come with pre-cut keys and requires professional keying. The satin chrome finish provides a durable and aesthetic appearance. It is non-handed, allowing for versatile installation.

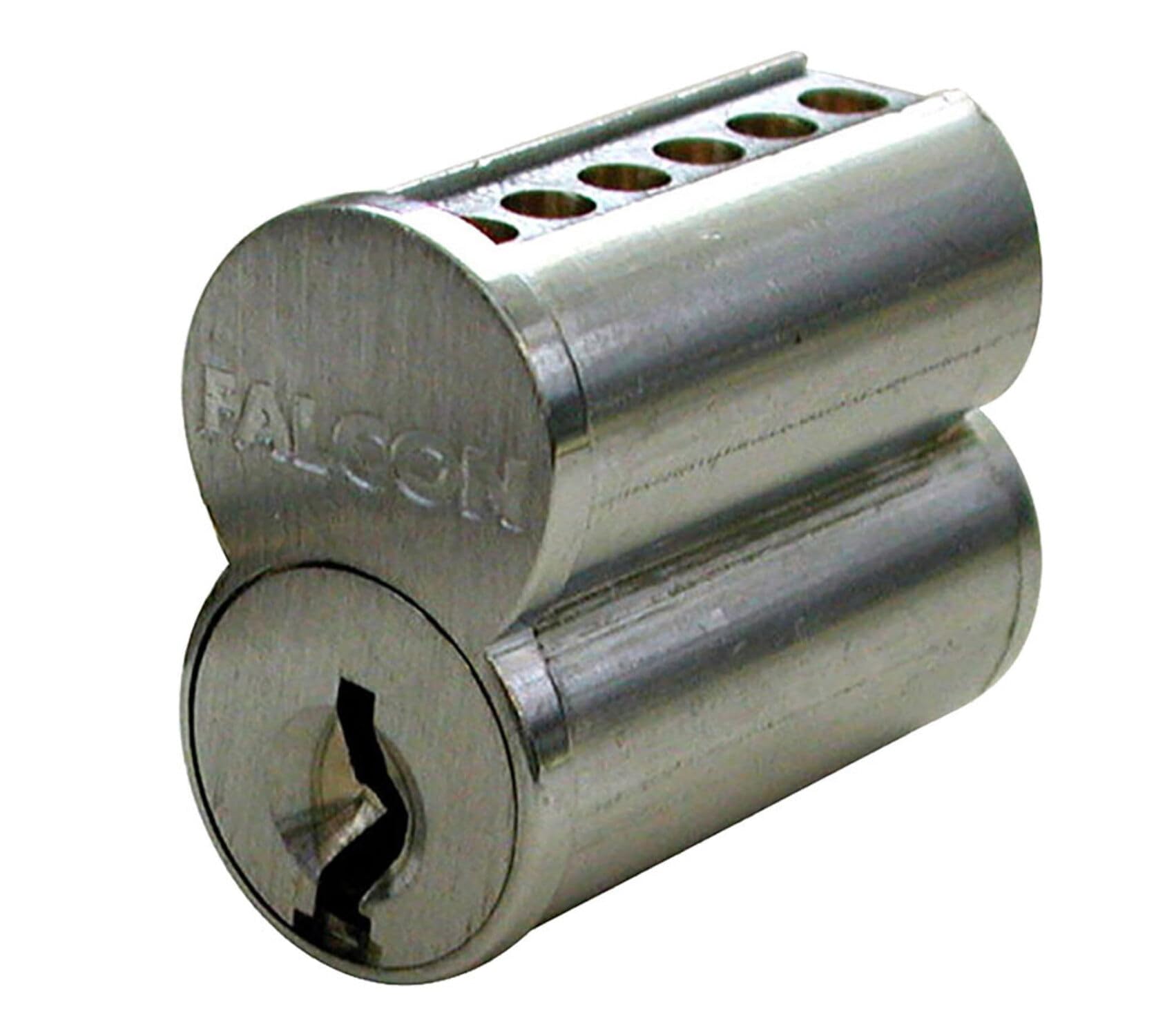

รูปที่ 2.1: Falcon CB846 F 626 SFIC 6-Pin Core. This image displays the cylindrical core with its distinct keyway and satin chrome finish, ready for installation into compatible lock hardware.

3. ข้อมูลด้านความปลอดภัย

Always observe the following safety precautions during installation and handling:

• Wear appropriate personal protective equipment (PPE), such as safety glasses, to prevent injury.
• ตรวจสอบให้แน่ใจว่าพื้นที่ทำงานมีแสงสว่างเพียงพอและไม่มีสิ่งกีดขวาง
• Handle the core carefully to avoid damage to its internal components.
• เก็บชิ้นส่วนขนาดเล็กให้ห่างจากเด็กเพื่อป้องกันอันตรายจากการสำลัก
• If you are unsure about any step of the installation process, consult a qualified locksmith or professional.

4. เนื้อหาบรรจุภัณฑ์

ตรวจสอบว่าส่วนประกอบทั้งหมดมีอยู่ก่อนเริ่มการติดตั้ง:

• 1x Falcon CB846 F 626 SFIC 6-Pin Core (Uncombinated)
• Note: Keys are not included as this core is uncombinated. Keying must be performed by a qualified locksmith.

5. การตั้งค่าและการติดตั้ง

This SFIC core is designed for quick and easy installation into compatible hardware. Professional keying is required before the core can be used.

5.1 Keying the Core (Professional Service Required)

As an uncombinated core, the Falcon CB846 F 626 SFIC 6-Pin Core requires keying by a qualified locksmith. The locksmith will:

1. Disassemble the core to access the pin chambers.
2. Install the appropriate pins according to the desired keying system (e.g., master keying, construction keying).
3. Reassemble and test the core with the newly cut keys.

5.2 Installing the Core into Hardware

Once the core has been properly keyed, follow these steps to install it into compatible lock hardware (e.g., knob, lever, deadbolt):

1. Prepare the Hardware: Ensure the lockset or cylinder housing is clean and free of debris.
2. Insert Control Key: Insert the control key (provided by your locksmith after keying) into the SFIC core.
3. Rotate Control Key: Rotate the control key approximately 15-20 degrees clockwise or counter-clockwise (depending on the specific core design) to align the control lugs.
4. Insert Core: Carefully slide the core into the cylinder housing. It should slide in smoothly. Do not force it.
5. Remove Control Key: Once the core is fully seated, return the control key to the neutral position and remove it. The core is now secured in the housing.
6. การดำเนินการทดสอบ: Insert an operating key (also provided by your locksmith) and test the lock's function to ensure smooth operation.

สำคัญ: The control key is essential for removing and installing SFIC cores. Keep it in a secure location.

6. การดำเนินการ

Once installed and keyed, the Falcon CB846 F 626 SFIC 6-Pin Core operates like any standard lock cylinder.

• การล็อค: Insert the operating key into the keyway and rotate it to engage the locking mechanism.
• การปลดล็อค: Insert the operating key into the keyway and rotate it to disengage the locking mechanism.
• การถอดกุญแจ: The key can only be removed when it is in the neutral (vertical) position.

บันทึก: The control key is used only for core removal and installation, not for daily locking/unlocking.

7. การบำรุงรักษา

Regular maintenance helps ensure the smooth and reliable operation of your SFIC core.

• การหล่อลื่น: Apply a small amount of graphite-based lubricant or a silicone-free lock lubricant into the keyway every 6-12 months, or if operation becomes stiff. Avoid oil-based lubricants as they can attract dirt and debris.
• การทำความสะอาด: Keep the keyway free of dirt, dust, and foreign objects. Use compressed air to clear any blockages if necessary.
• การดูแลที่สำคัญ: Do not use bent or damaged keys, as this can damage the internal pinning of the core.
• การตรวจสอบอย่างมืออาชีพ: If the core experiences significant wear, damage, or persistent operational issues, consult a qualified locksmith for inspection and repair.

8 การแก้ไขปัญหา

If you encounter issues with your Falcon CB846 F 626 SFIC 6-Pin Core, refer to the following table:

If troubleshooting steps do not resolve the issue, contact Falcon customer support or a qualified locksmith.

9. ข้อมูลจำเพาะ

10. การรับประกันและการสนับสนุน

Falcon products are manufactured to high standards and are backed by a manufacturer's warranty. For specific warranty details, please refer to the official Falcon webหรือติดต่อฝ่ายบริการลูกค้าโดยตรง โปรดเก็บใบเสร็จรับเงินไว้เป็นหลักฐานการซื้อ

การสนับสนุนลูกค้า:

For technical assistance, troubleshooting, or warranty claims, please contact Falcon customer support:

• Webเว็บไซต์: www.falconlock.com (หมายเหตุ: นี่เป็นเพียงตัวอย่างชั่วคราว URLโปรดตรวจสอบข้อมูลจากผู้ผลิตจริงอีกครั้ง webเว็บไซต์.)
• โทรศัพท์: Refer to the Falcon webเว็บไซต์สำหรับหมายเลขติดต่อในภูมิภาค

When contacting support, please have your product model number (CB846 F 626 SFIC 6-Pin Core) and purchase information readily available.
