UGREEN 20390P10

UGREEN RJ45 Ethernet Coupler Instruction Manual

รุ่น : 20390P10

1. สินค้าหมดview

The UGREEN RJ45 Ethernet Coupler is designed to extend the length of existing Ethernet cables by connecting two male network cables. This female-to-female adapter ensures a secure and stable connection, maintaining signal integrity for various network applications.

It is compatible with Cat5e, Cat6, and Cat7 Ethernet cables and meets Category 6 performance standards (TIA/EIA 568-C.2). The coupler features nickel-plated contacts and a robust design to prevent signal loss and corrosion.

UGREEN RJ45 Coupler connecting two Ethernet cables

Image 1.1: The UGREEN RJ45 Coupler facilitates extending Ethernet cable reach by joining two cables.

2. เนื้อหาบรรจุภัณฑ์

  • UGREEN RJ45 Ethernet Coupler (10-pack)

3. คำแนะนำในการตั้งค่า

Setting up the UGREEN RJ45 Ethernet Coupler is a simple process. Follow these steps to extend your network connection:

  1. เตรียมสายเคเบิล: Ensure you have two male RJ45 Ethernet cables that you wish to connect.
  2. เสียบสายเคเบิลเส้นแรก: Take one Ethernet cable and firmly insert its RJ45 connector into one of the female ports of the UGREEN coupler until you hear a click, indicating it is securely latched.
  3. เสียบสายเคเบิลเส้นที่สอง: Take the second Ethernet cable and firmly insert its RJ45 connector into the remaining female port of the UGREEN coupler until it clicks into place.
  4. ตรวจสอบการเชื่อมต่อ: Gently tug on both cables to ensure they are securely seated and will not easily disconnect.
UGREEN RJ45 Coupler extending an Ethernet cable to a laptop

Image 3.1: The coupler in use, extending an Ethernet cable to a laptop for an extended reach.

Close-up of UGREEN RJ45 Coupler connecting two Ethernet cables

ภาพที่ 3.2: รายละเอียด view of the coupler showing the connection points for two RJ45 Ethernet cables.

4. คู่มือการใช้งาน

Once connected, the UGREEN RJ45 Ethernet Coupler operates passively to extend your network connection. It is designed to maintain high-speed data transmission without significant signal degradation.

  • การส่งผ่านข้อมูล: The coupler supports speeds up to 1 Gigabit per second (1Gbps) when used with Cat6 or Cat7 Ethernet cables.
  • ความเข้ากันได้: It is compatible with various network devices including laptops, personal computers, routers, printers, and smart televisions.
  • การใช้งาน: Suitable for home networking, office environments, and surveillance systems.
User playing video games with UGREEN RJ45 Coupler connected to a TV and console

Image 4.1: The coupler supports stable connections for activities like online gaming and streaming, ensuring no signal loss.

UGREEN RJ45 Coupler connected to various devices like TV, router, PC, switch, hub, and printer

Image 4.2: Illustrates the universal compatibility of the coupler with a range of network-enabled devices.

5. การบำรุงรักษา

To ensure optimal performance and longevity of your UGREEN RJ45 Ethernet Coupler, consider the following maintenance guidelines:

  • รักษาความสะอาด: Periodically inspect the ports for dust or debris. Use a can of compressed air to gently clean the ports if necessary.
  • หลีกเลี่ยงความเครียดทางร่างกาย: Do not bend or pull the connected Ethernet cables excessively, as this can damage the coupler or the cable connectors.
  • จัดเก็บอย่างถูกต้อง: When not in use, store the couplers in a dry, cool place away from direct sunlight and extreme temperatures.
  • จัดการด้วยความระมัดระวัง: Avoid dropping the coupler or subjecting it to strong impacts.

6 การแก้ไขปัญหา

If you encounter issues with your UGREEN RJ45 Ethernet Coupler, try the following troubleshooting steps:

  • ไม่มีการเชื่อมต่อเครือข่าย:
    • Ensure both Ethernet cables are fully inserted into the coupler and clicked into place.
    • Check the integrity of the Ethernet cables themselves by testing them individually or replacing them.
    • Verify that the network devices (router, computer) are functioning correctly.
  • ความเร็วเครือข่ายช้า:
    • Confirm that both connected Ethernet cables are of the appropriate category (Cat5e, Cat6, or Cat7) for your desired speed.
    • Ensure the total length of the extended cable run does not exceed the recommended maximum for your cable category (e.g., 100 meters for Cat6).
    • ทดสอบความเร็วเครือข่ายโดยไม่ใช้ตัวเชื่อมต่อเพื่อแยกแ1ยะปัญหา
  • การเชื่อมต่อไม่ต่อเนื่อง:
    • Check for any loose connections at the coupler or device ports.
    • Inspect the coupler and cable connectors for any visible damage or bent pins.

7. ข้อมูลจำเพาะ

คุณสมบัติรายละเอียด
ยี่ห้อยูกรีน
หมายเลขรุ่น20390P10
ประเภทขั้วต่อRJ45 Female to Female
ความเข้ากันได้Cat5e, Cat6, Cat7 Ethernet Cables
Speed Supportสูงสุดถึง 1 Gbps
ขนาด (กว้าง x ยาว x สูง)1.65 x 0.98 x 0.90 นิ้ว (โดยประมาณ)
วัสดุHigh quality ABS plastic, PBT plastic, Nickel-plated pure copper, Pure copper plated tentacles
สีสีดำ
เป็นไปตามมาตรฐาน RoHSใช่

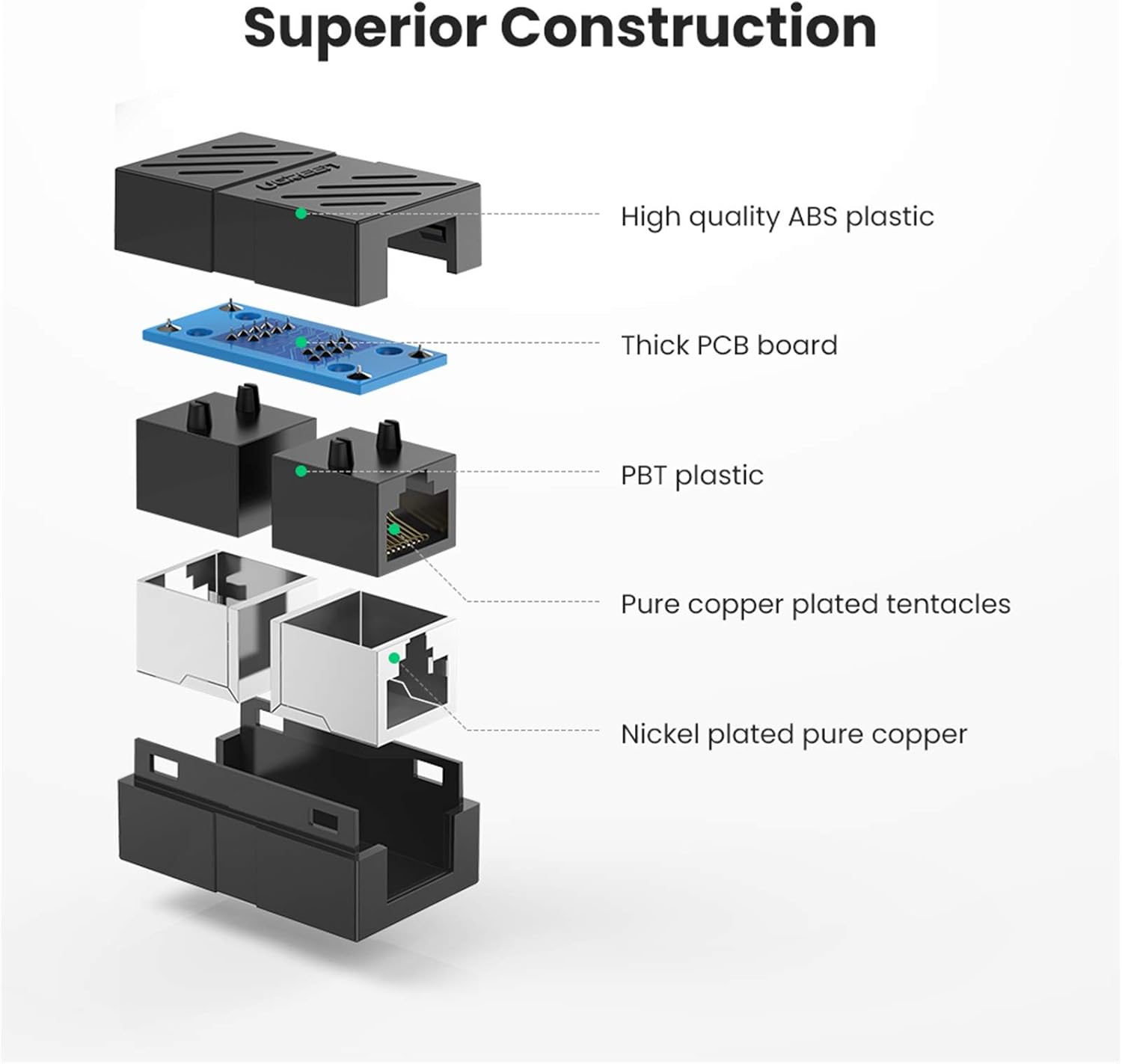

ระเบิด view of UGREEN RJ45 Coupler showing internal components

Image 7.1: An exploded diagram illustrating the superior construction and internal components of the coupler, including ABS plastic, PCB board, PBT plastic, and copper contacts.

UGREEN RJ45 Coupler on a table next to a laptop, showing its compact size

Image 7.2: The compact design of the UGREEN coupler, highlighting its small dimensions for easy integration into any setup.

8. การรับประกันและการสนับสนุน

The UGREEN RJ45 Ethernet Coupler comes with a product warranty. For specific details regarding the warranty period and terms, please refer to the packaging or visit the official UGREEN webเว็บไซต์.

หากต้องการการสนับสนุนด้านเทคนิค การสอบถามผลิตภัณฑ์ หรือการเรียกร้องการรับประกัน โปรดติดต่อฝ่ายบริการลูกค้าของ UGREEN ผ่านทางทางการ webเว็บไซต์หรือข้อมูลการติดต่อที่ให้มาพร้อมกับการซื้อของคุณ

UGREEN อย่างเป็นทางการ Webเว็บไซต์: www.ugreen.com

© 2026 UGREEN สงวนลิขสิทธิ์
