Vollmer 45601 Factory on Fire HO Scale Model Structure Instruction Manual

1. บทนำ

This manual provides detailed instructions for the assembly and operation of your Vollmer 45601 Factory on Fire HO Scale Model Structure. This model kit allows you to create a realistic diorama featuring a factory building with a simulated fire effect, complete with flickering lights and options for weathering.

Please read these instructions carefully before beginning assembly to ensure proper construction and safe operation.

2. ข้อมูลด้านความปลอดภัย

• คำเตือน: This product is a model building kit and not a toy. It is designed for collectors and hobbyists over the age of 14.
• เก็บชิ้นส่วนขนาดเล็กให้พ้นมือเด็กเพื่อป้องกันอันตรายจากการสำลัก
• Use appropriate ventilation when working with adhesives, paints, and other modeling materials (not included).
• Handle electrical components with care. Ensure power is disconnected before making any electrical connections.

3. เนื้อหาบรรจุภัณฑ์

เมื่อเปิดบรรจุภัณฑ์ โปรดตรวจสอบว่ามีส่วนประกอบทั้งหมดอยู่ครบ:

• Unassembled plastic model kit parts for the factory structure.
• 2 x Red flickering light bulbs.
• Color tablets (Black and White) for weathering effects.
• Detailed assembly instructions with illustrations.

บันทึก: Adhesives (cement), paints, and additional tools required for assembly are not included and must be purchased separately.

4. คำแนะนำในการประกอบ

The Vollmer 45601 is an unassembled plastic model kit. Follow the included detailed illustrations and step-by-step instructions for proper construction.

4.1 เครื่องมือและวัสดุที่จำเป็น (ไม่รวม)

• Plastic model cement/adhesive.
• Hobby knife or sprue cutters.
• เล็ก files or sandpaper for cleaning parts.
• Paints (optional, for additional detailing).

4.2 ขั้นตอนการประชุมสมัชชาใหญ่

1. Carefully remove all plastic parts from the sprues using a hobby knife or sprue cutters.
2. Clean any excess plastic (flash) from the parts using a hobby knife or small file.
3. Dry-fit parts before applying adhesive to ensure proper alignment.
4. Apply plastic cement sparingly to the joining surfaces and press parts together firmly. Allow sufficient drying time.
5. Follow the numbered steps and diagrams provided in the separate instruction sheet for specific assembly sequences.
6. Integrate the flickering light bulbs into the designated areas as shown in the assembly diagrams.
7. Use the black and white color tablets to create smoke and soot effects for a realistic "on fire" appearance, following the instructions for weathering.

รูปที่ 1 : ด้านหน้า view of the Vollmer 45601 Factory on Fire HO Scale Model Kit packaging. This image displays the completed model on a diorama, illustrating the intended "on fire" effect with smoke and flickering lights.

5. Operating Instructions (Flickering Lights)

The "Factory on Fire" model includes two red flickering light bulbs to simulate a fire. To operate these lights:

1. Ensure the flickering light bulbs are correctly installed within the model structure as per the assembly instructions.
2. Connect the wiring from the flickering lights to a suitable power source. The operating voltage for these lights is 14 – 16 Volts AC/DC.
3. Use a model railway transformer or a dedicated power supply that provides the specified voltage.
4. Once connected to the power source, the red bulbs will illuminate with a flickering effect, simulating a fire.

คำเตือน: ไม่เกินปริมาตรที่กำหนดtage (14-16V AC/DC) as this may damage the light bulbs or other components.

6. การบำรุงรักษา

• Keep the model clean by gently dusting with a soft brush or compressed air.
• Avoid exposing the model to direct sunlight or extreme temperatures, which can cause plastic to warp or colors to fade.
• If a flickering bulb needs replacement, ensure you use a bulb with the same specifications (14-16V, red flickering type).

7 การแก้ไขปัญหา

7.1 Flickering Lights Not Working

• ตรวจสอบการเชื่อมต่อพลังงาน: Ensure the power supply is connected correctly and providing the specified 14-16V AC/DC.
• ตรวจสอบสายไฟ: Verify all wires are securely connected and there are no breaks or short circuits.
• ตรวจสอบหลอดไฟ: The bulbs may be faulty or burnt out. Replace them if necessary.

7.2 Parts Not Fitting Correctly

• ชิ้นส่วนที่สะอาด: Ensure all parts are free of sprue nubs or flash.
• Dry-Fit: Always dry-fit parts before applying adhesive. If a part doesn't fit, re-check the assembly diagram.
• ปฐมนิเทศ: Verify that parts are oriented correctly according to the instructions.

8. ข้อมูลจำเพาะ

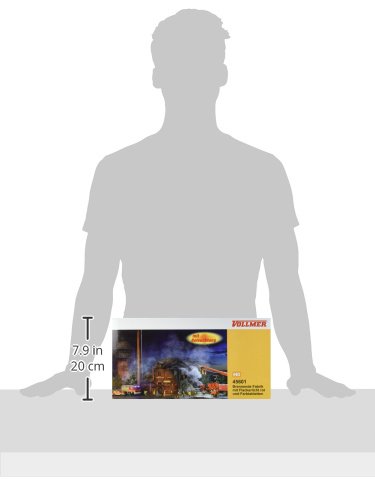

Figure 2: Packaging of the Vollmer 45601 model kit, showing the product box with approximate dimensions. The box itself measures approximately 7.9 inches (20 cm) in length.

9. การรับประกันและการสนับสนุน

Specific warranty information for the Vollmer 45601 Factory on Fire HO Scale Model Structure is not provided in the product data. For any support inquiries, missing parts, or warranty claims, please contact the manufacturer, Vollmer, directly or refer to their official webเว็บไซต์สำหรับรายละเอียดการติดต่อฝ่ายบริการลูกค้า

ผู้ผลิต Webเว็บไซต์: www.vollmer-online.de
