EVERTECH 9-Channel 12V DC 5A Power Supply Distribution Box (Model EV-PB09-05P)

การแนะนำ

This manual provides essential information for the safe and efficient operation of your EVERTECH 9-Channel 12V DC 5A Power Supply Distribution Box, model EV-PB09-05P. This unit is designed to provide stable 12V DC power to multiple devices, such as CCTV security cameras, DVRs, and LED lights, offering centralized power management and protection.

ข้อมูลด้านความปลอดภัย

• ความเสี่ยงจากไฟฟ้าช็อต: Do not open the cover. Refer all servicing to qualified personnel.
• ตรวจสอบให้แน่ใจว่าได้ตัดการเชื่อมต่อแหล่งจ่ายไฟจากเต้ารับไฟฟ้ากระแสสลับก่อนการติดตั้งหรือการบำรุงรักษา
• Install the enclosure in a protected location, away from moisture and water.
• ตรวจสอบปริมาณอินพุตและเอาต์พุตtage requirements of connected devices to prevent damage.
• The unit features short-circuit protection, over-current protection, and high-voltage protection. However, proper installation is crucial for safety.

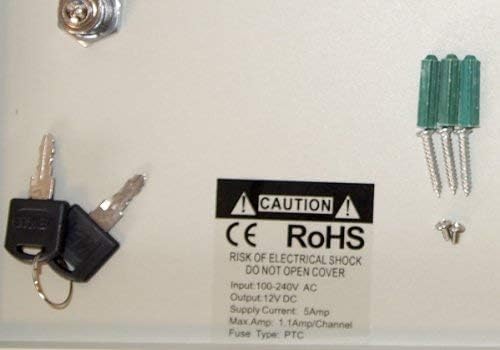

Image: Close-up of the internal caution label, indicating 'RISK OF ELECTRICAL SHOCK DO NOT OPEN COVER', along with the included keys for the lock.

เนื้อหาแพ็คเกจ

ตรวจสอบว่ามีรายการทั้งหมดอยู่ในแพ็คเกจ:

• 1x EVERTECH 9-Channel 12V DC 5A Power Supply Distribution Box
• สายไฟ AC 1x
• 2x Keys for Door Lock
• Wall Mounting Screws and Plastic Anchors
• Screws for Locking Case Lid
• Drill Template (for mounting)

Image: A visual representation of the accessories included with the power supply box, such as the AC power cord, keys, wall mounting hardware, and a drill template.

สินค้าเกินview

The EVERTECH 9-Channel Power Supply Distribution Box is designed for centralized power distribution to multiple 12V DC devices. It features a robust metal housing with a key lock for security and individual PTC resettable fuses for each output channel.

คุณสมบัติภายนอก

ภาพ: ด้านหน้า view of the power supply box, highlighting the red LED for AC power status, green LED for DC power status, and the key lock mechanism.

• ไฟ LED สีแดง: ระบุสถานะไฟ AC
• ไฟ LED สีเขียว: Indicates DC power status.
• ล็อคกุญแจ: Secures the enclosure to prevent unauthorized access.

ส่วนประกอบภายใน

ภาพ: ภายใน view of the power distribution board, showing the main fuse, individual PTC resettable fuses (PTC1-PTC9), and the 9 output terminal pairs.

• สวิตช์ไฟหลัก: Controls the overall power to the distribution board.
• Individual PTC Resettable Fuses: Nine fuses, one for each output channel, providing overload and short-circuit protection.
• ขั้วเอาท์พุท: Nine pairs of terminals for connecting 12V DC devices.

ภาพ: ด้านข้าง view of the power supply box, showing the standard AC power input port for connecting the included 3-prong AC power cord.

การติดตั้งและการตั้งค่า

Follow these steps for proper installation of your power supply box:

1. เลือกตำแหน่ง: Mount the enclosure in a protected area, out of sight and protected from moisture and water.
2. เตรียมการเดินสายไฟ: Knock out the appropriate conduit holes (knockouts) on the enclosure for running your camera or device cables.
3. ติดตั้งกล่อง: Use the provided drill template, screws, and plastic anchors to securely mount the power box to a wall or suitable surface.
4. เชื่อมต่ออุปกรณ์: Ensure the main power switch inside the box is in the "OFF" position. Connect each 12V DC device's power cable to an individual output terminal pair on the distribution board. Observe correct polarity (positive to positive, negative to negative).
5. เชื่อมต่อไฟ AC: Plug the 3-prong AC power cord into the AC inlet on the side of the power box, then connect the other end to a standard AC 100-240V, 50/60Hz power outlet.
6. ยึดฝาครอบให้แน่น: Close the cover and secure it with the provided screws and the key lock.

Image: Diagram showing basic installation instructions and wiring connections for the DC 12V Power Supply, located on the inside lid of the enclosure.

คำแนะนำการใช้งาน

1. After completing the installation and wiring, ensure all connections are secure.
2. Turn the main power switch inside the box to the "ON" position.
3. The green LED light on the front cover should illuminate, indicating active DC power output. The red LED light should also be on, indicating AC input power.
4. Your connected 12V DC devices should now receive power.

บันทึก: Each channel distributes 12V DC at up to 1 Amp when all channels are in use, with a total output of 5 Amps for the entire unit.

การซ่อมบำรุง

• Keep the power supply box clean and free from dust. Use a dry cloth for cleaning.
• ตรวจสอบการเชื่อมต่อสายไฟทั้งหมดเป็นระยะเพื่อให้แน่ใจว่ามีความปลอดภัย
• Do not obstruct the ventilation slots on the side of the enclosure to ensure proper air cooling.
• The individual PTC resettable fuses automatically reset after an overload or short-circuit condition is resolved. If a device repeatedly triggers a fuse, inspect the device and its wiring for faults.

Image: Diagram illustrating the dimensions of the power supply box: Length (L) 200mm (7.87"), Width (W) 60mm (2.36"), Height (H) 235mm (9.25").

การแก้ไขปัญหา

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

For warranty information or technical support, please refer to the contact details provided by your retailer or visit the official Evertech webไซต์ โปรดเก็บใบเสร็จรับเงินไว้เป็นหลักฐานการซื้อ

Manufacturer: EVERTECH

Model Number: EV-PB09-05P

UPC: 796762326648
